Inspection Procedure
- CHECK MANUAL UP/DOWN FUNCTION (DRIVER SIDE)
- Check that the power window manual UP/DOWN function operates normally.
NG: OTHER PROBLEM (See MANUAL UP/DOWN FUNCTION DOES NOT OPERATE ON DRIVER SIDE )
OK: GO TO NEXT STEP

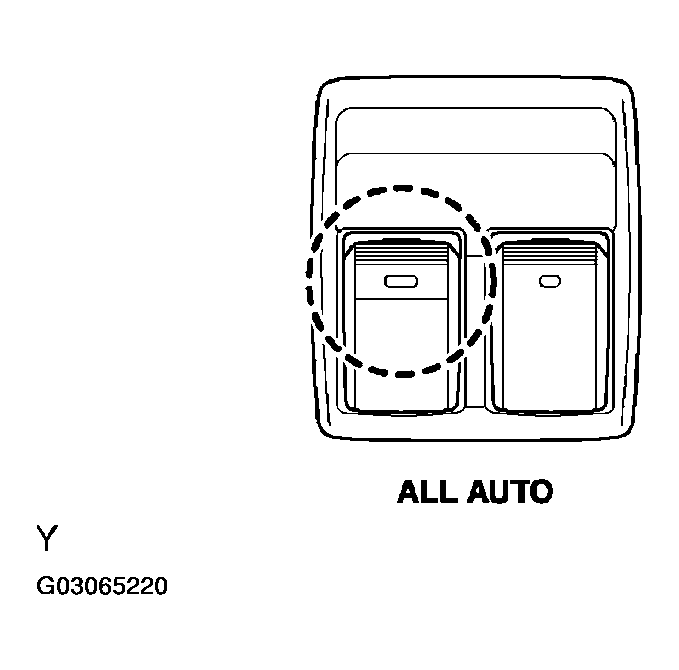

- CHECK LAMP OF POWER WINDOW REGULATOR MASTER SWITCH (DRIVER SIDE SWITCH)
- Turn the ignition switch ON.
- Operate the driver side switch on the master switch.
- Check the blinking pattern of the AUTO lamp as shown in Fig 2
.
- If pattern (1) or (3) is displayed, proceed to A.
- If pattern (2) is displayed, proceed to B.
- If the normal pattern is displayed, proceed to C.
