NOTE: "Cold" and "Hot" in this section mean the temperature of the coils themselves. "Cold" is from -10°C (14°F) to 50 °C (122 °F) and "Hot" is from 50 °C (122 °F) to 100 °C (212 °F).

INSPECT IGNITION COIL (WITH IGNITER) AND SPARK TEST
1. Check for DTCs.
  NOTE: If a DTC is present, perform a troubleshooting in accordance with the procedure for that DTC.
2. Check that spark occurs.
  1. Remove the cylinder head cover No. 2. (See CYLINDER HEAD ASSY )
  2. Remove the ignition coils (with igniter).
  3. Using a 16 mm (0.63 in) plug wrench, remove the spark plugs.
  4. Install the spark plugs to each ignition coil (with igniter) and connect the ignition coil connectors.
  5. Disconnect the 4 injector connectors.
  6. Ground the spark plugs.
  7. Check if spark occurs while engine is being cranked.
  NOTE:
  - Be sure to ground the spark plug when checking.
  - Replace the ignition coil when it is given physical impact.
  - Do not crank the engine for more than 2 seconds.
  If the spark does not occur, do the test as follows.

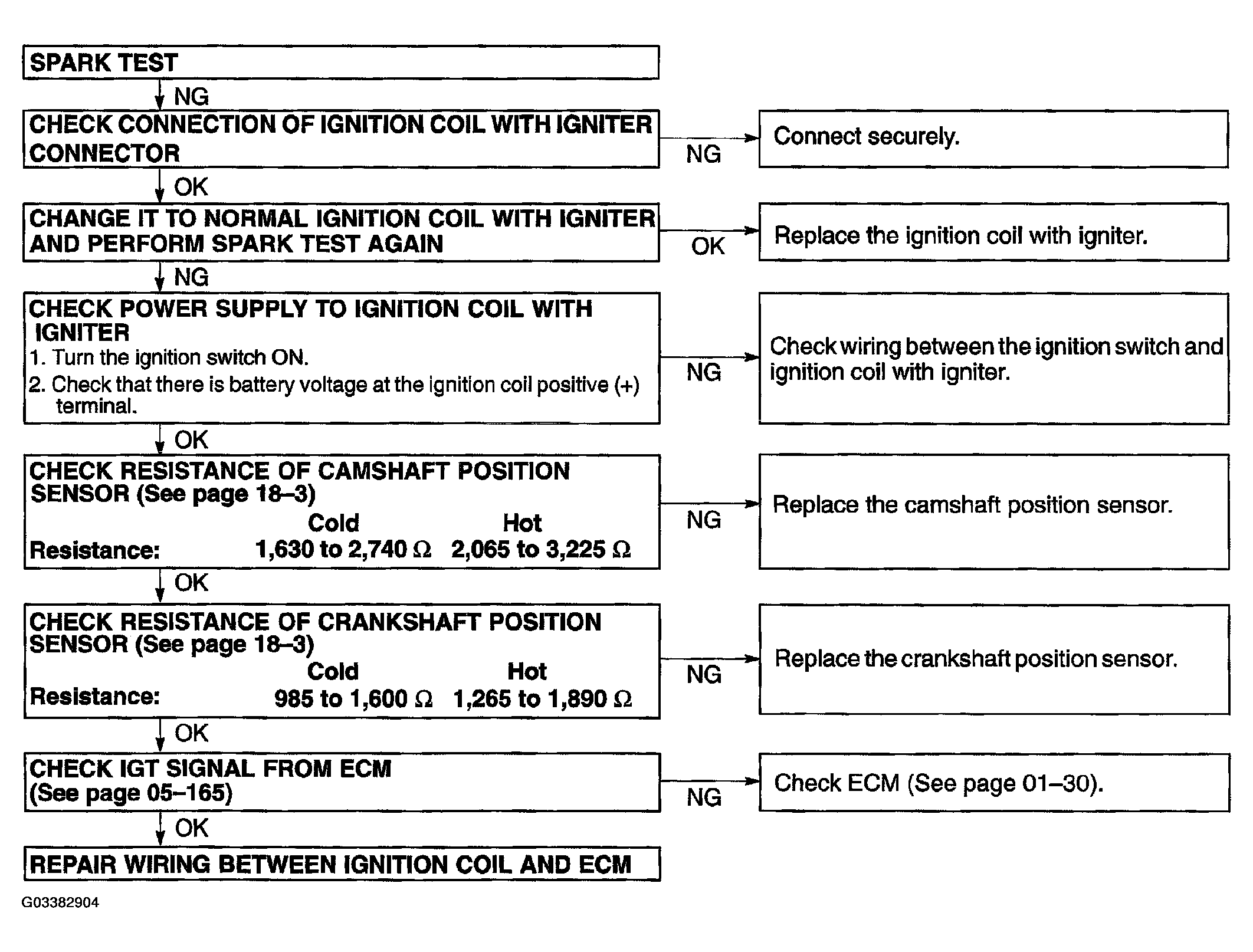

  Fig 1: Ignition System Flow chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using a 16 mm (0.63 in.) plug wrench, install the spark plugs.
  Torque: 18 N.m (184 kgf.cm, 13 ft.lbf)
4. Install the ignition coil with igniter.
  Torque: 9.0 N.m (92 kgf.cm, 80 in.lbf)
5. Install the cylinder head cover No. 2. (See CYLINDER HEAD ASSY )
