2004 Scion xA AutomaticFACTORY OEM SERVICE PROCEDURE

Engine Mechanical (Inspection): Engine: Inspection

INSPECT ENGINE COOLANT
INSPECT ENGINE OIL
INSPECT BATTERY
INSPECT AIR CLEANER FILTER ELEMENT SUB-ASSY
INSPECT SPARK PLUG (See INSPECTION )
INSPECT V-RIBBED BELT
1. Check the V-ribbed belt deflection.
  1. Measure the belt deflection
    Pressing force: 98 N (10 kgf, 22lbf)

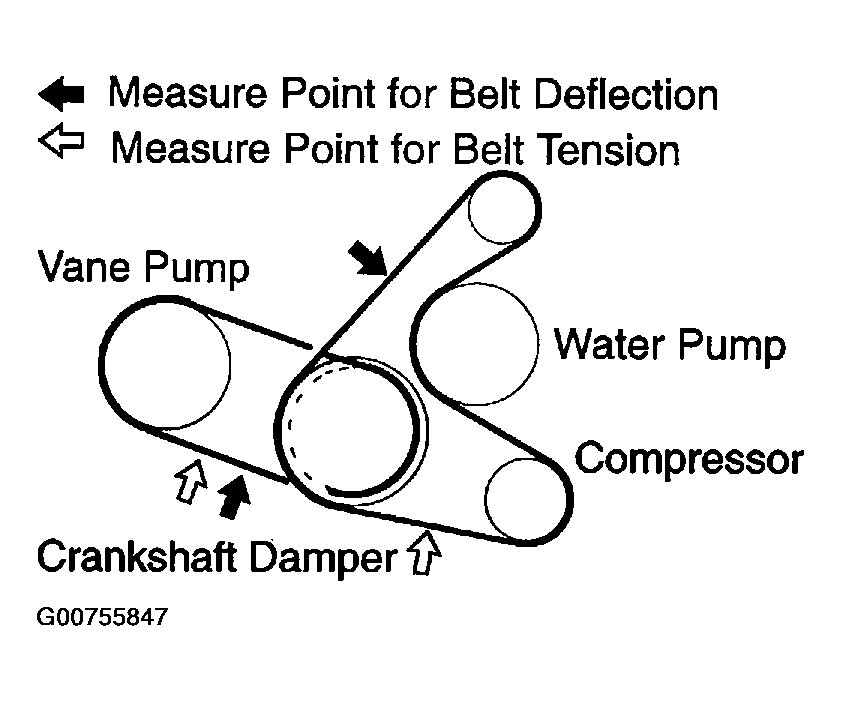

    Fig 1: Inspecting V-Ribbed Belt
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Belt tension

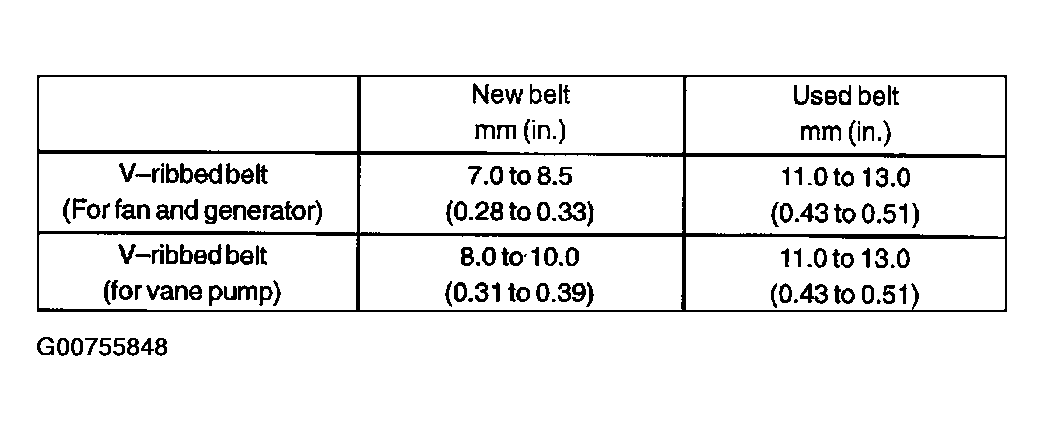

    Fig 2: V-Ribbed Belt Deflection Table
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

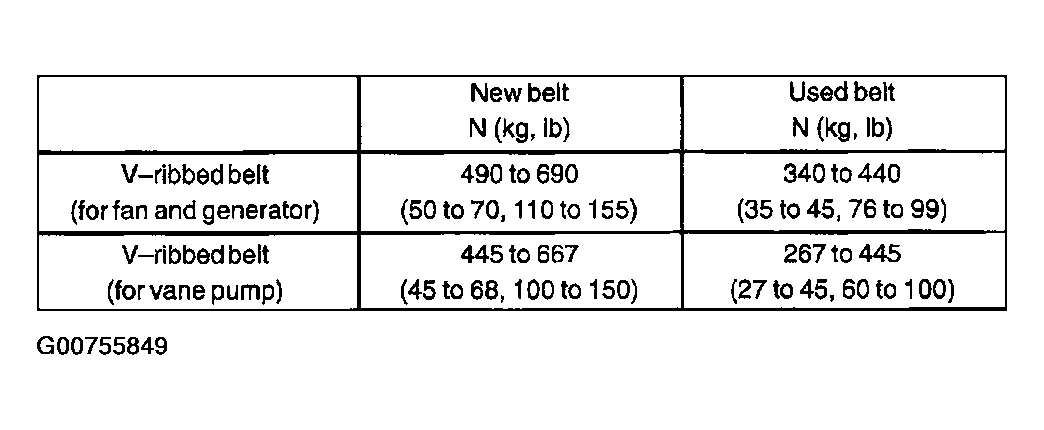

Fig 3: V-Ribbed Belt Tension Table
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
