2004 Scion xA AutomaticFACTORY OEM SERVICE PROCEDURE

Inspection Procedure

NOTE: Troubleshoot each trouble symptom in accordance with the chart below.
INSPECTION PROCEDURE

MIL Remains On Start Inspection From Step 1
MIL Is Not Illuminated Start Inspection From Step 3
  1. CLEAR DTC
    1. Connect the hand-held tester or the OBD II scan tool to the DLC 3.
    2. Turn the ignition switch ON and push the hand-held tester or the OBD II scan tool main switch ON.
    3. Read the DTC (See DTC CHECK/CLEAR ).
    4. Clear the DTC (See DTC CHECK/CLEAR ).
    5. Check that MIL is not illuminated.

      Standard: MIL is not illuminated

    1. OK : REPAIR CIRCUIT INDICATED BY OUTPUT CODE (See  DIAGNOSTIC TROUBLE CODE CHART  )
    2. NG : Go to next step.
  2. CHECK HARNESS AND CONNECTOR (CHECK FOR SHORT IN WIRE HARNESS)

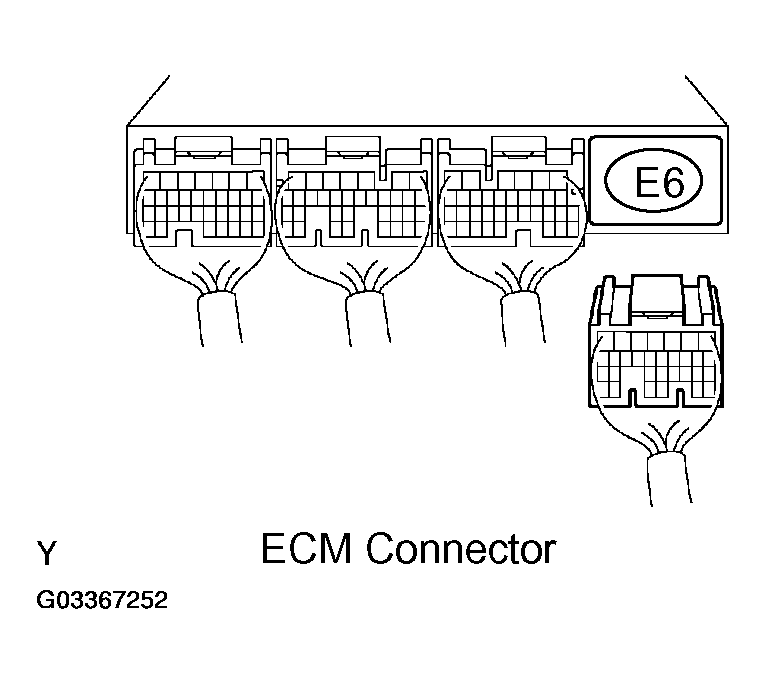

    Fig 1: Checking Harness & Connector (Check For Short In Wire Harness)
    G03367252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the E6 ECM connector.
    2. Turn the ignition switch ON.
    3. Check that MIL is not illuminated.

      Standard: MIL is not illuminated

    4. Reconnect the ECM connector.
    1. OK : REPLACE ECM (See  REPLACEMENT  )
    2. NG : CHECK AND REPAIR HARNESS AND CONNECTOR (COMBINATION METER - ECM)
  3. CHECK THAT MIL IS ILLUMINATED
    1. Check that MIL is illuminated when turning the ignition switch ON.

      Standard: MIL is illuminated

    1. OK : SYSTEM OK
    2. NG : Go to next step.
  4. INSPECT COMBINATION METER ASSY (MIL CIRCUIT)
    1. See the HOW TO PROCEED WITH TROUBLESHOOTING .
    1. NG : REPAIR OR REPLACE BULB OR COMBINATION METER ASSEMBLY
    2. OK : CHECK AND REPAIR HARNESS AND CONNECTOR (COMBINATION METER - ECM)
