2004 Scion xA AutomaticFACTORY OEM SERVICE PROCEDURE
On-Vehicle Inspection
- CHECK FUEL PRESSURE
- Discharge the fuel system pressure and take precautions against possible fuel spillage. (See FUEL SYSTEM )
- Check the battery voltage is above 11 V.
- Disconnect the negative (-) battery cable.

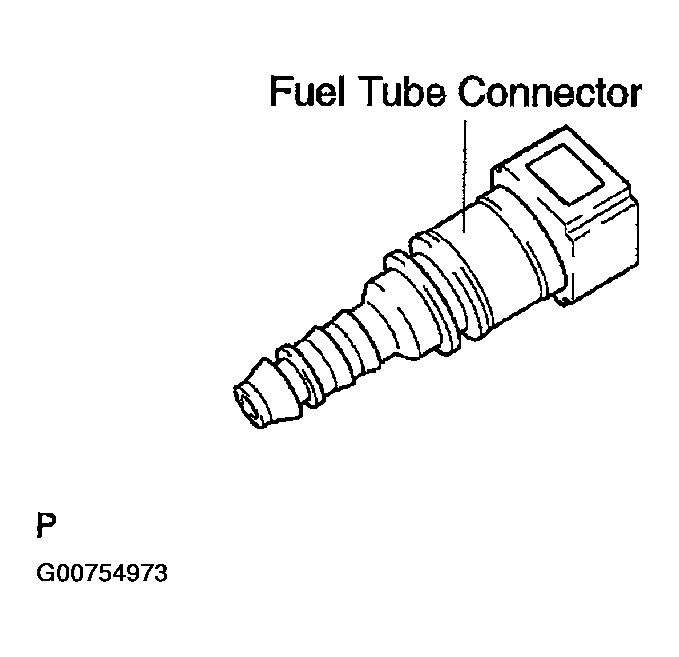

- Pull out of the connector from a new fuel tube.
HINT:
Part No. 23901-22130

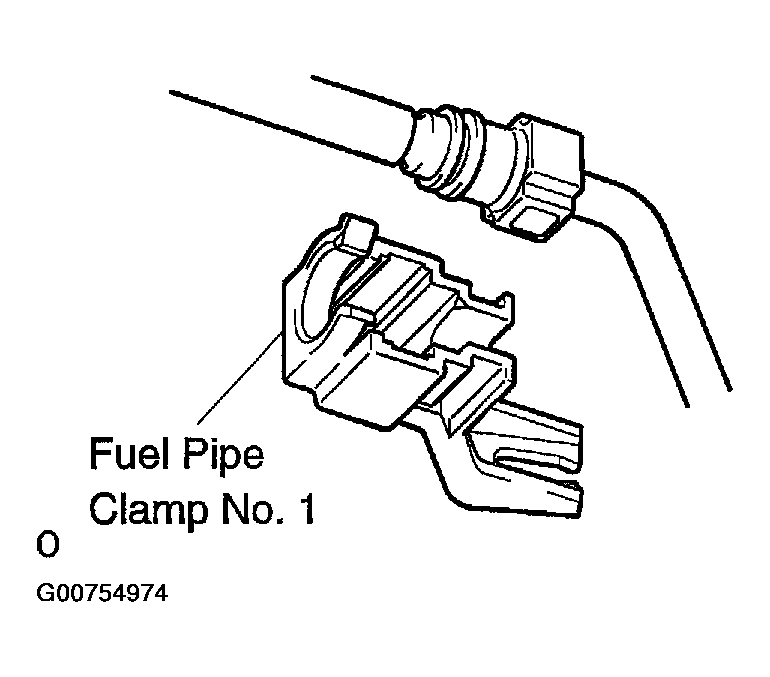

- Disconnect the fuel tube clamp from the fuel tube connector.
- Disconnect the fuel tube connector from the fuel pipe by pinching part A with your fingers as shown in the illustration.CAUTION:
- Do not disconnect any fuel connectors until discharging the fuel system pressure and taking appropriate steps to prevent or contain fuel spillage.
- There may be retained pressure in the fuel lines even after discharging the pressure. Take precautions to prevent fuel spray on you or inside the engine compartment.
