Speed Sensor Front LH: Replacement
HINT:
Overhaul the RH following the same procedures as for the LH.
- REMOVE FRONT WHEEL
- REMOVE BATTERY
- REMOVE SPEED SENSOR FRONT LH

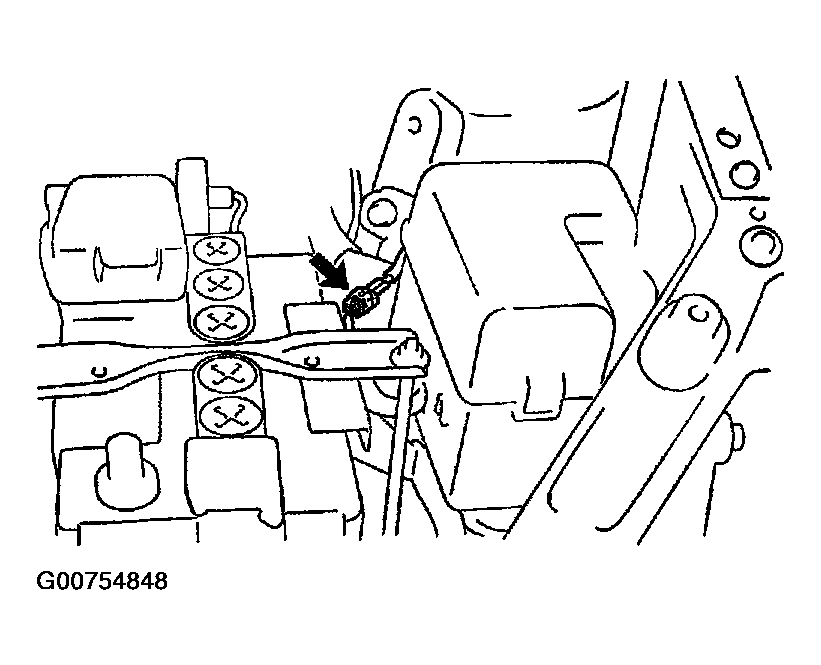

- Disconnect the speed sensor connector.

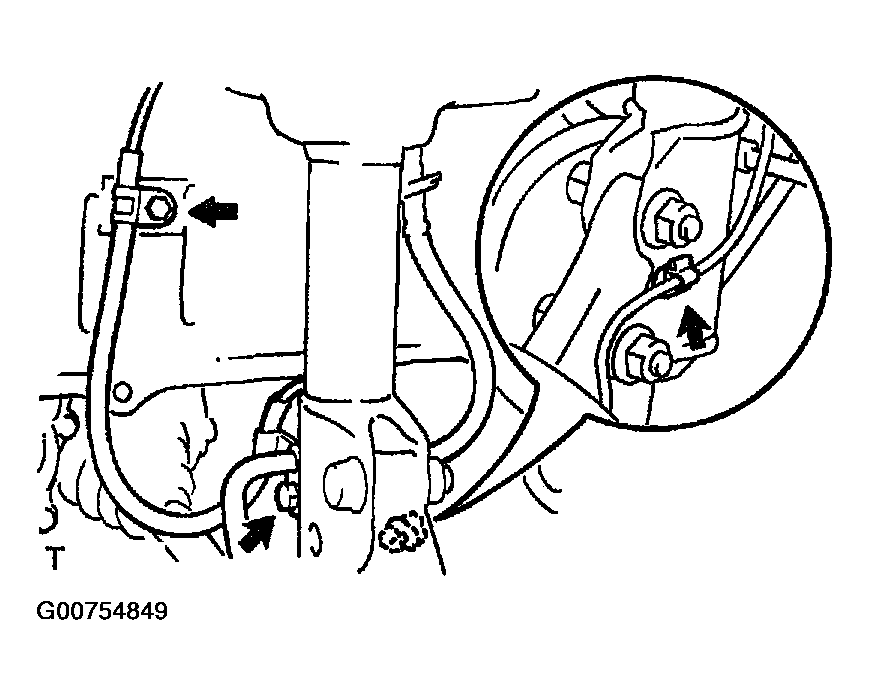

- Remove the 2 clamp bolts holding the speed sensor wire harness from the body and the shock absorber.
- Disconnect the resin clip and the speed sensor wire harness from the shock absorber.
- Remove the bolt and the speed sensor front LH.
NOTE: Prevent foreign matter from attaching to the sensor tip.
