2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE
Onstar Button Assembly (UE1)
Onstar Button Assembly (UE1)

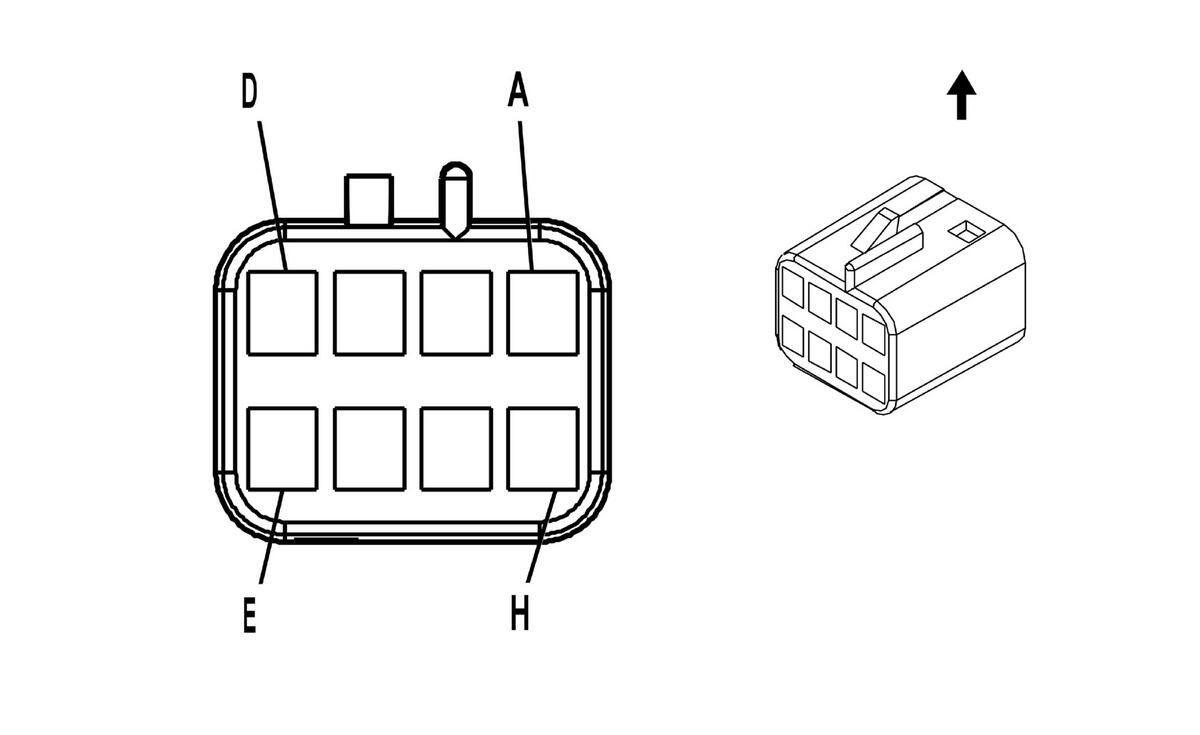

| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.35 L-GN/BK | 2515 | 5-Volt Reference |
| B | 0.35 D-GN/WH | 2514 | Keypad Signal |
| C-D | - | - | Not Used |
| E | 0.35 BK | 650 | Ground |
| F | 0.35 YE/BK | 2516 | Keypad Green LED Signal |
| G | 0.35 BN/WH | 2517 | Keypad Red LED Signal |
| H | - | - | Not Used |
