2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

Inflatable Restraint Passenger Presence System (PPS) Module (-APL)

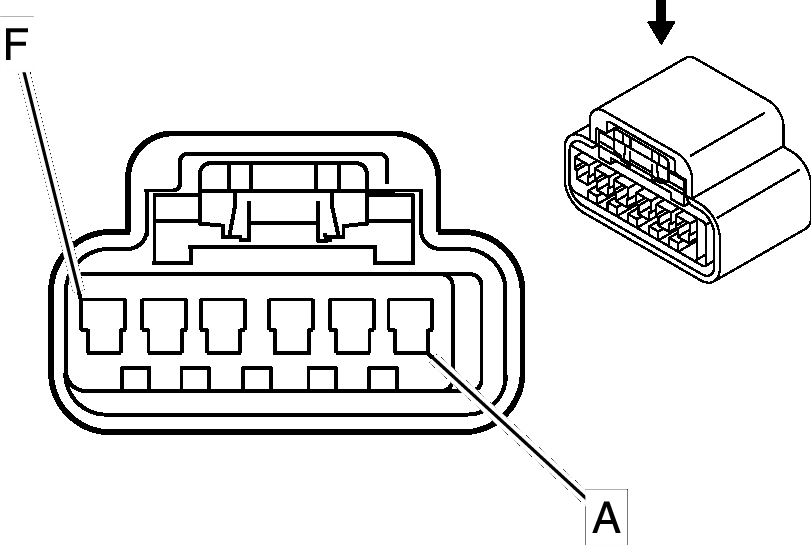

Fig 1: Inflatable Restraint Passenger Presence System (PPS) Module (-APL) Connector End View
GM831380Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Passenger Presence System (PPS) Module (-APL)

Pin Wire Circuit Function
A 0.5 RD/WH 740 Battery Positive Voltage
B 0.5 D-GN 5060 Low Speed GMLAN Serial Data
C - - Not Used
D 0.5 BK/WH 851 Ground
0.5 BK/WH 851 Ground
E 0.5 PU 5611 BTS Sensor Signal
F 0.5 L-BU 5612 5-Volt Reference
Connector Part Information
  • OEM: 15332141
  • Service: 15332141
  • Description: 6-Way F GT 150 Series (BK)
Terminal Part Information
  • Terminal/Tray: Service with Pigtail
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: 15315247/J-35616-2A (GY)
