2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

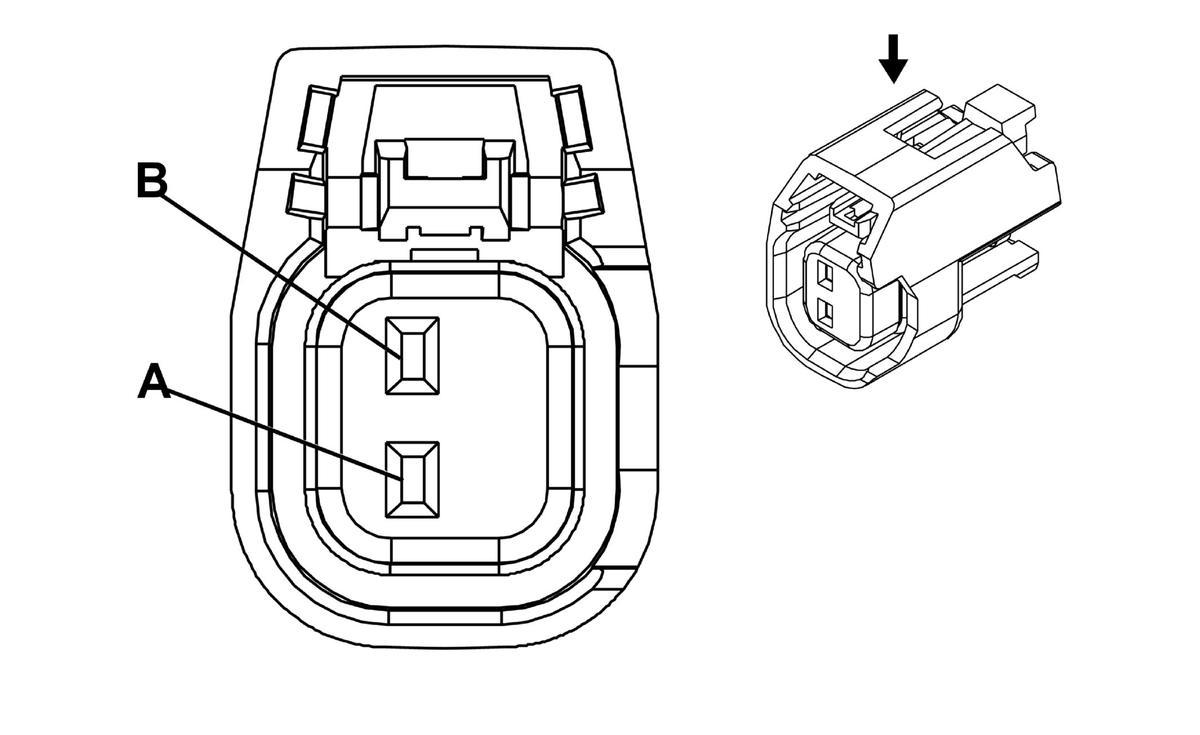

Starter Generator Control Module Coolant Pump (HP7)
Starter Generator Control Module Coolant Pump (HP7)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.5 RD/WH | 2940 | Battery Positive Voltage |
| B | 0.8 L-GN/BK | 6554 | Water Pump Control Circuit |
Connector Part Information
|
Terminal Part Information
|
