2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

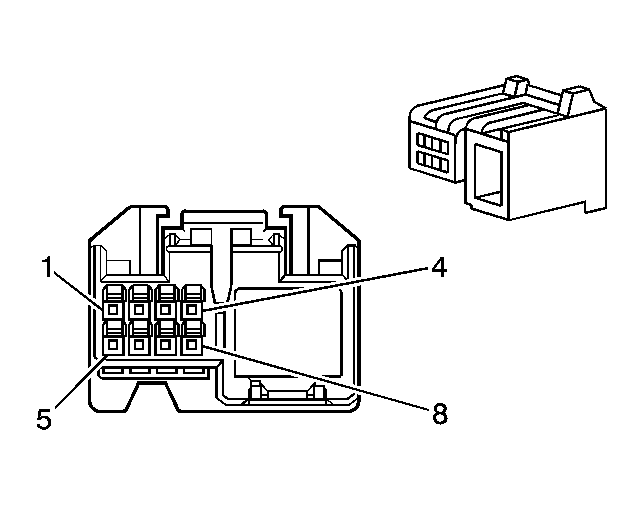

Electric Power Steering (EPS) Module X3 (LAT/LE5/LE9)
Electric Power Steering (EPS) Module X3 (LAT/LE5/LE9)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | GY | - | Torque Sensor GND |
| 2 | WH | - | Torque Sensor Exciting GND |
| 3 | - | - | Not Used |
| 4 | D-GN | - | Torque Sensor Exciting |
| 5 | L-BU | - | Torque Sensor Output Shaft Side COS |
| 6 | YE | - | Torque Sensor Output Shaft Side SN |
| 7 | BK | - | Torque Sensor Input Shaft Side COS |
| 8 | PK | - | Torque Sensor Input Shaft Side SN |
Connector Part Information
|
Terminal Part Information
|
Factory Service Tools
