2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE
OnStar Button Assembly Replacement

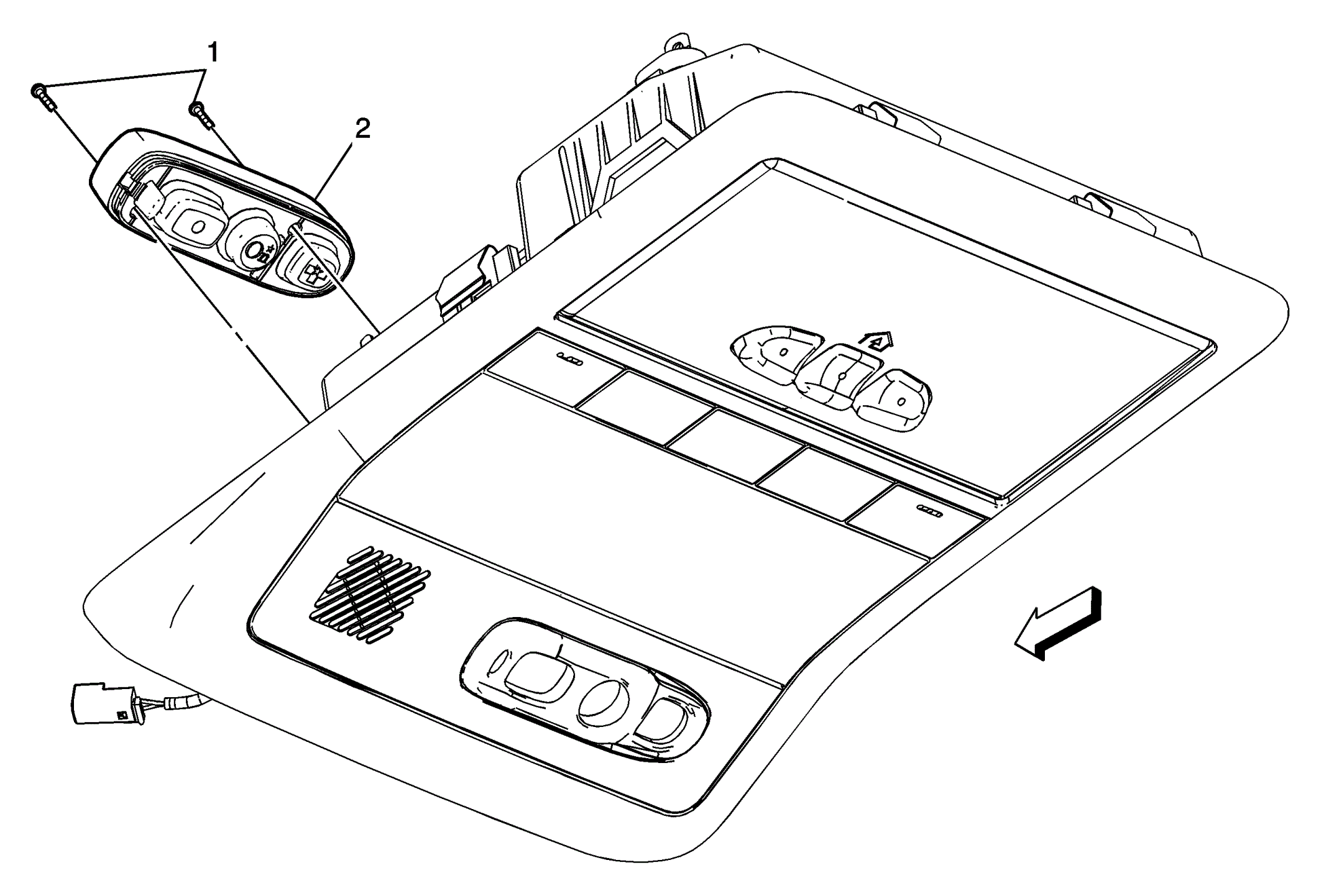

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the roof console assembly. Refer to Roof Console Replacement . |
|
| 1 | Communication Center Call Switch Screw (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2 N.m (18 lb in) |
| 2 | Communication Center Call Switch Assembly Procedure
|
