2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

Fuse Block - I/P X1

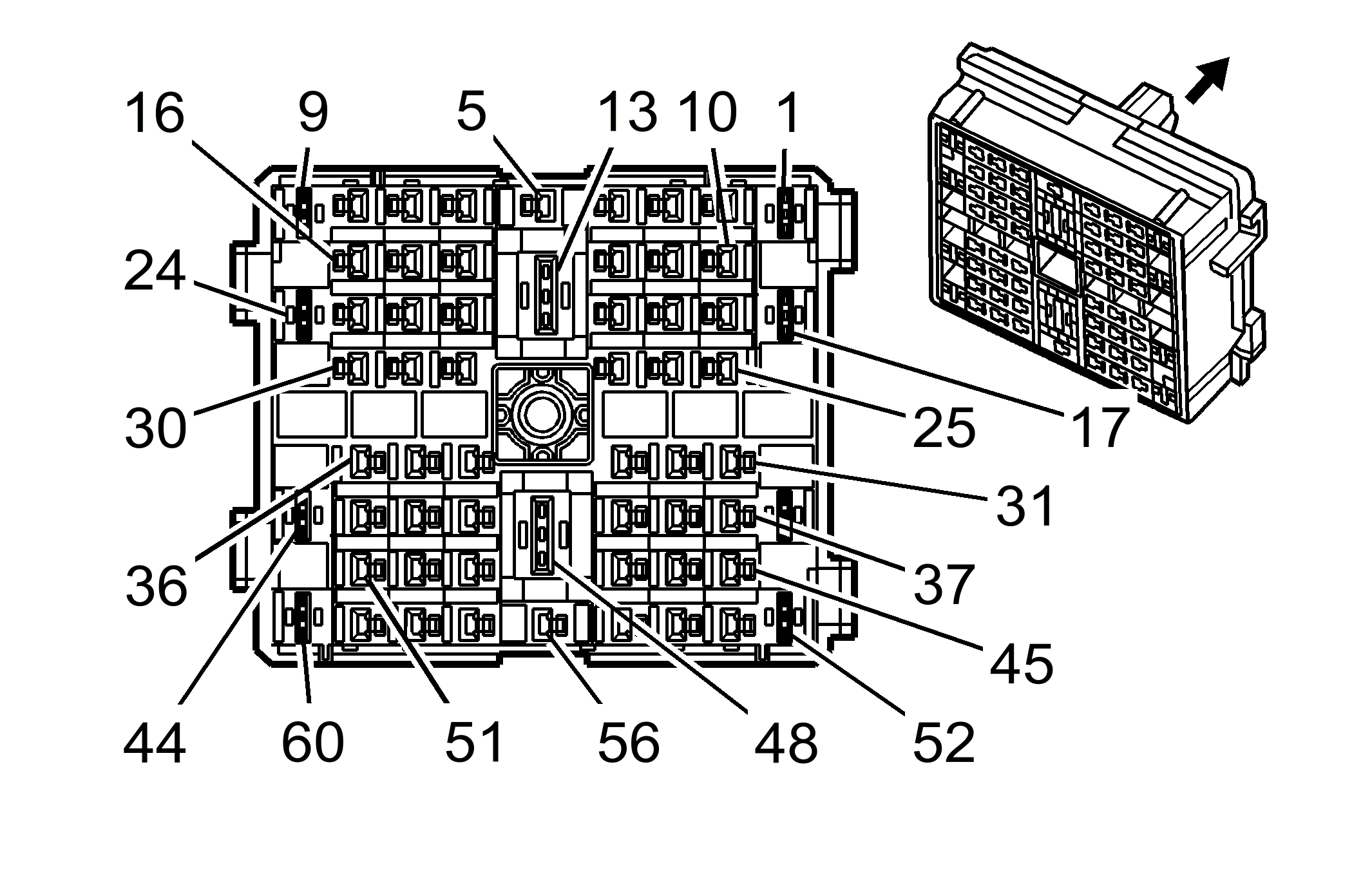

Fig 1: Fuse Block - I/P X1 Connector End View
GM1835062Courtesy of GENERAL MOTORS CORP.
Fuse Block - I/P X1

Pin Wire Circuit Function
1 2 YE 643 Accessory Voltage
2 - - Not Used
3 0.35 TN 28 Horn Relay Control
4 0.5 GY 589 DRL Resistor Supply Voltage
5 0.35 L-BU 1344 Trunk Release Relay Control
6 0.35 BN 253 Trunk Release Relay Control
7 - - Not Used
8 0.35 BN 41 Ignition 3 Voltage (KA1)
0.35 BN 41 Ignition 3 Voltage (KA1)
9-10 - - Not Used
11 0.35 TN 28 Horn Relay Control
12 - - Not Used
13 5 RD/WH 2040 Battery Positive Voltage
14 0.8 RD/WH 3140 Battery Positive Voltage
15 0.5 RD/WH 1840 Battery Positive Voltage (U2K)
16 0.35 BN 41 Ignition 3 Voltage (AE8)
17 2 YE 743 Accessory Voltage
2 YE 743 Accessory Voltage
18 0.35 PK 239 Ignition 1 Voltage
19 0.5 PK 339 Ignition 1 Voltage
0.5 PK 339 Ignition 1 Voltage (HP5)
20 0.5 OG 228 Windshield Washer Pump Control
21 0.8 RD/WH 1240 Battery Positive Voltage
22 - - Not Used
23 0.5 L-BU 6128 Rear Closure Unlatch Motor Unlatch Control
24 0.8 BN 141 Ignition 3 Voltage
25 0.35 YE 5199 Run/Crank Relay Coil Control
26-27 - - Not Used
28 0.8 RD/WH 1340 Battery Positive Voltage
29-30 - - Not Used
31 0.35 TN 755 RAP Relay Coil Control
32 0.5 PK 639 Ignition 1 Voltage
33 0.35 L-GN/BK 592 DRL Relay Control
34 0.8 RD/WH 1440 Battery Positive Voltage
35 - - Not Used
36 0.5 RD/WH 1940 Battery Positive Voltage (CE1)
37 0.8 RD/WH 2640 Battery Positive Voltage
38 - - Not Used
39 0.8 RD/WH 2840 Battery Positive Voltage
40-41 - - Not Used
42 0.8 RD/WH 1540 Battery Positive Voltage
43 0.35 OG 2268 Windshield Washer Relay Control
44 2 RD/WH 2940 Battery Positive Voltage
45 0.35 YE 143 Accessory Voltage
0.35 YE 143 Accessory Voltage (HP5)
46 0.5 YE 343 Accessory Voltage
47 0.5 GY 295 Door Lock Actuator Lock Control
48 6 RD/WH 140 Battery Positive Voltage
49 0.5 TN 294 Door Lock Actuator Unlock Control
50 0.5 RD/WH 2540 Battery Positive Voltage
51 0.8 RD/WH 2740 Battery Positive Voltage
52 2 RD/WH 440 Battery Positive Voltage (AE8)
53 - - Not Used
54 0.35 L-BU 5921 Driver Door Unlock Relay Control
55 0.5 TN 694 Driver Door Lock Actuator Unlock Control
56 0.35 L-BU 195 Door Lock Control
57 0.8 BK 450 Ground
58 0.35 WH 194 Door Unlock Control
59-60 - - Not Used
Connector Part Information
  • OEM: 13579292
  • Service: 19178200
  • Description: 60-Way F Hybrid (GY)
Terminal Part Information
  • Pins: 1, 44, 52
  • Terminal/Tray: 1241408-1/28
  • Core/Insulation Crimp: A/B
  • Release Tool/Test Probe: J-38125-557/J-35616-42 (RD)
  • Pins: 3-8, 11, 13-21, 23-25, 28, 31-34, 36- 37, 39, 42-43, 45-51, 54-58
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
