2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

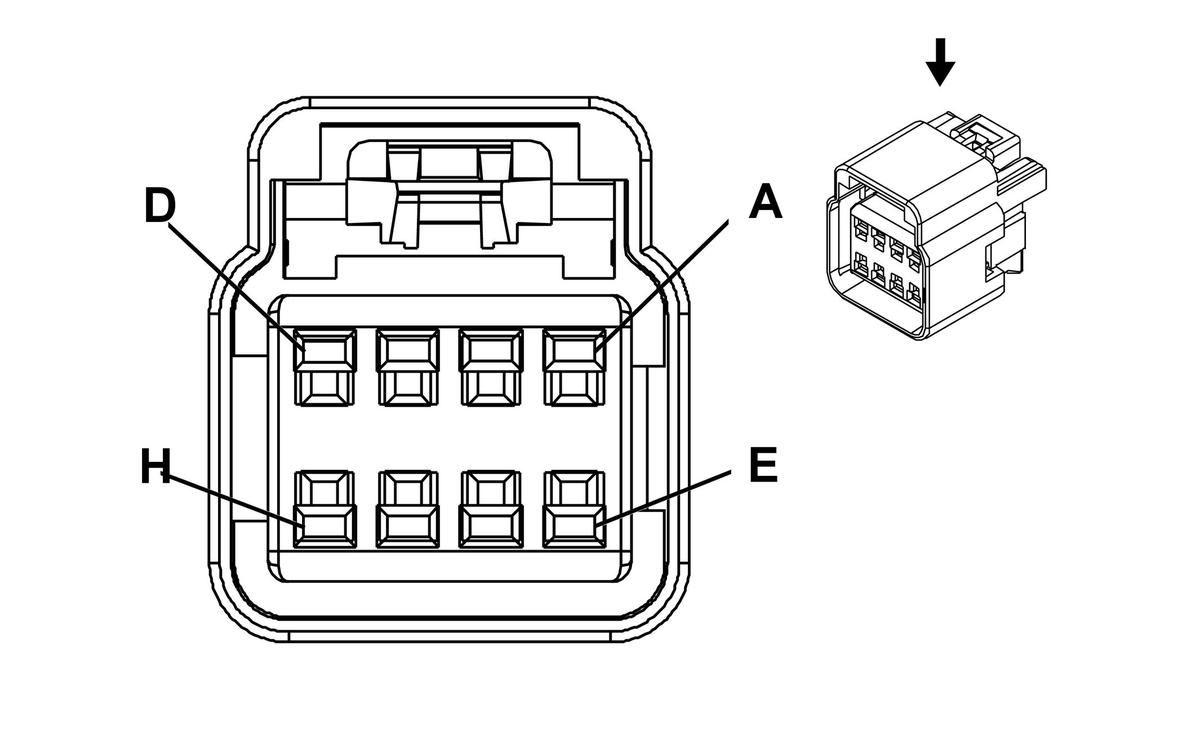

Windshield Wiper/Washer Switch - Front
Windshield Wiper/Washer Switch - Front
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.35 PK | 94 | Windshield Washer Switch Signal |
| B | 0.35 TN/BK | 6009 | Windshield Wiper Switch Low Reference |
| C | 0.35 L-GN | 1715 | Windshield Wiper Switch High Signal |
| D | 0.35 L-BU | 1714 | Windshield Wiper Switch Low Signal |
| E-H | - | - | Not Used |
Connector Part Information
|
Terminal Part Information
|
