2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE
Remote Control Door Lock Receiver (RCDLR) (AP3)

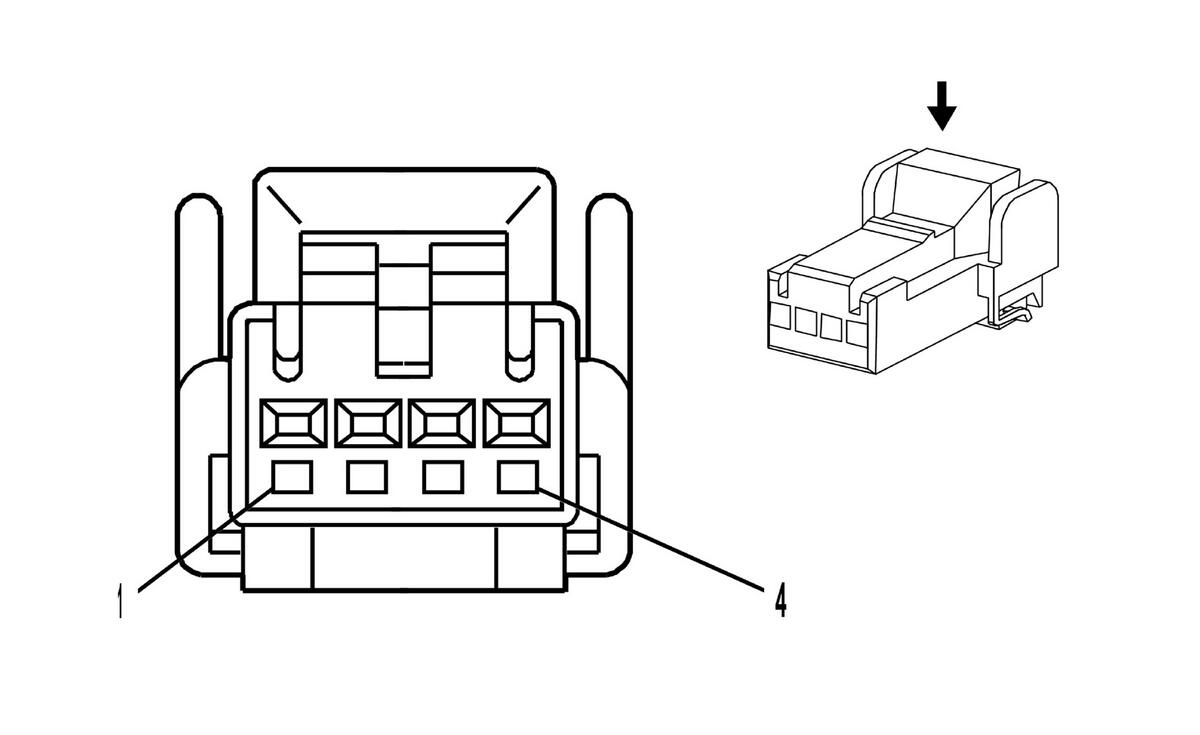

Remote Control Door Lock Receiver (RCDLR) (AP3)
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.5 RD/WH | 1940 | Battery Positive Voltage |
| 2 | 0.5 D-GN | 5060 | Low Speed GMLAN Serial Data |
| 3 | - | - | Not Used |
| 4 | 0.5 BK | 350 | Ground |
