2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE
Rear Wheel Drive Module Clutch (AWD)
Rear Wheel Drive Module Clutch (AWD)

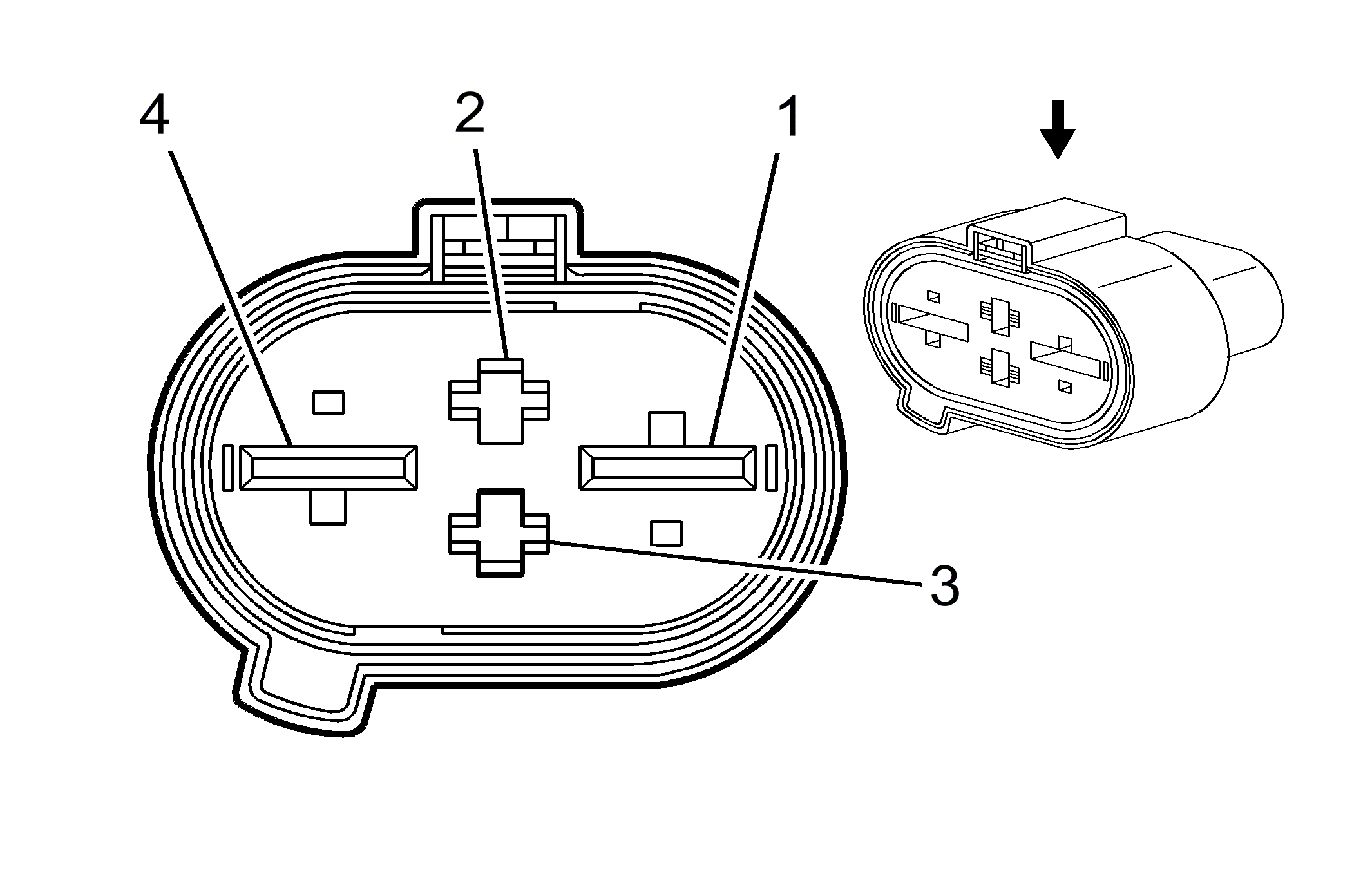

| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1 | 0.5 TN | 1569 | Lock Solenoid Control |
| 2 | 0.5 OG | 1568 | Diagnostic Enable |
| 3 | 0.5 D-BU | 5094 | Low Reference |
| 4 | 0.5 L-BU | 5095 | Coil Temperature Sensor Signal |
