2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

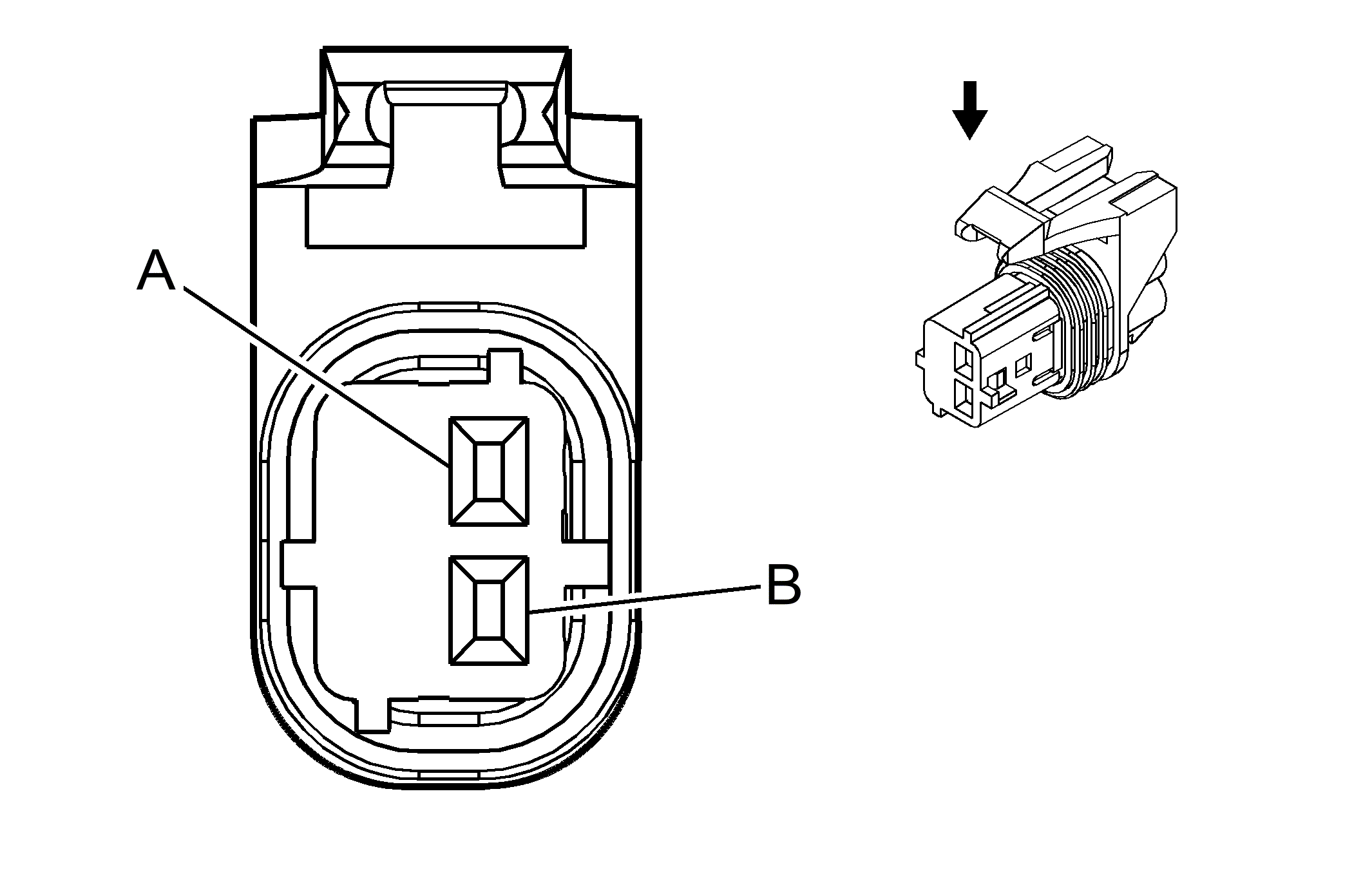

Inflatable Restraint Front End Sensor - Right
Inflatable Restraint Front End Sensor - Right
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.5 L-GN | 6777 | Middle Front Impact Sensing Module (2) Signal |
| B | 0.5 YE/GY | 6776 | Middle Front Impact Sensing Module (2) Supply Voltage |
Connector Part Information
|
Terminal Part Information
|
