2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

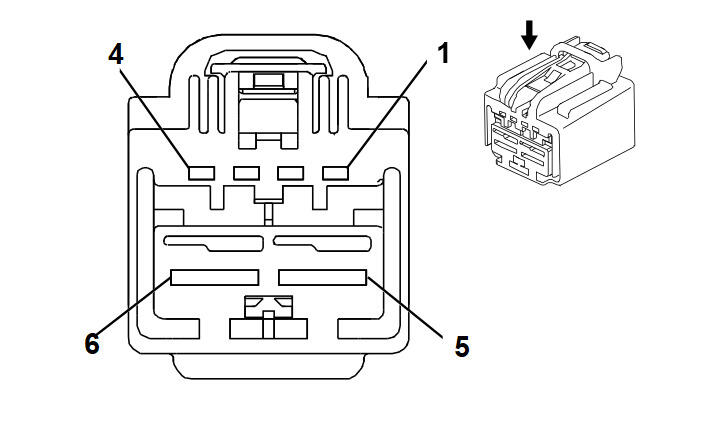

Blower Motor Control Module X2
Blower Motor Control Module X2
| Pin | Wire | Circuit | Function |
|---|---|---|---|
| 1-2 | - | - | Not Used |
| 3 | 0.35 GY/BK | 754 | Blower Motor Speed Control |
| 4 | - | - | Not Used |
| 5 | 5 BK | 950 | Ground |
| 6 | 3 RD/WH | 3040 | Battery Positive Voltage |
Connector Part Information
|
Terminal Part Information
|
