2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE
Accelerator Pedal Position (APP) Sensor (HP5)
Accelerator Pedal Position (APP) Sensor (HP5)

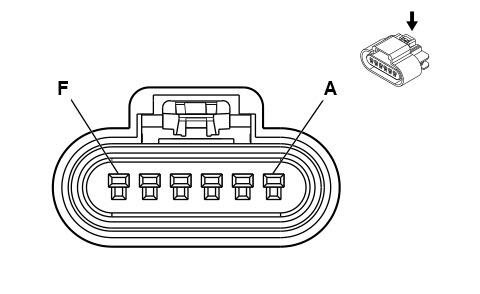

| Pin | Wire | Circuit | Function |
|---|---|---|---|
| A | 0.35 PU | 1272 | Low Reference |
| B | 0.35 L-BU | 1162 | APP Sensor 2 Signal |
| C | 0.35 TN | 1274 | 5-Volt Reference 1 |
| D | 0.35 BN | 1271 | Low Reference |
| E | 0.35 D-BU | 1161 | APP Sensor 1 Signal |
| F | 0.35 WH/BK | 1164 | 5V Reference |
Connector Part Information
|
Terminal Part Information
|
Factory Service Tools
