Video Display Replacement

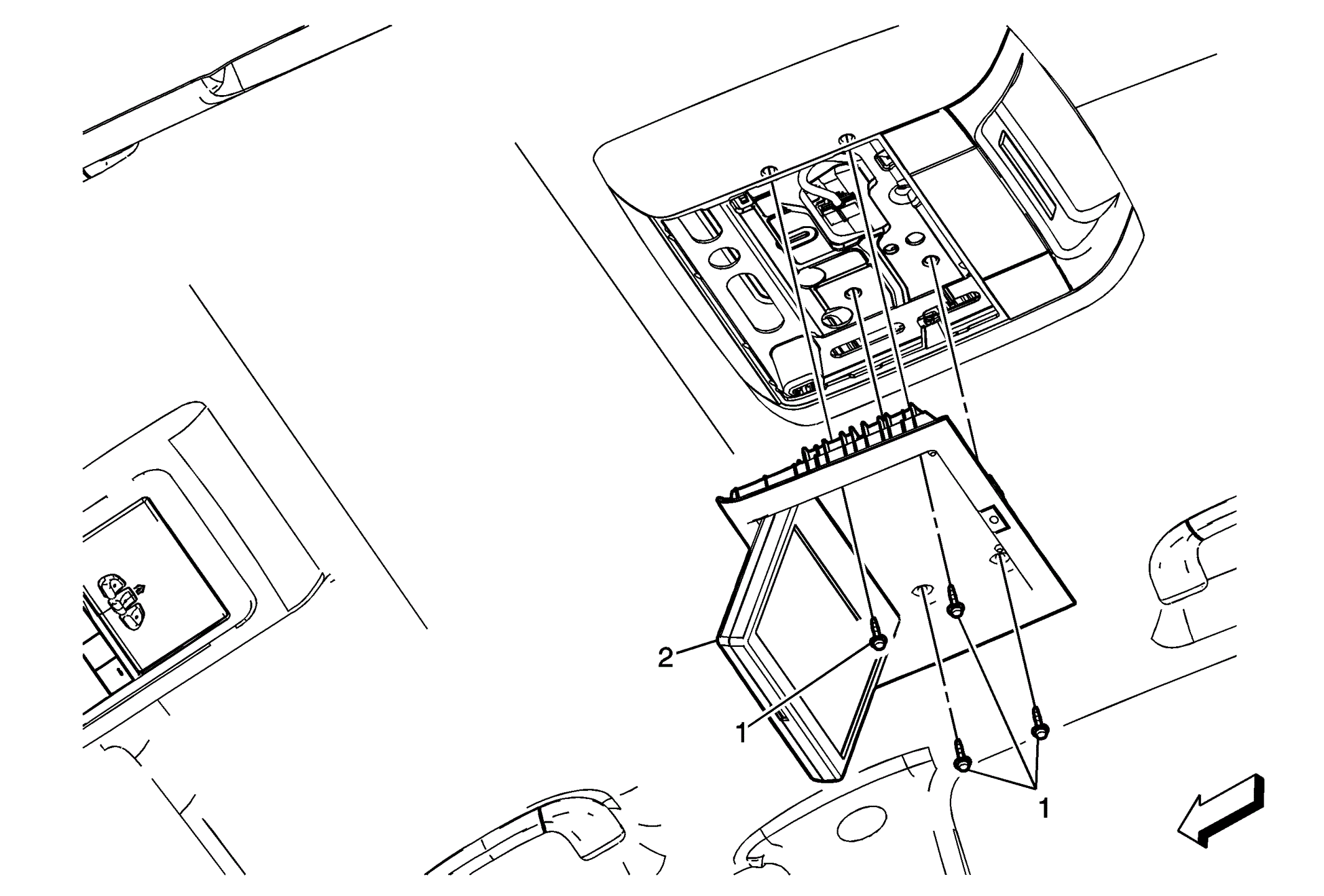

| Callout | Component Name |
|---|---|
| 1 | Video Display Assembly Screws (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m ( 22 lb in) Procedure: Make sure that all 4 washers on the 4 mounting screws are accounted for. If any washers are off the screw and loose, discard to prevent a rattle. The washers were required only for assembly plant installation, and can be used if still on the screw or they can be discarded. |
| 2 | Video Display Assembly Procedure
|
