2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE
Rear Seat Audio Control Replacement

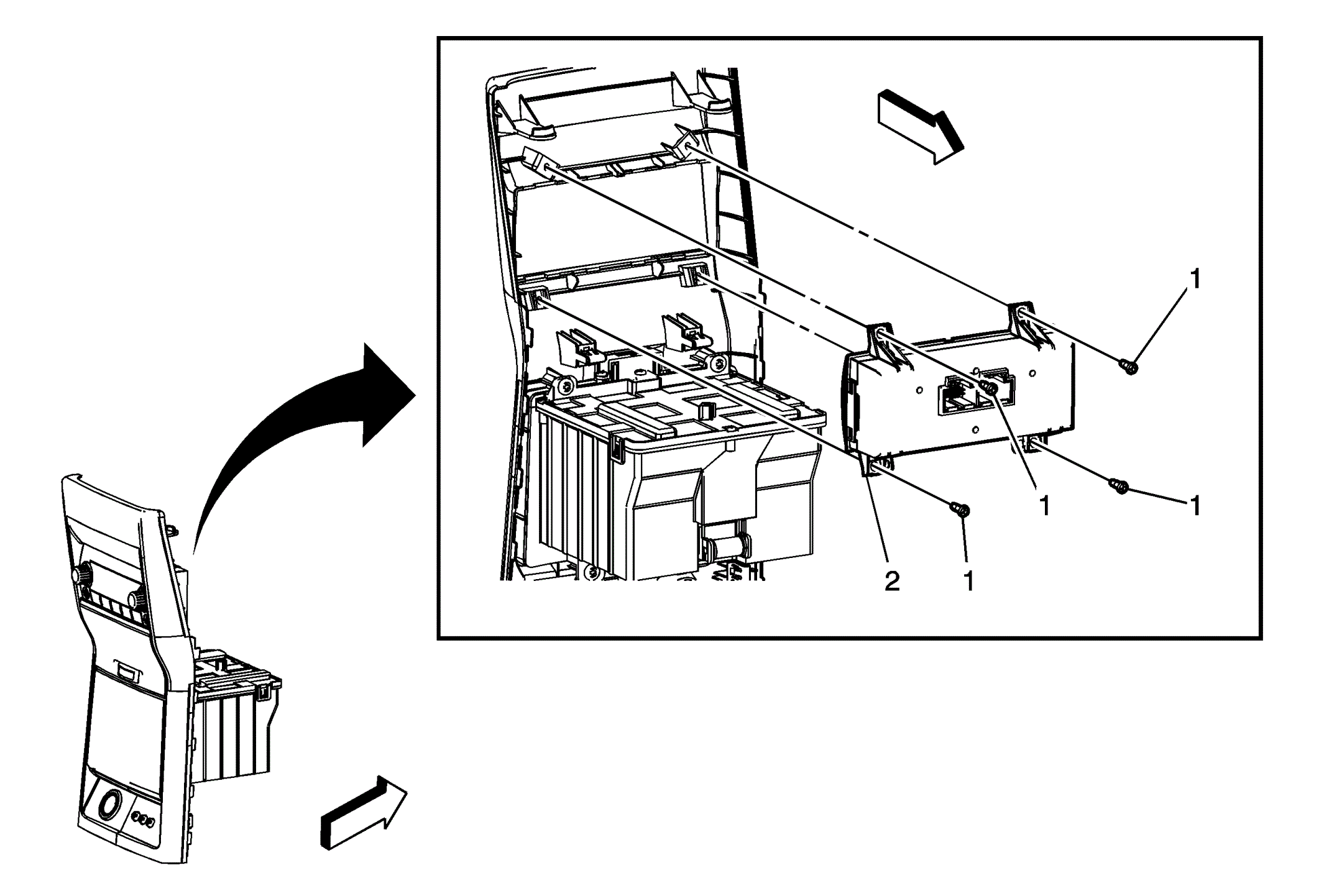

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the front floor console rear cover. Refer to Front Floor Console Rear Cover Replacement . |
|
| 1 | AM/FM Stereo and Clock and Compact Disc Player Radio Control Assembly Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 2.5 N.m (22 lb in) |
| 2 | AM/FM Stereo and Clock and Compact Disc Player Radio Control Assembly |
