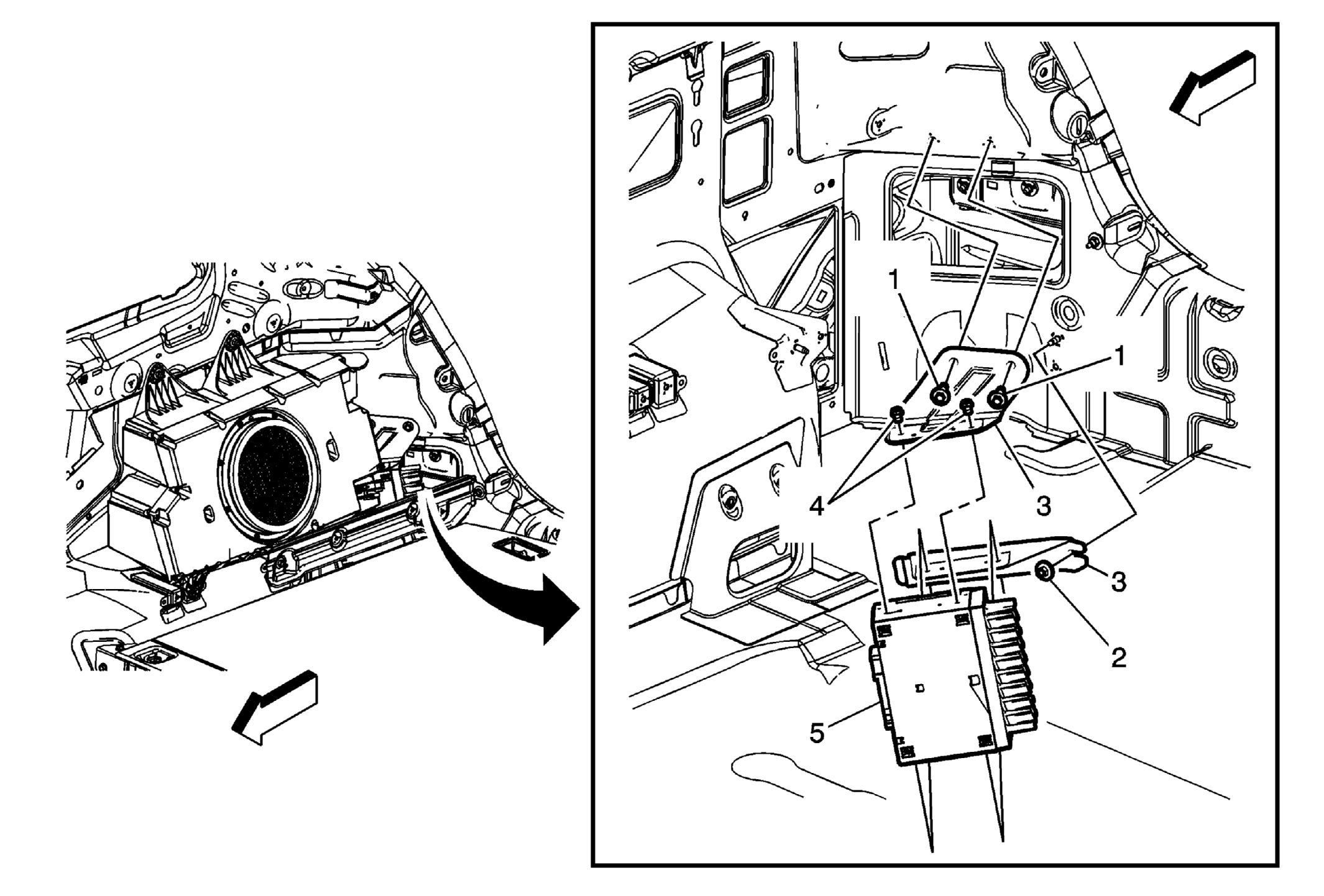

Radio Speaker Amplifier Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear quarter trim panel. Refer to Quarter Lower Rear Trim Panel Replacement . |
|
| 1 | Radio Speaker Amplifier Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 2 | Radio Speaker Amplifier Nut
CAUTION:
Refer to Fastener Caution
.
Tighten: 10 N.m (89 lb in) |
| 3 | Radio Speaker Amplifier Bracket Assembly Tip: Amplifier bracket is a two piece assembly. |
| 4 | Radio Speaker Amplifier Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution
.
Tighten: 3 N.m (27 lb in) |
| 5 | Radio Speaker Amplifier Assembly Procedure: Disconnect the electrical connectors. |
