2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

Radio Antenna Cable Extension Cable Replacement

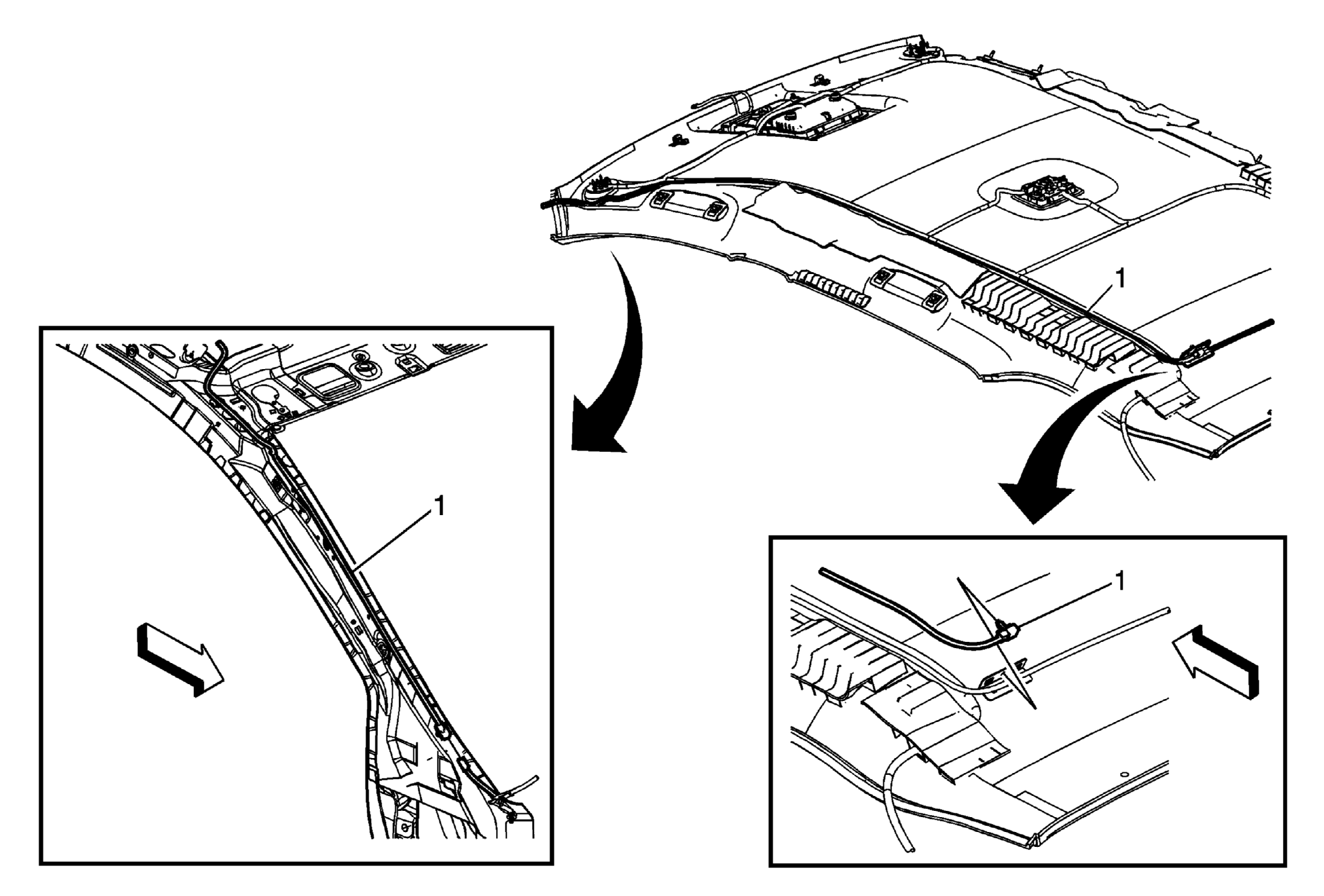

Fig 1: Radio Antenna Cable Extension Cable

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedures

Remove the left windshield pillar garnish molding. Refer to Windshield Pillar Garnish Molding Replacement .
Lower the left side of the headliner as needed. Refer to Headlining Trim Panel Replacement .

Radio Antenna Cable Extension Cable Assembly
Procedure:
Disconnect the electrical connectors at each end of the cable.
