2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE

Ignition Lock Key Transmitter Antenna Replacement - Instrument Panel

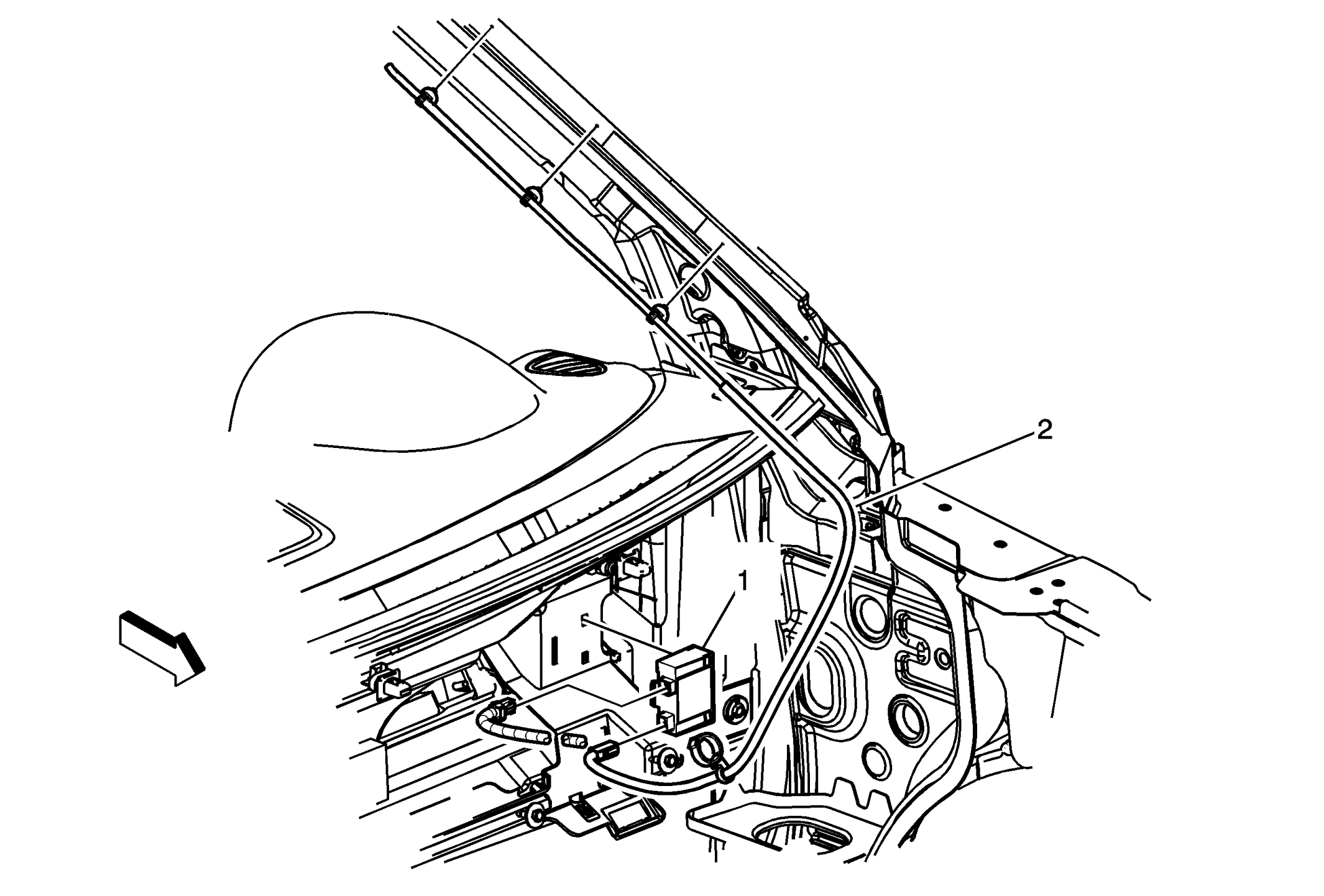

Fig 1: Ignition Lock Key Transmitter Antenna
GM2078979Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Remove driver side windshield garnish molding. Refer to Windshield Pillar Garnish Molding Replacement
  2. Remove remote control door lock receiver. Refer to Remote Control Door Lock Receiver Replacement
1 Remote Control Door Lock Receiver Assembly
2 Ignition Lock Key Transmitter Antenna Assembly

Procedure

  1. Unclip antenna lower retainer from wire harness.
  2. Unclip upper antenna from windshield pillar.
  3. Attach mechanics wire to top of antenna. Pull antenna and wire through bottom of IP.
