2009 Saturn Vue XR, 3.6 7, AWDFACTORY OEM SERVICE PROCEDURE
Garage Door Opener Transmitter Replacement

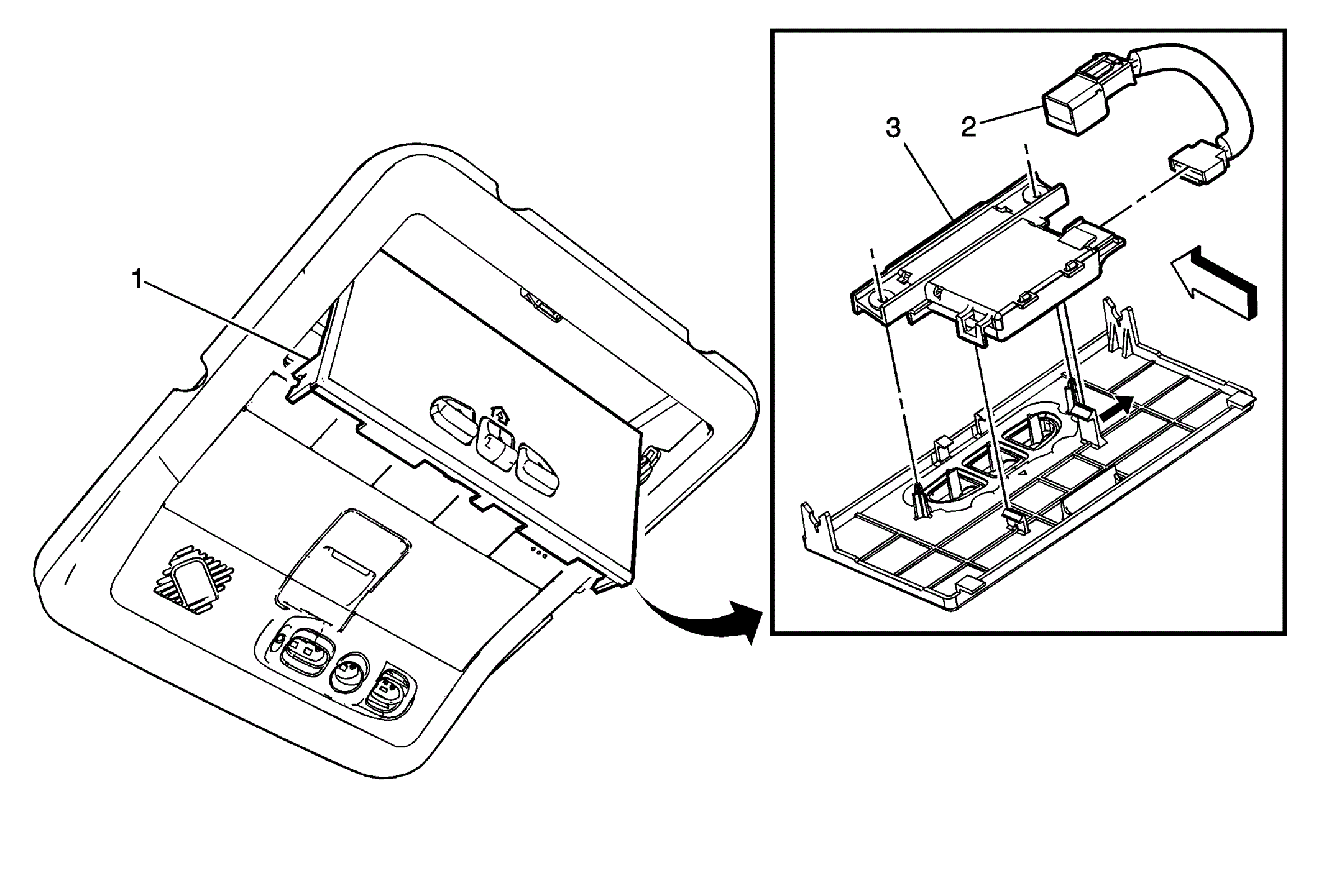

| Callout | Component Name |
|---|---|
| 1 | Garage Door Opener Transmitter Bezel Procedure: Carefully use a plastic flat bladed tool to release the bezel door. |
| 2 | Garage Door Opener Transmitter Push Button Extension Procedure: Disconnect the electrical connector. |
| 3 | Garage Door Opener Transmitter Assembly Procedure: Refer to the garage door opener programming.Garage Door Opener Programming - Universal (One LED) or Garage Door Opener Programming - Universal (Three LEDs) |
