2009 Saturn Sky Red Line, AutomaticFACTORY OEM SERVICE PROCEDURE
Installation Procedure

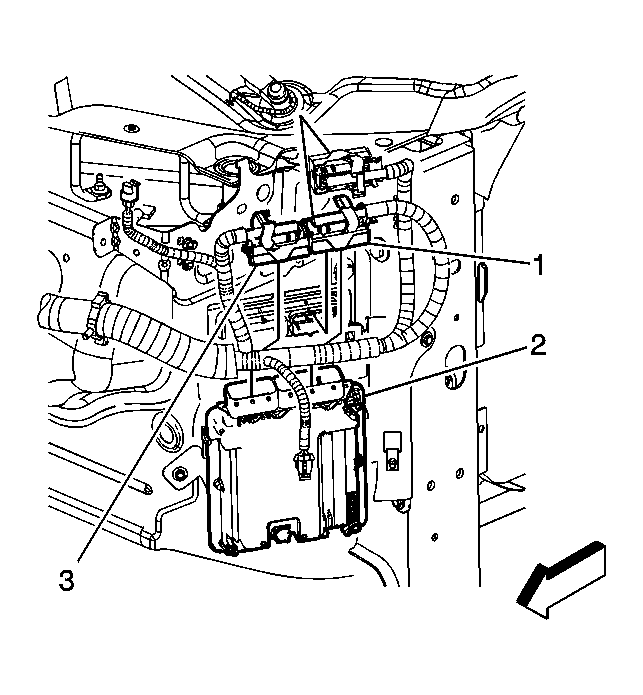

- Connect the engine wiring harness electrical connectors (1, 3) to the ECM (2).
- Slide the ECM into the bracket.
- Push down on the ECM until the upper and lower retaining tabs (1, 2) snaps into place.
- Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
- Install the windshield washer solvent container. Refer to Windshield Washer Solvent Container Replacement (SKY) or Windshield Washer Solvent Container Replacement (Solstice) .
- Install the left front fender. Refer to Front Fender Replacement .
- Reset the clock and preset radio stations.
- If a NEW ECM was installed, the ECM must be programmed. Refer to Control Module References .
- If equipped with a manual transmission, perform the clutch pedal position sensor learn procedure. Refer to Clutch Pedal Position Sensor Learn .
