2009 Saturn Sky Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Removal Procedure
CAUTION:
Cap the fittings and plug the holes when servicing the fuel system in order to prevent dirt and other contaminants from entering the open pipes and passages.
- Remove the fuel pump module. Refer to Fuel Pump Module Replacement .

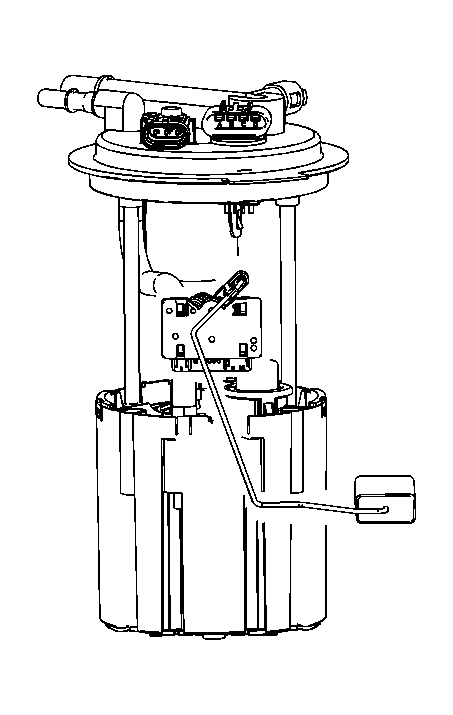

- Depress the retaining tab on the fuel level sensor and begin to slide the sensor away from the pump module.
- Carefully slide the sensor the rest of the way off of the pump module.
