2008 Saturn VUE FWD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Engine Control Module Scan Tool Information (2.4L)
Engine Control Module Scan Tool Information (2.4L)

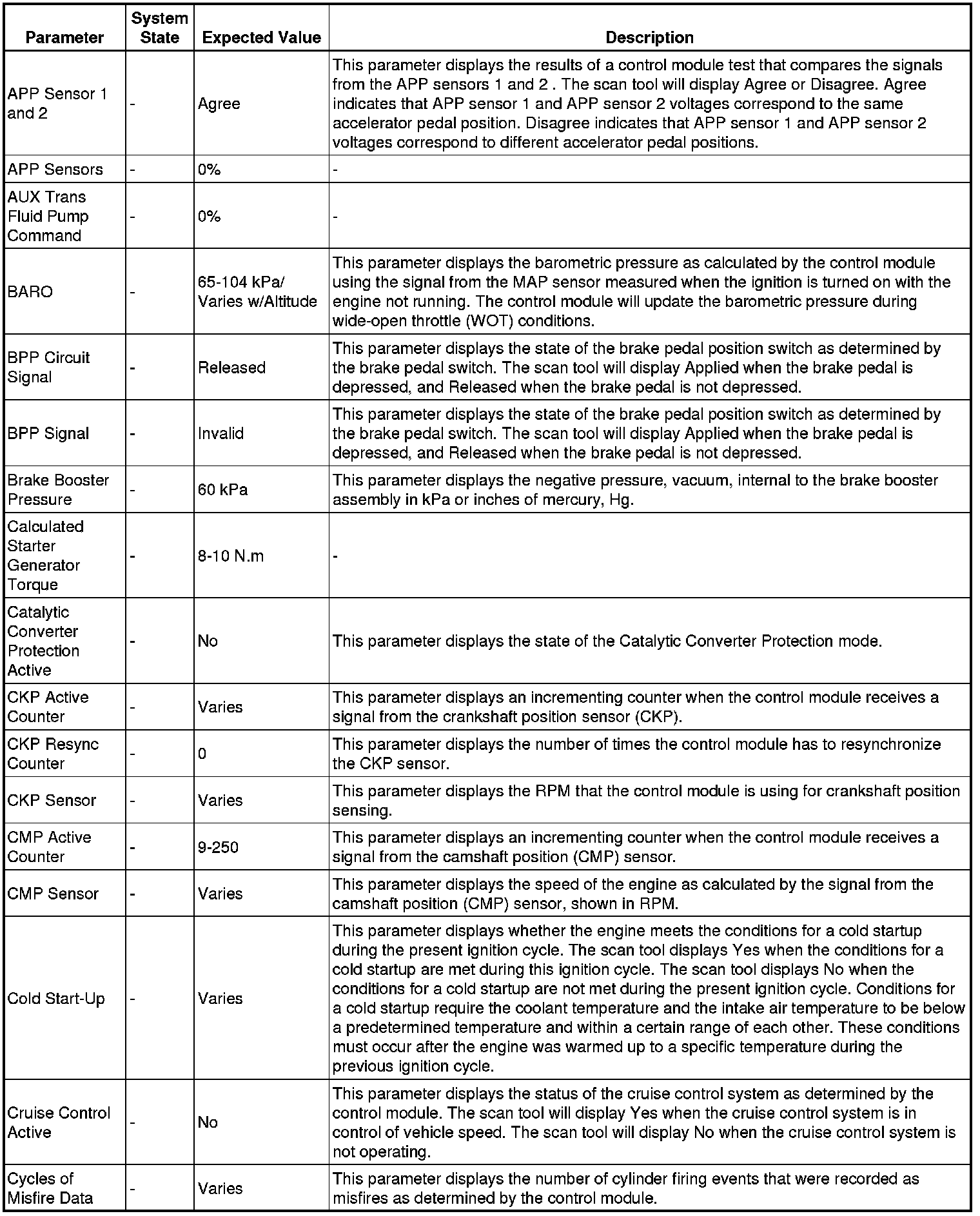

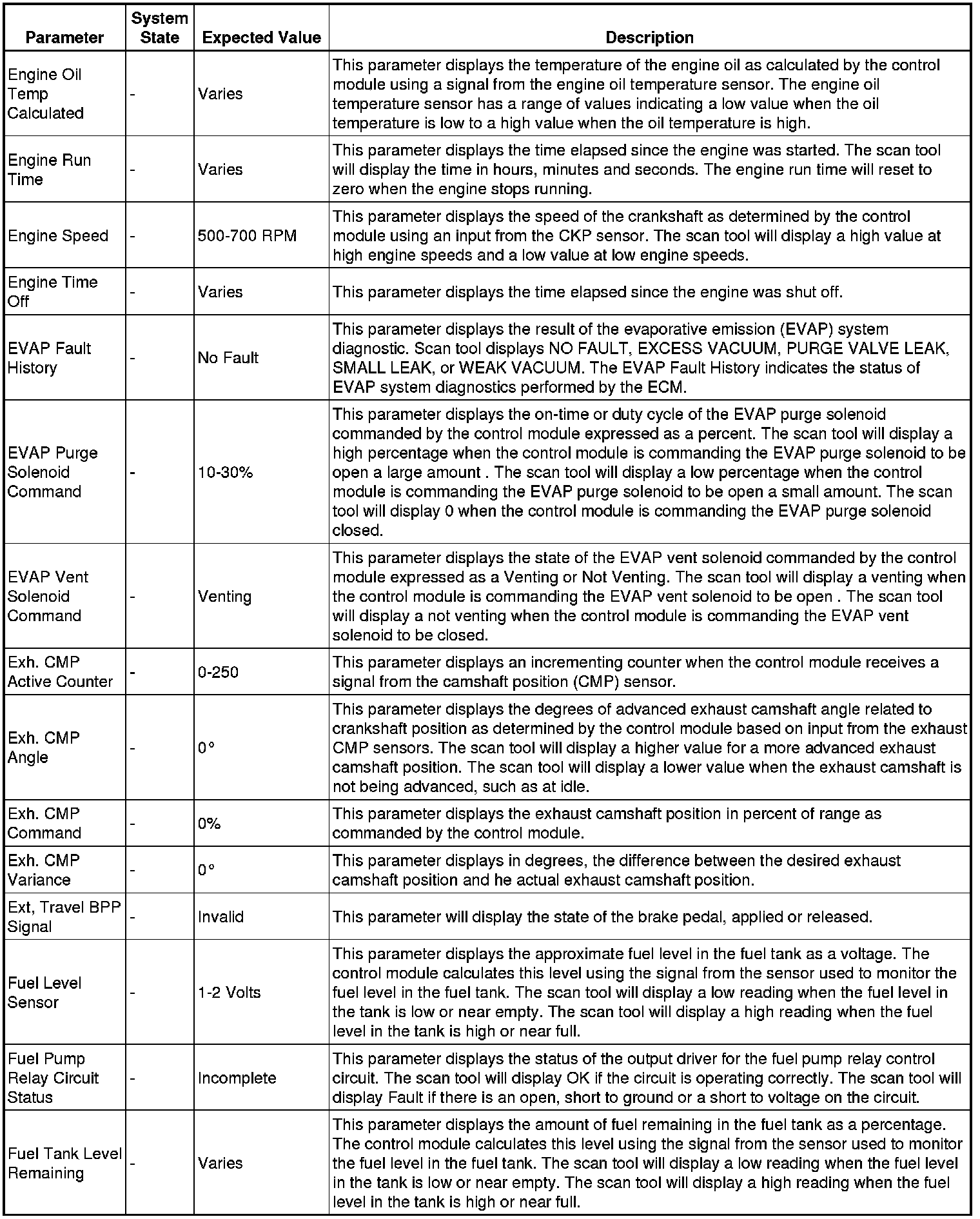

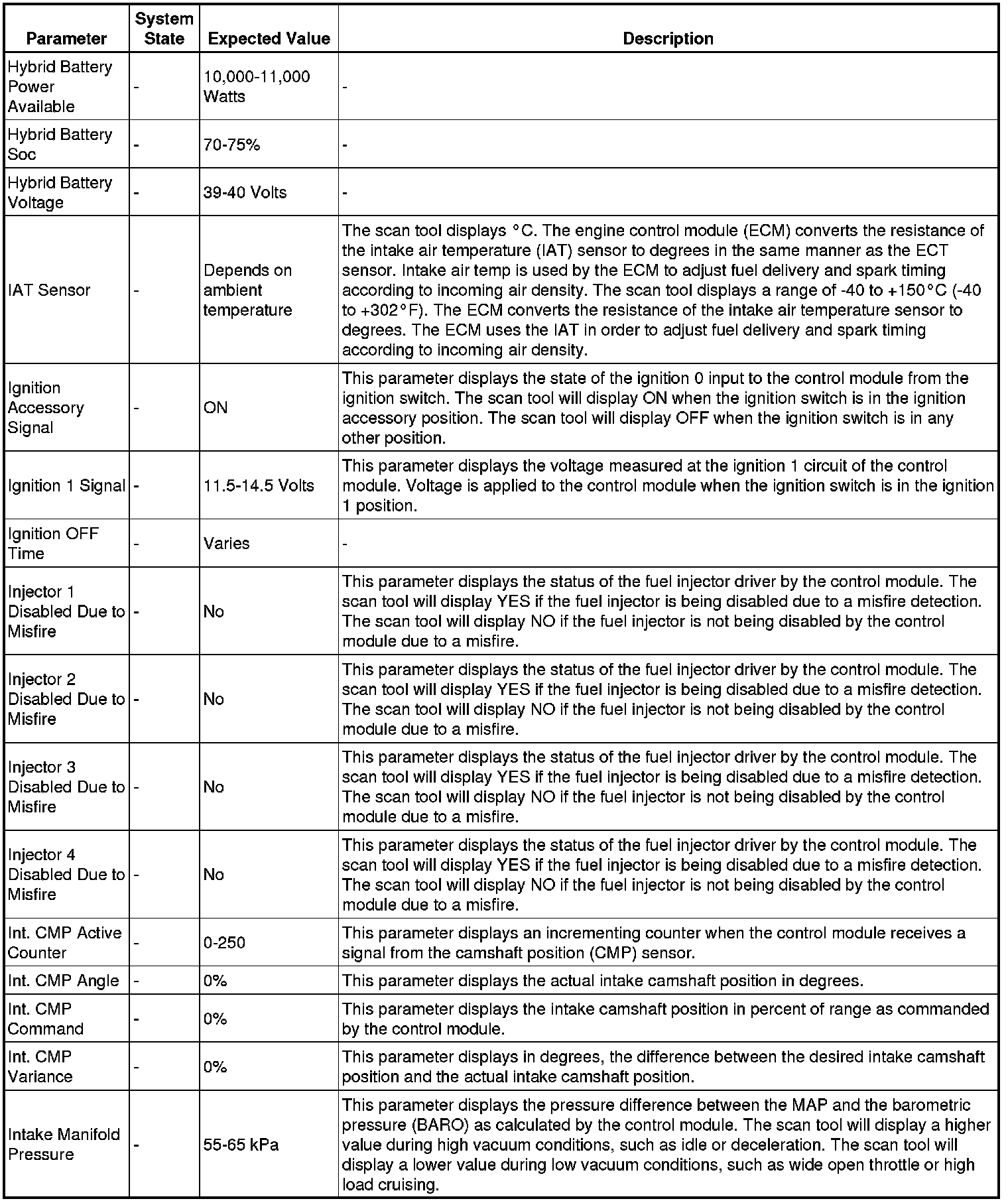

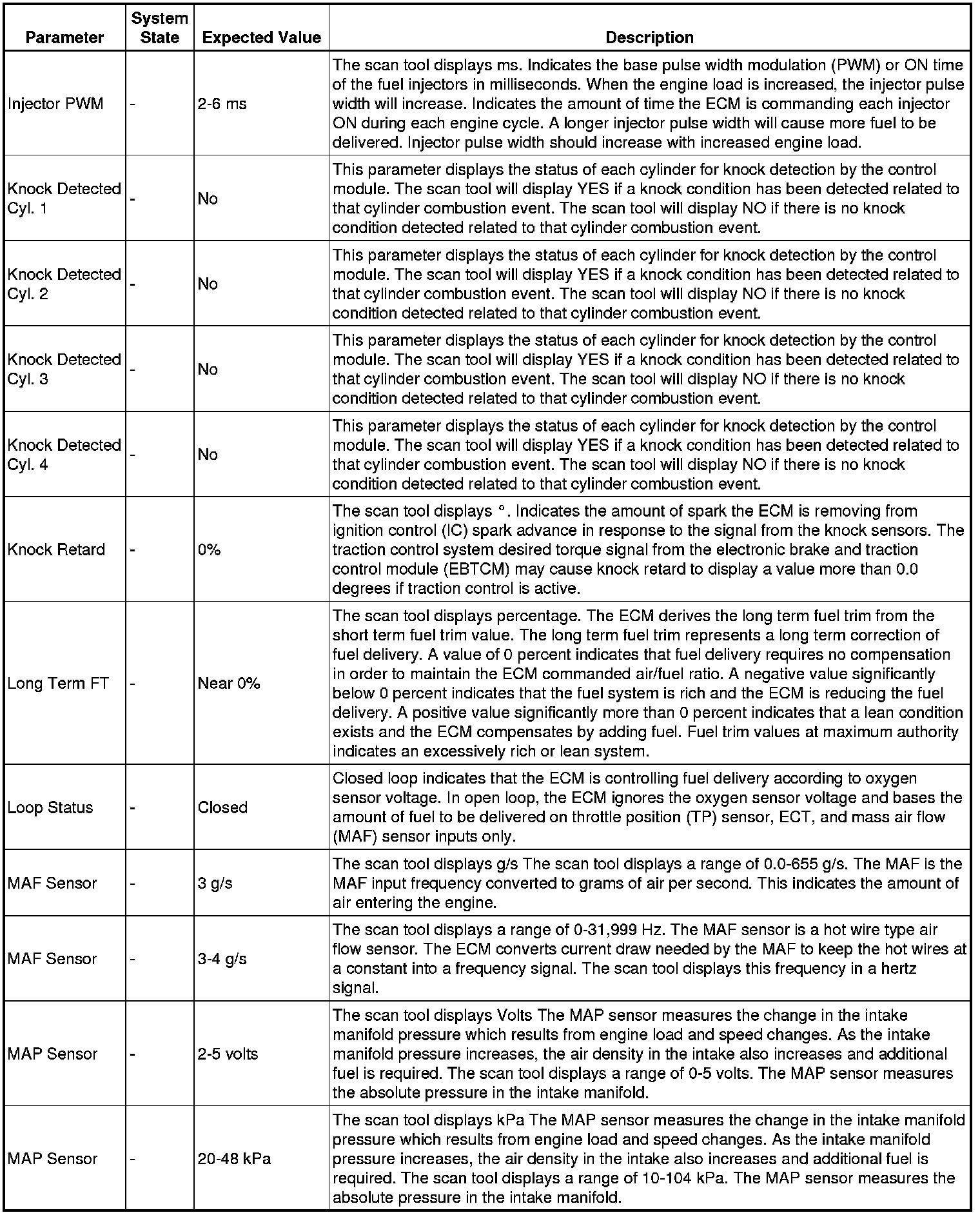

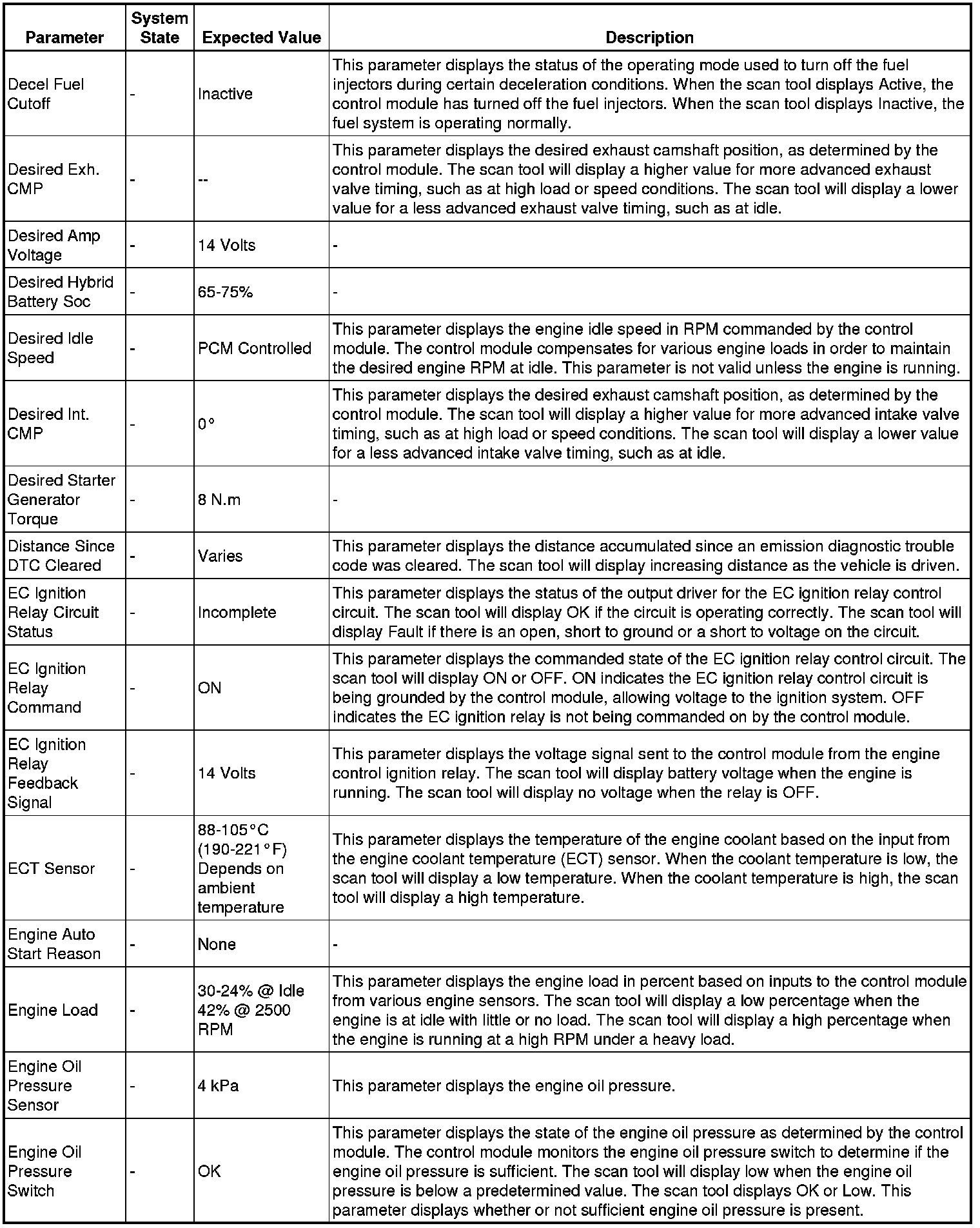

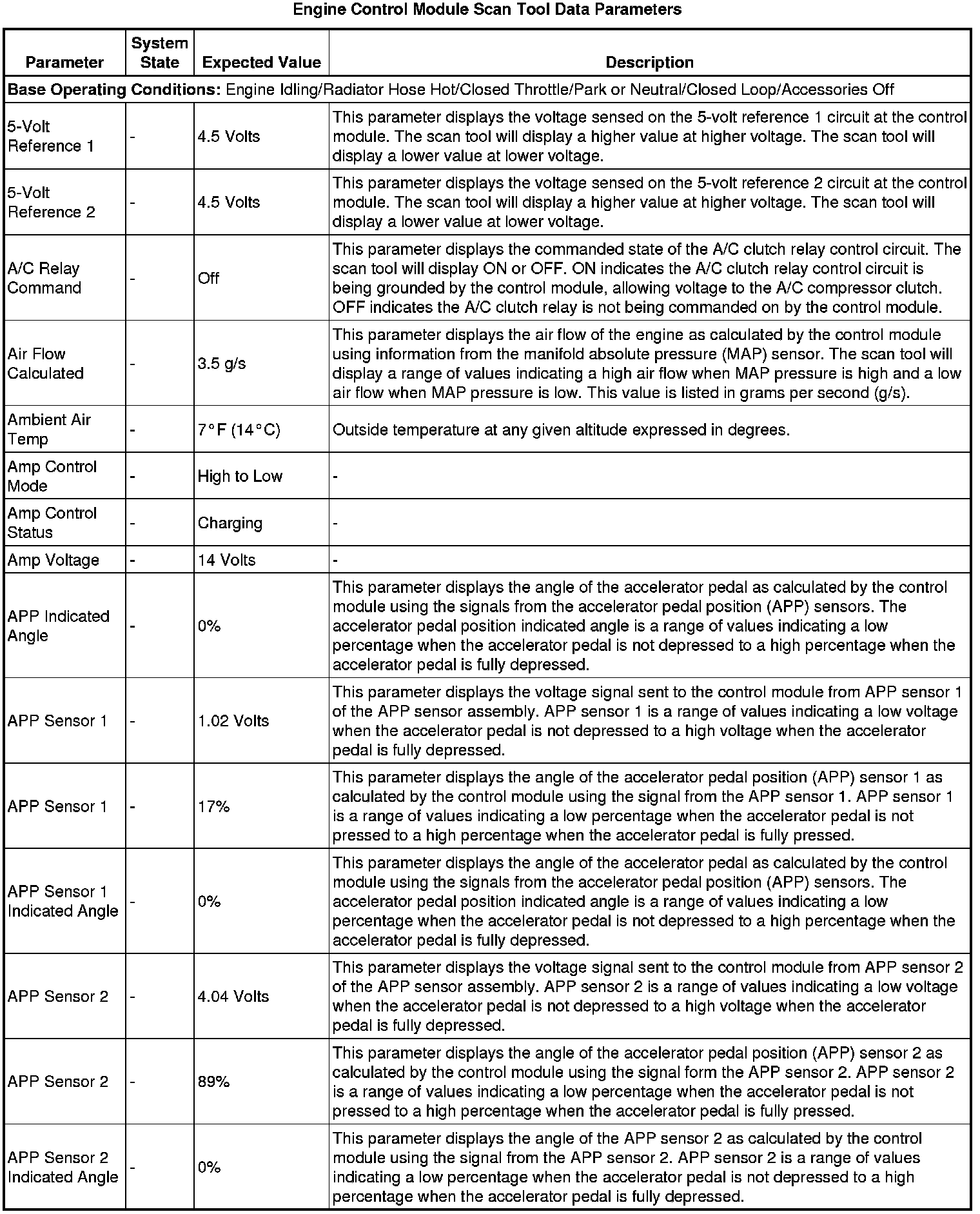

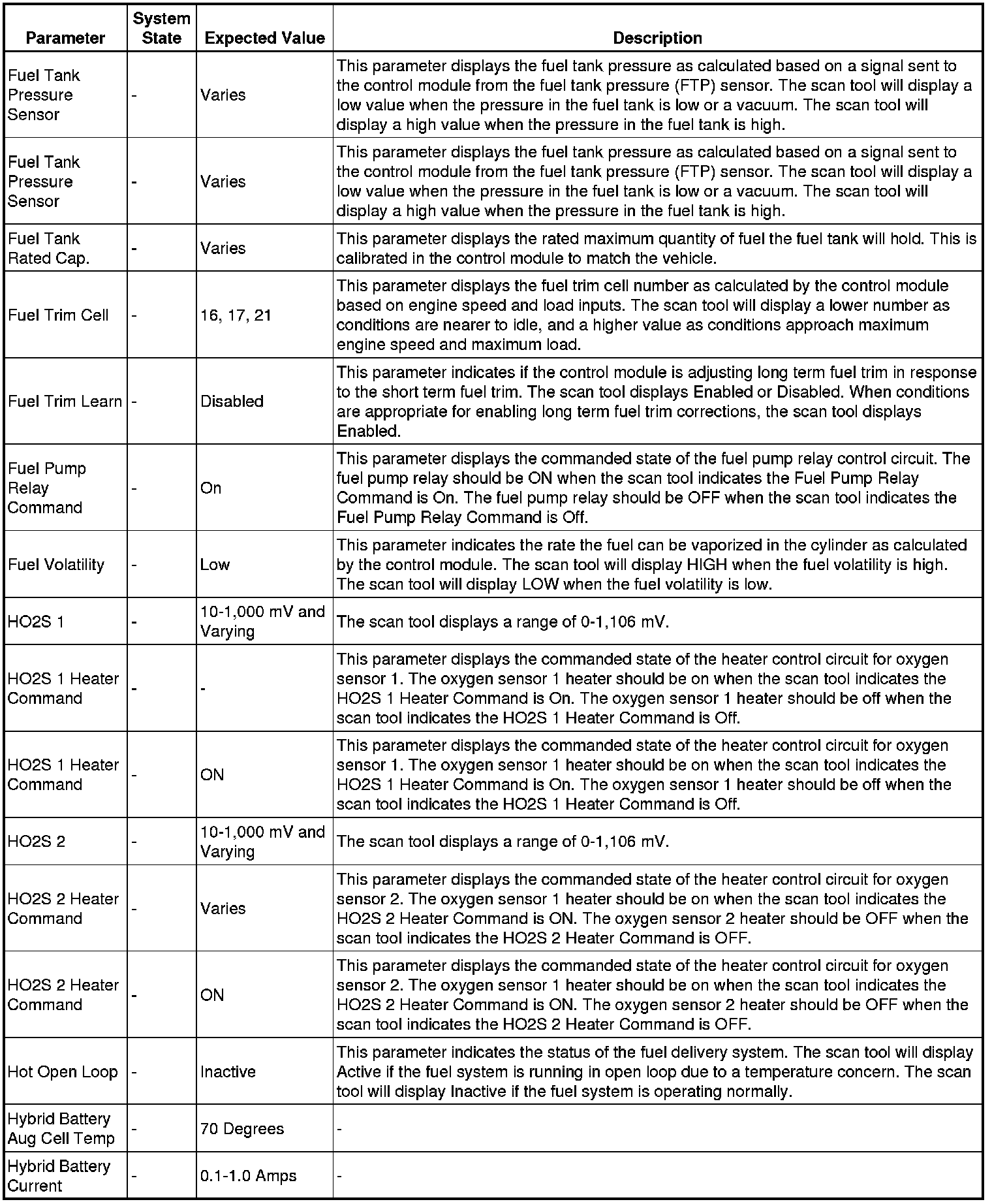

The Engine Scan Tool Data List contains all engine related parameters that are available on the scan tool. The list is arranged in alphabetical order.
Use the Engine Scan Tool Data List only after the following is determined:
* The Diagnostic System Check - Vehicle (Initial Inspection and Diagnostic Overview) is completed.
* No DTCs
* On-board diagnostics are functioning properly.
Scan tool values from a properly running engine may be used for comparison with the engine you are diagnosing. The Engine Scan Tool Data List represents values that would be seen on a normal running engine.
Important: A scan tool that displays faulty data should not be used. The scan tool problem should be reported to the manufacturer. Use of a faulty scan tool can result in misdiagnosis and unnecessary parts replacement.

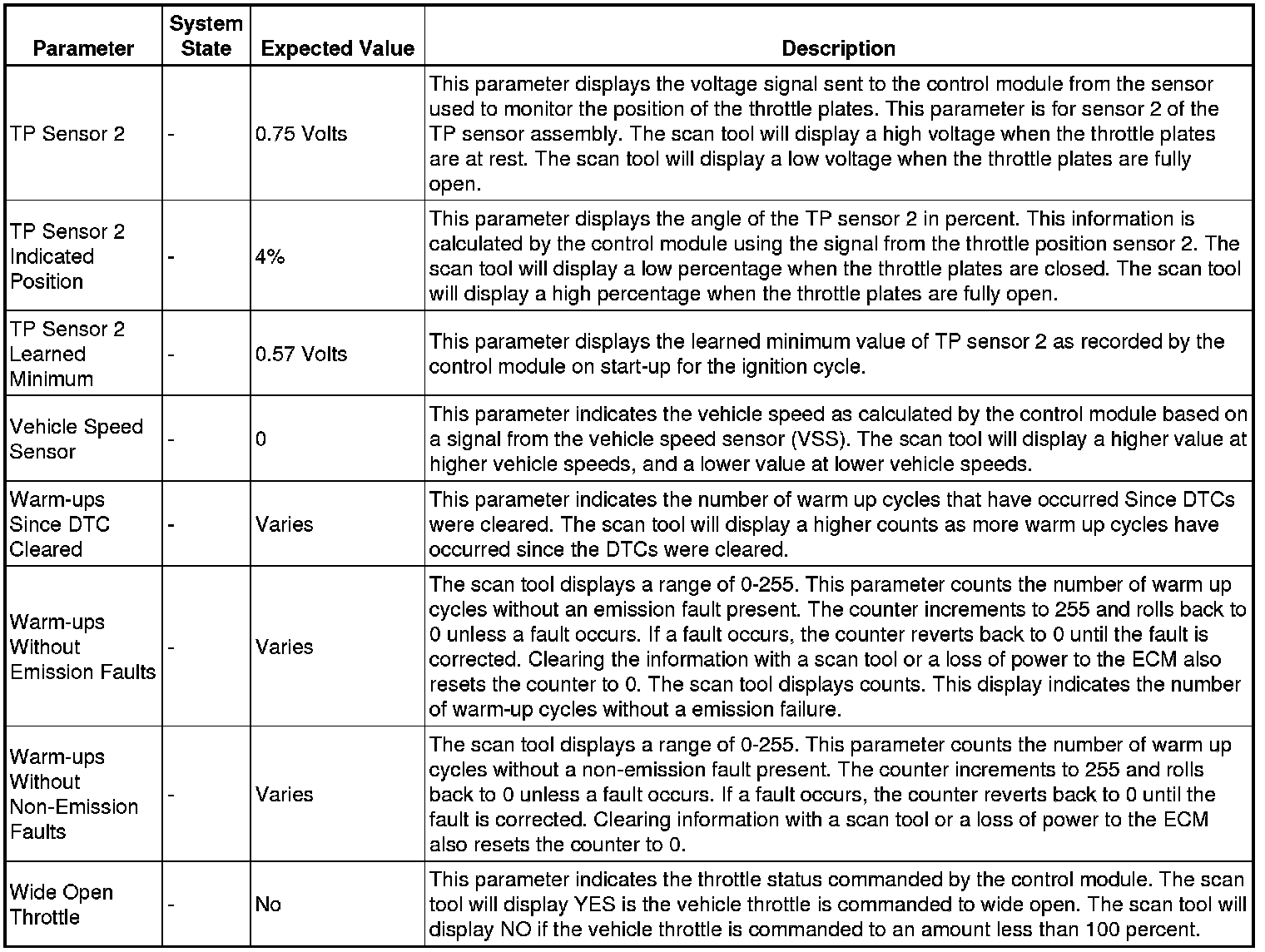

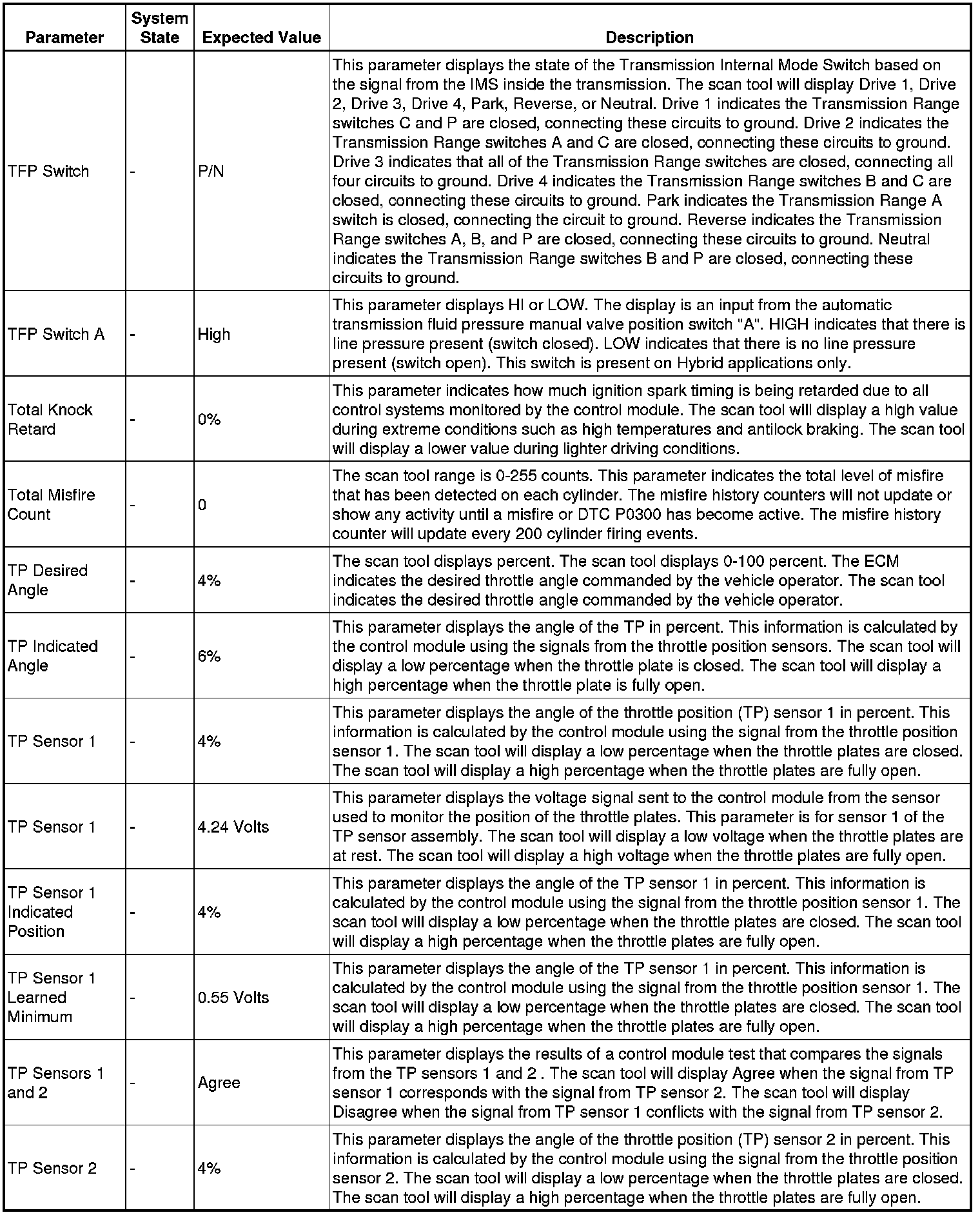

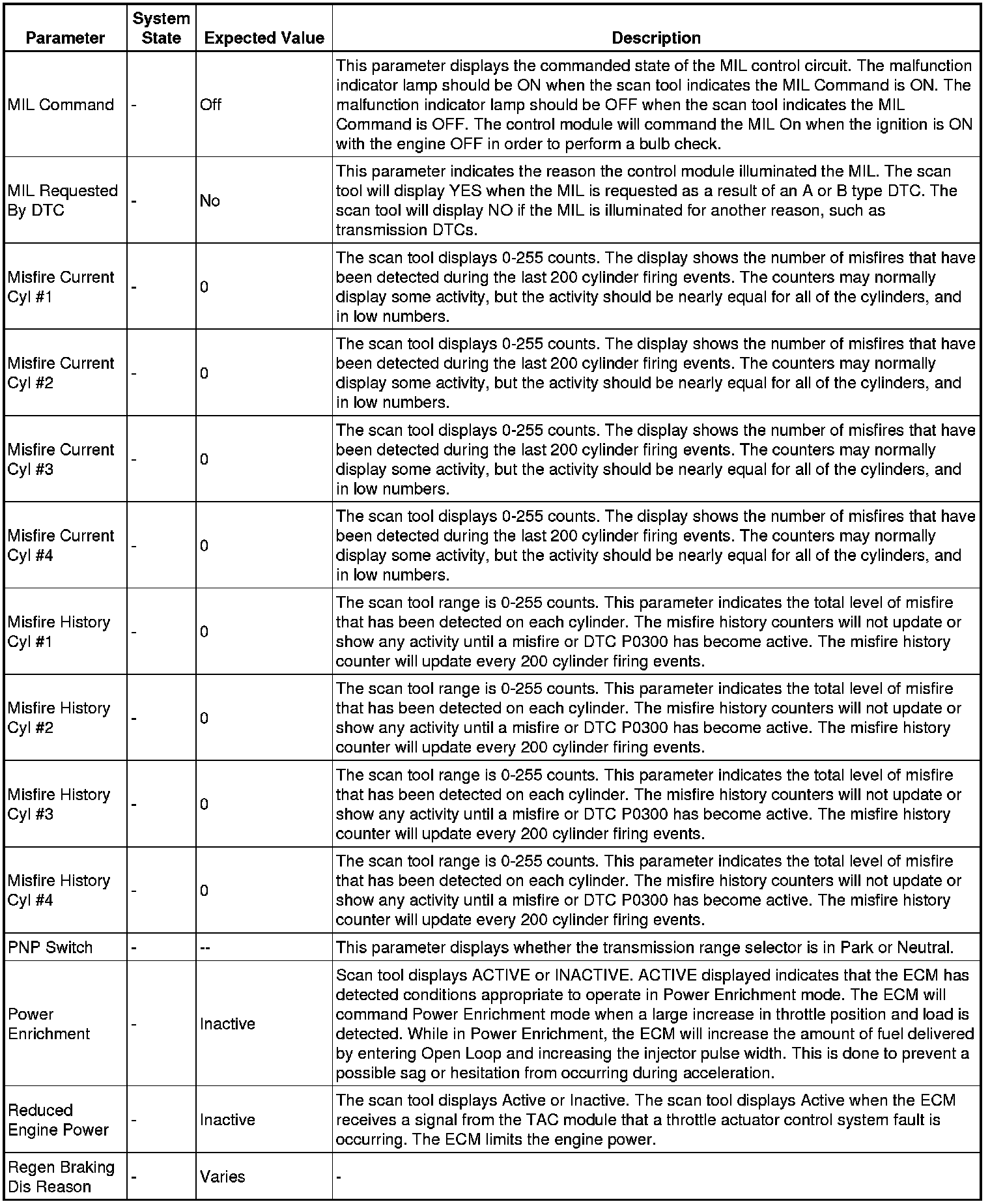

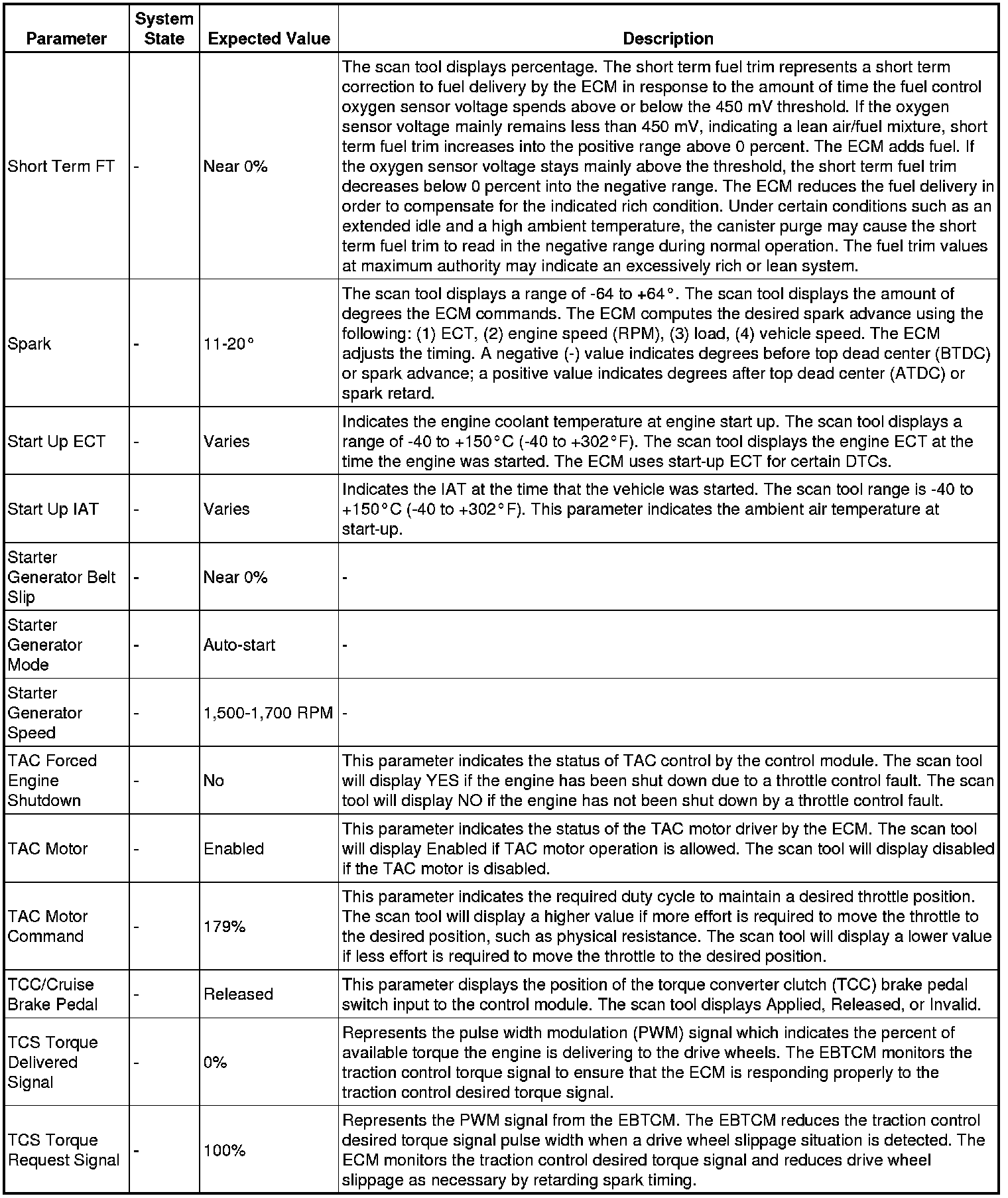

Only the parameters listed below are referenced in this service manual for use in diagnosis. If all values are within the typical range described below, Refer to Symptoms - Engine Controls (- Symptoms - Engine Controls) for diagnosis.
