2008 Saturn VUE FWD L4-2.4LFACTORY OEM SERVICE PROCEDURE
Control Module HVAC

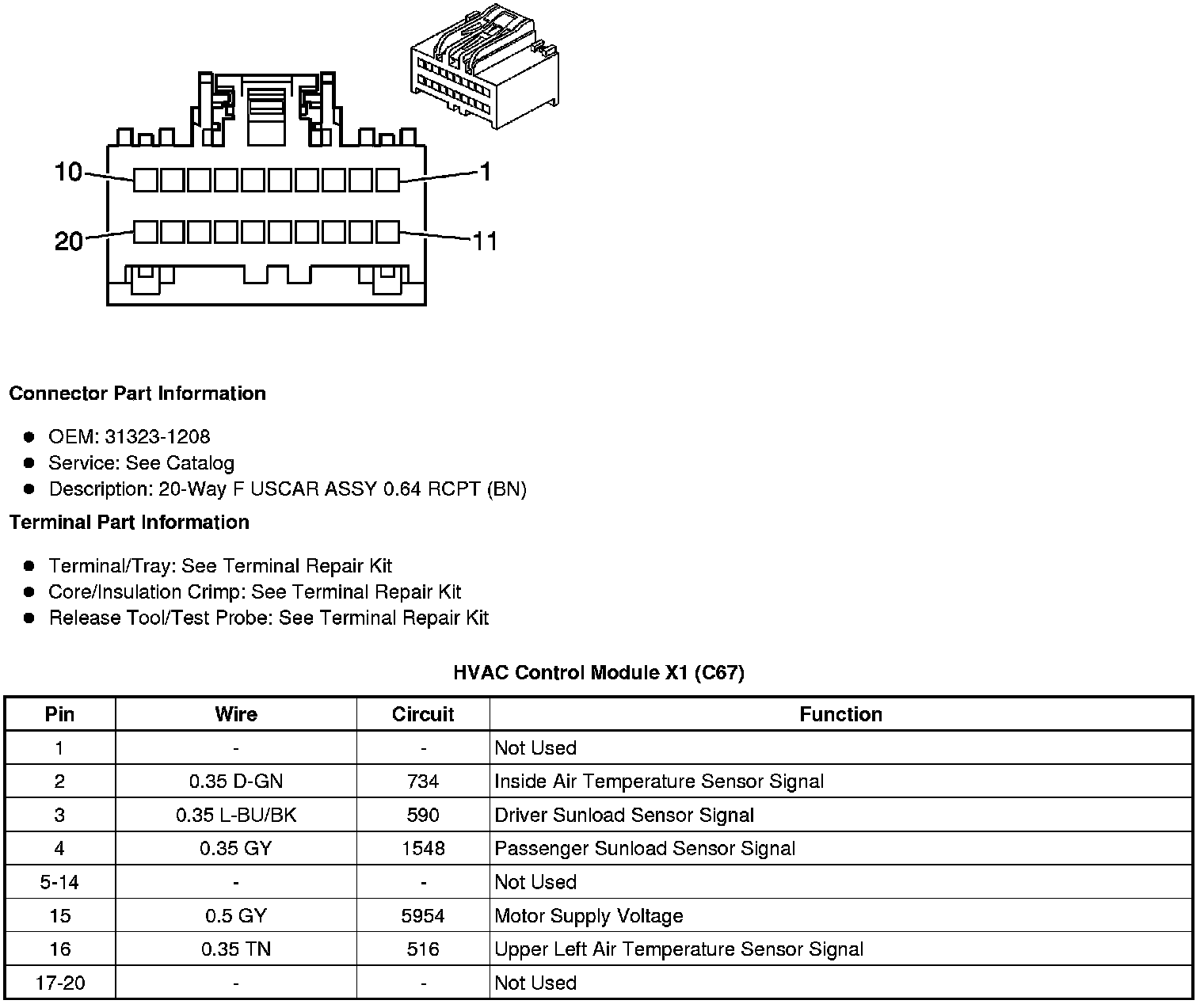

HVAC Control Module X1 (C67)

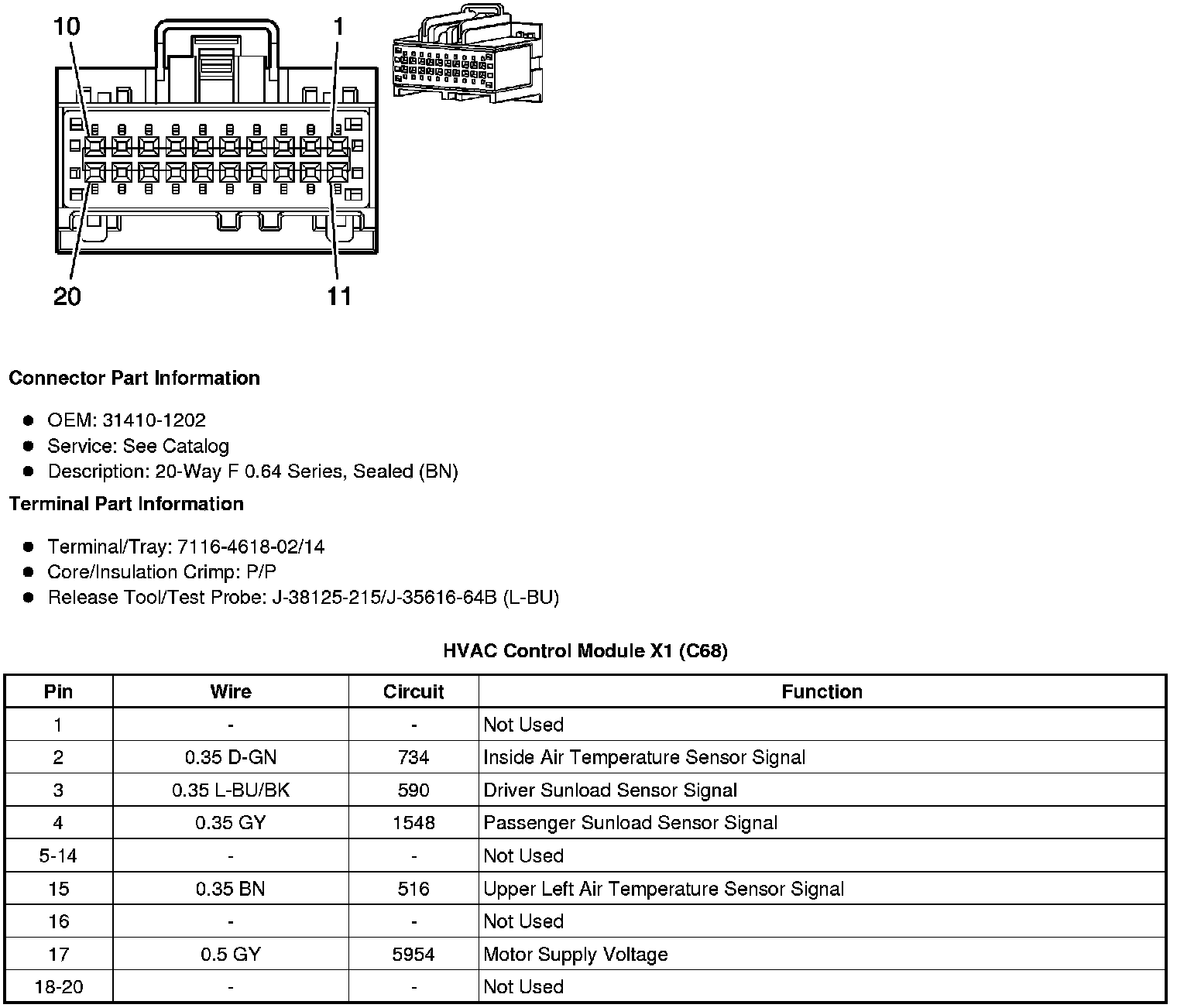

HVAC Control Module X1 (C68)

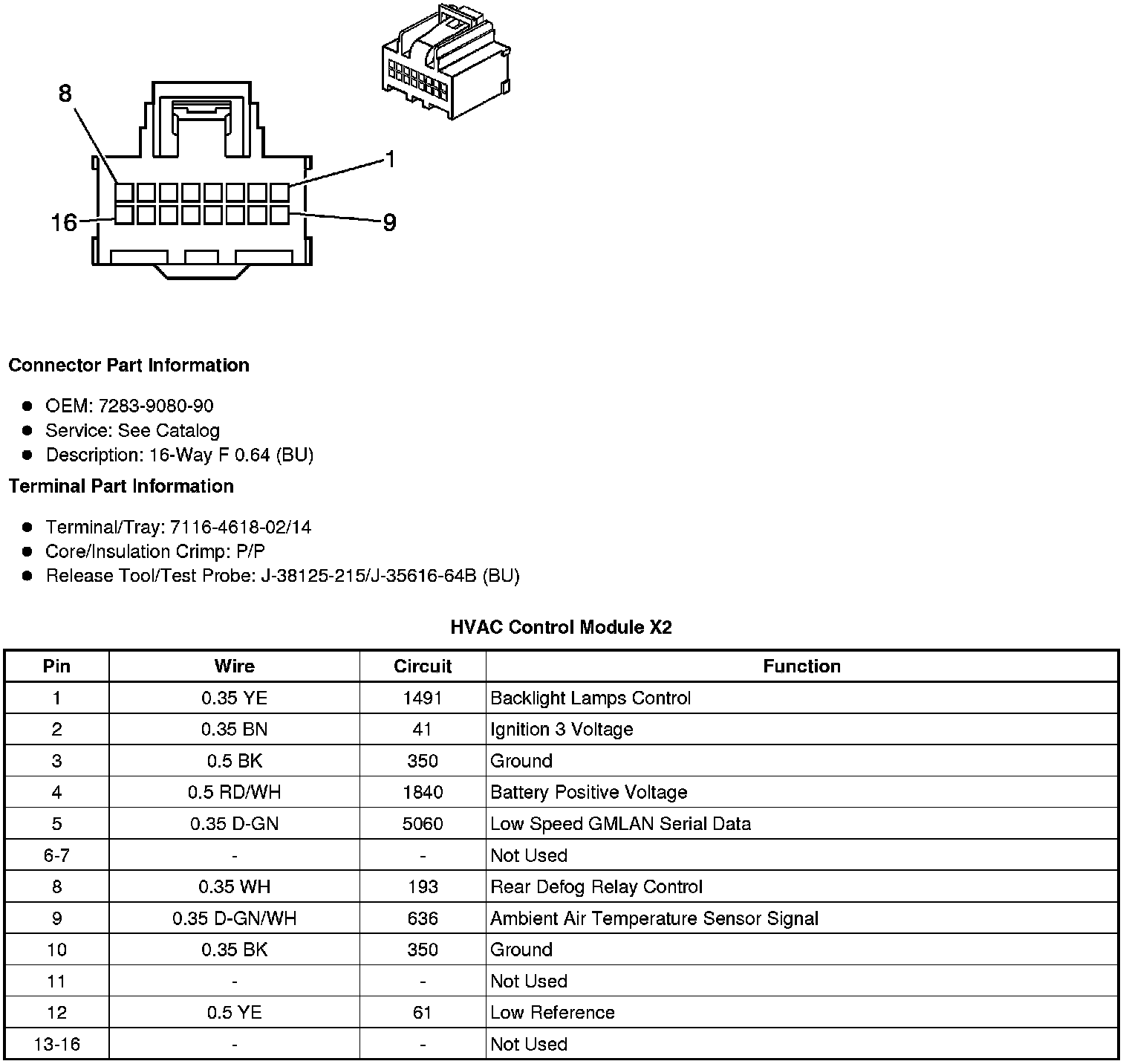

HVAC Control Module X2

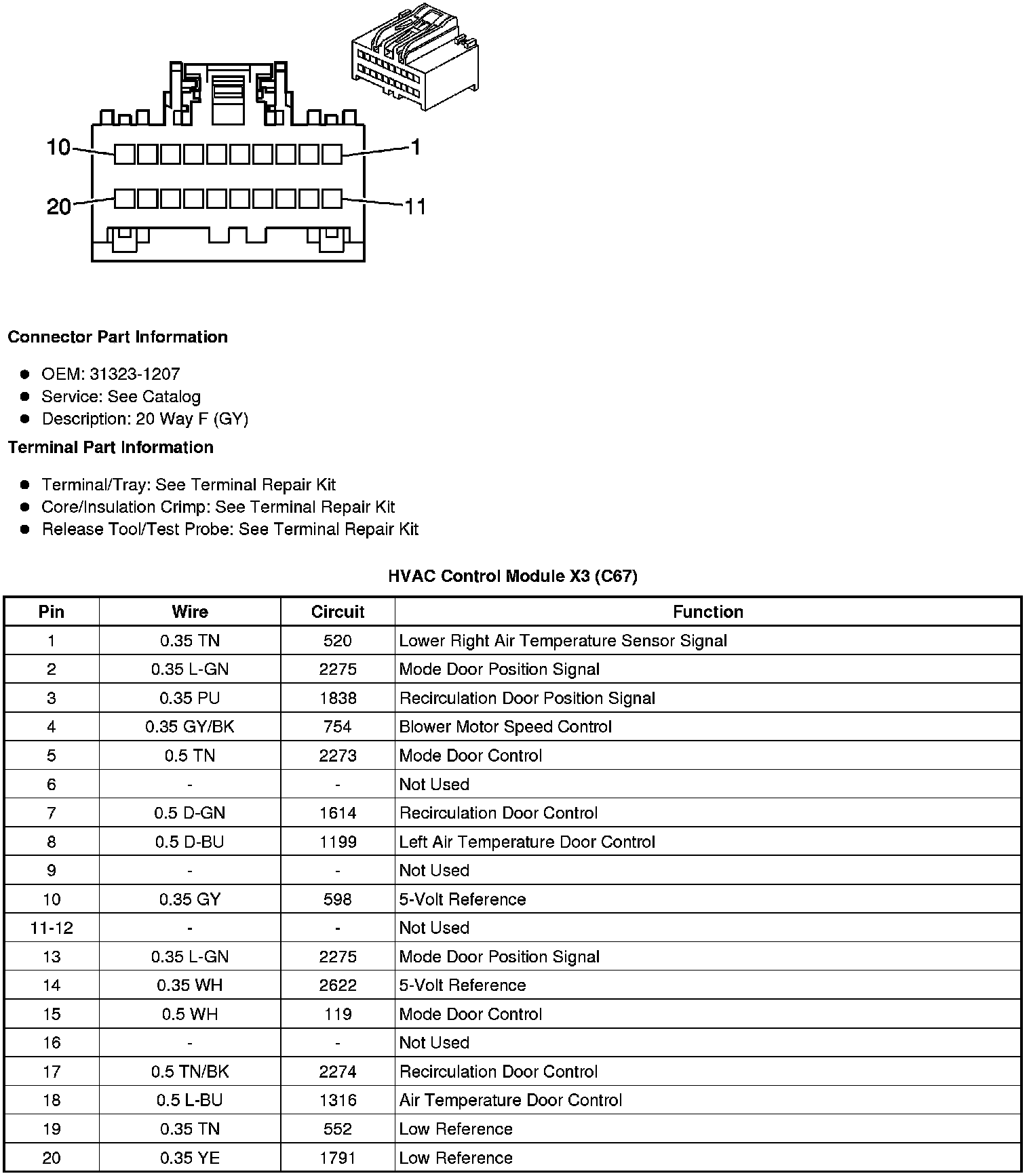

HVAC Control Module X3 (C67)

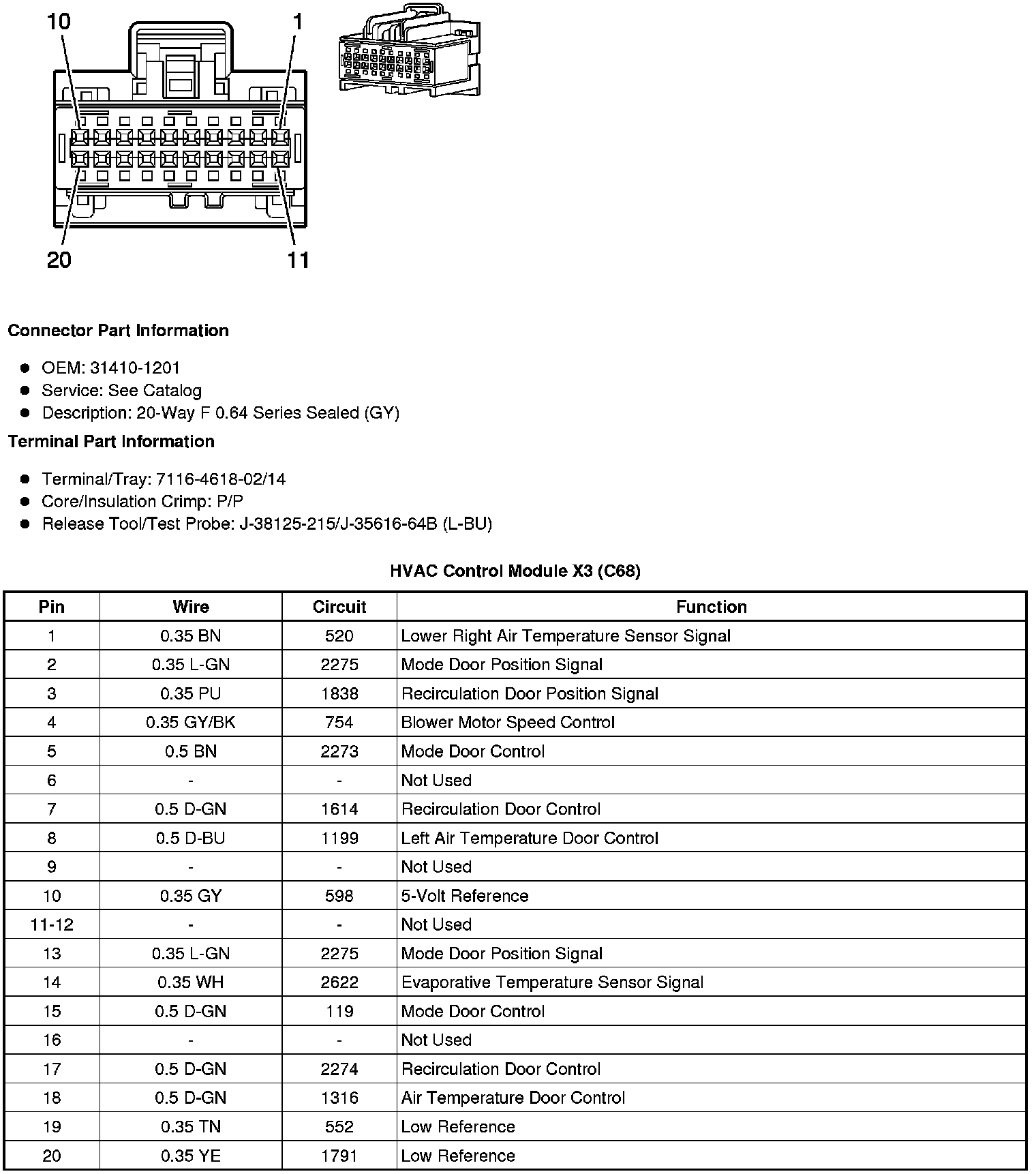

HVAC Control Module X3 (C68)
