Powertrain Component Views

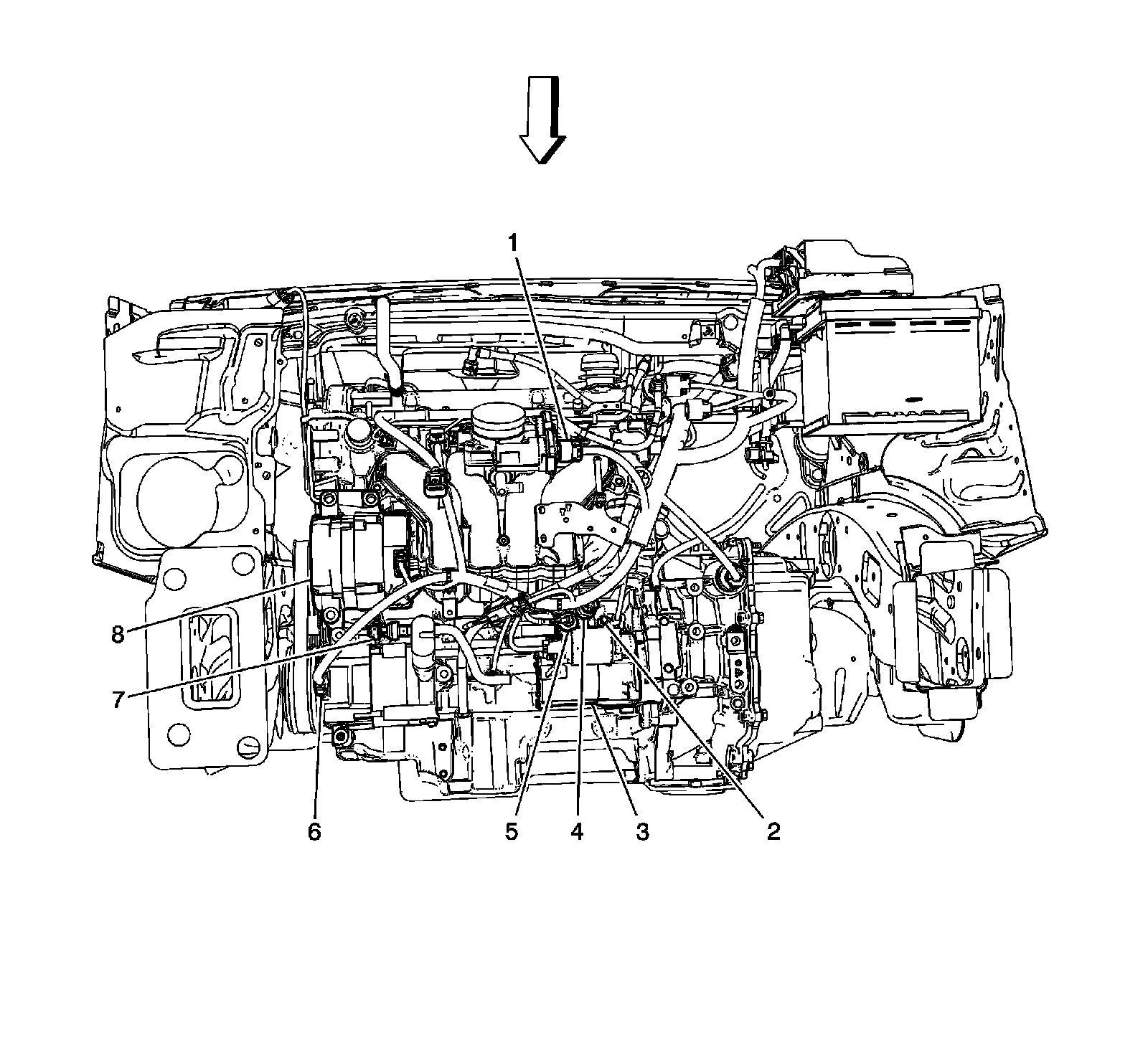

Front of the Engine

1 - Throttle Actuator Control (TAC) Module
2 - Crankshaft Position (CKP) Sensor
3 - Starter
4 - Engine Oil Pressure (EOP) Switch
5 - Knock Sensor (KS)
6 - A/C Compressor Clutch
7 - A/C Refrigerant Pressure Sensor
8 - Generator

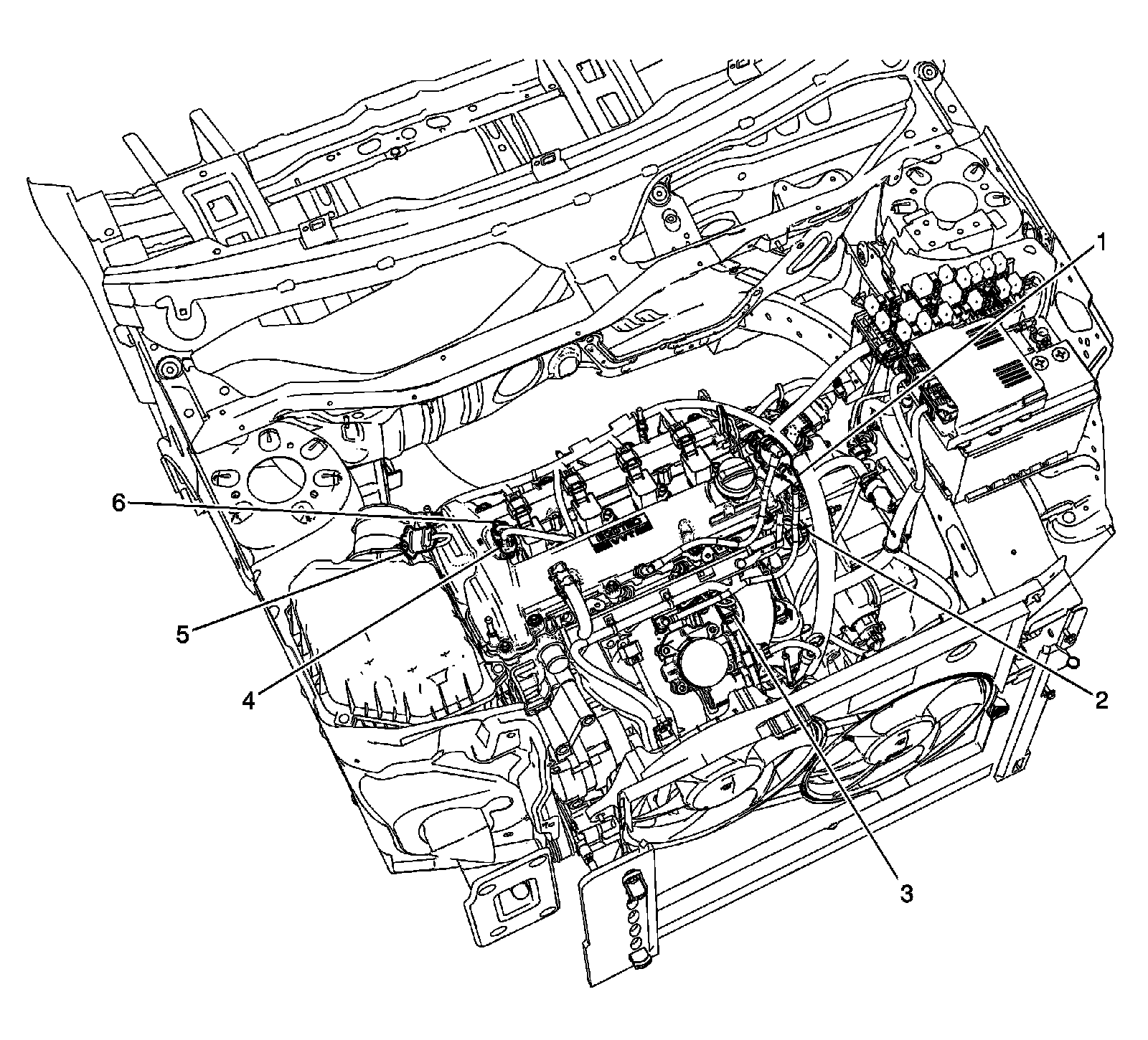

Top of the Engine)

1 - Evaporative Emissions (EVAP) Canister Purge Solenoid
2 - Camshaft Position (CMP) Sensor Exhaust
3 - Manifold Absolute Pressure (MAP) Sensor
4 - Camshaft Position (CMP) Actuator Solenoid Intake
5 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
6 - Camshaft Position (CMP) Actuator Solenoid Exhaust

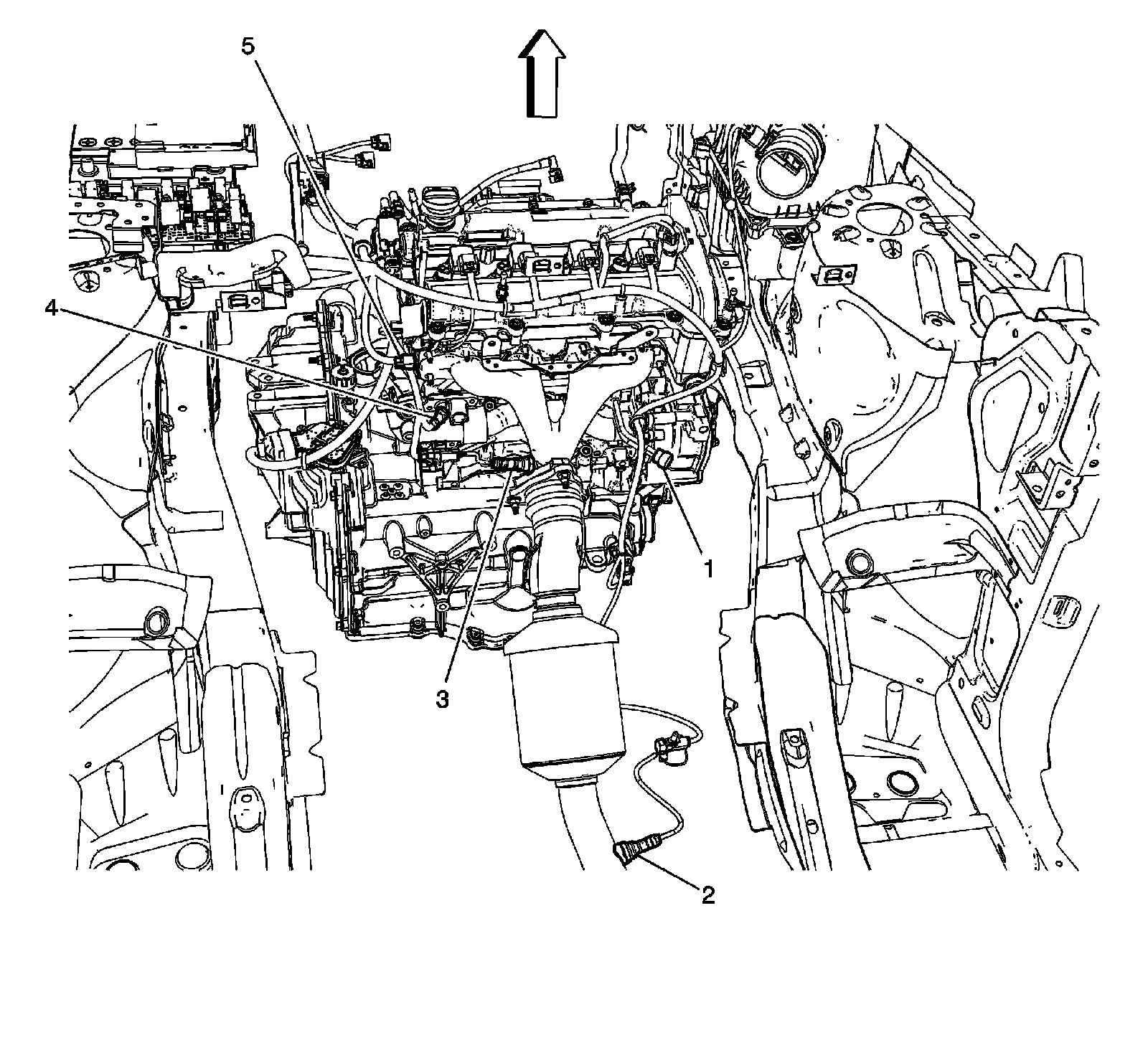

Rear of the Engine

1 - Engine Block Heater Connector (K05)
2 - Heated Oxygen Sensor (HO2S) 2
3 - Heated Oxygen Sensor (HO2S) 1
4 - Engine Coolant Temperature (ECT) Sensor
5 - Camshaft Position (CMP) Sensor - Intake

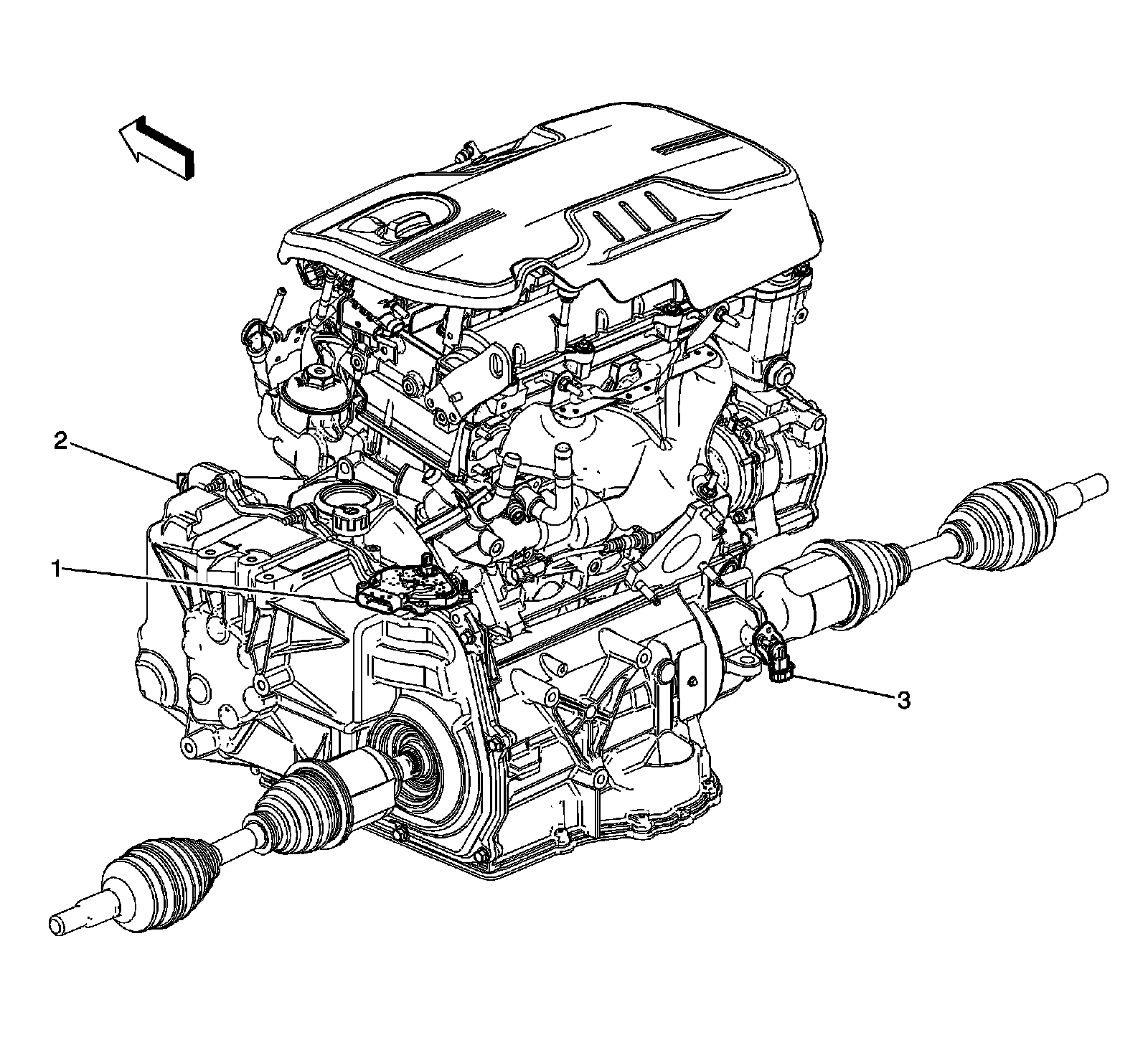

With MN5 Transmission

1 - Park/Neutral Position (PNP) Switch
2 - X112
3 - Vehicle Speed Sensor (VSS)

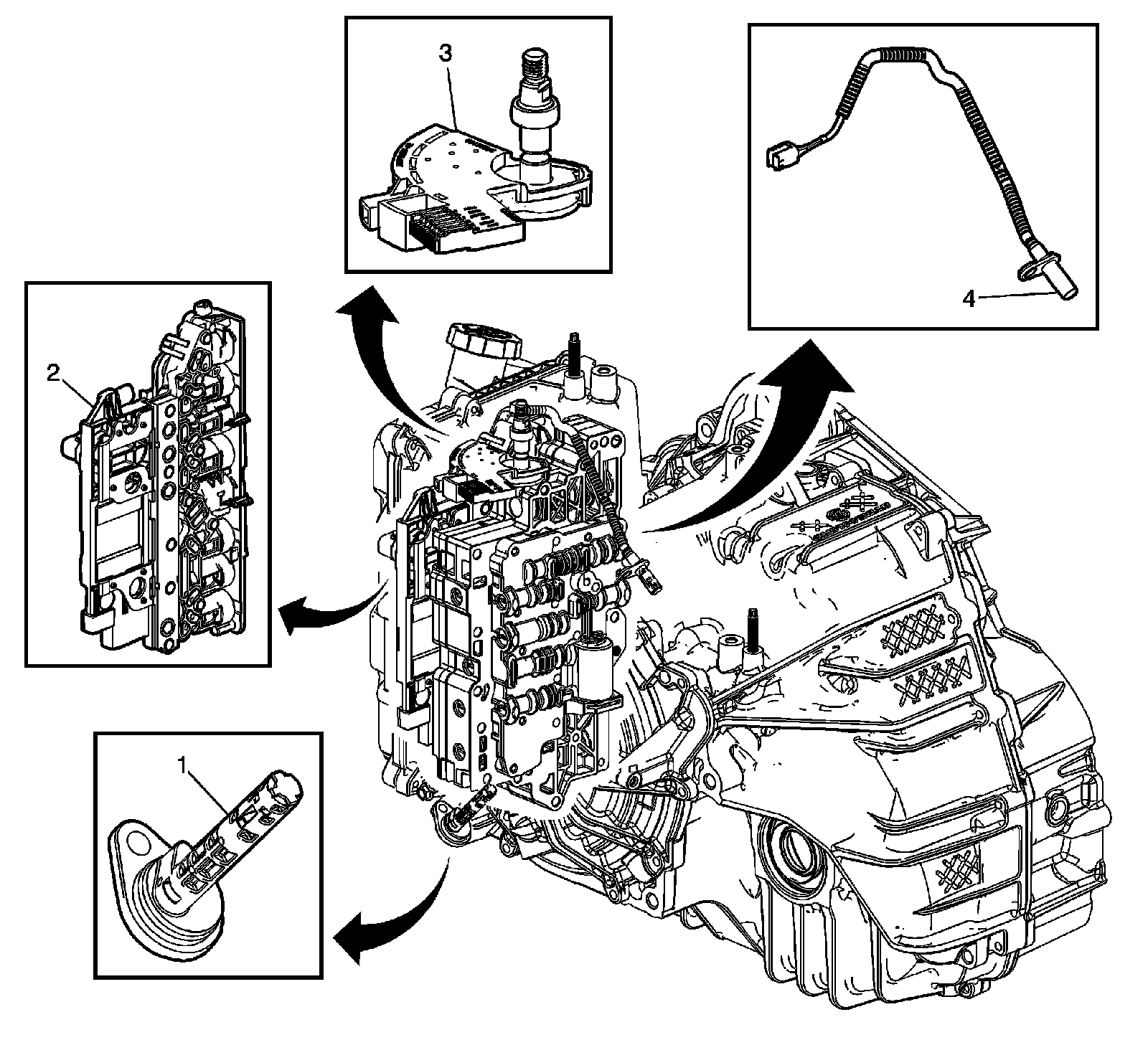

Transmission Components (MH2/MH4)

1 - Automatic Transmission Input Shaft Speed (AT ISS) Sensor (MH2/MH4)
2 - Internal Mode Switch (ISS) . Part of Valve Body Assembly
3 - Manual Shift Detent (w/Shaft Position Switch) Lever Assembly
4 - Automatic Transmission Output Shaft Speed (AT OSS) Sensor
