2008 Saturn Astra L4-1.8LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair
Knock Sensor Replacement
Removal Procedure
1. Open the hood.
Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution) .
2. Disconnect the battery.
* Remove the ground connection from the negative terminal.
* Loosen the nut.
3. Raise the vehicle by its full height.

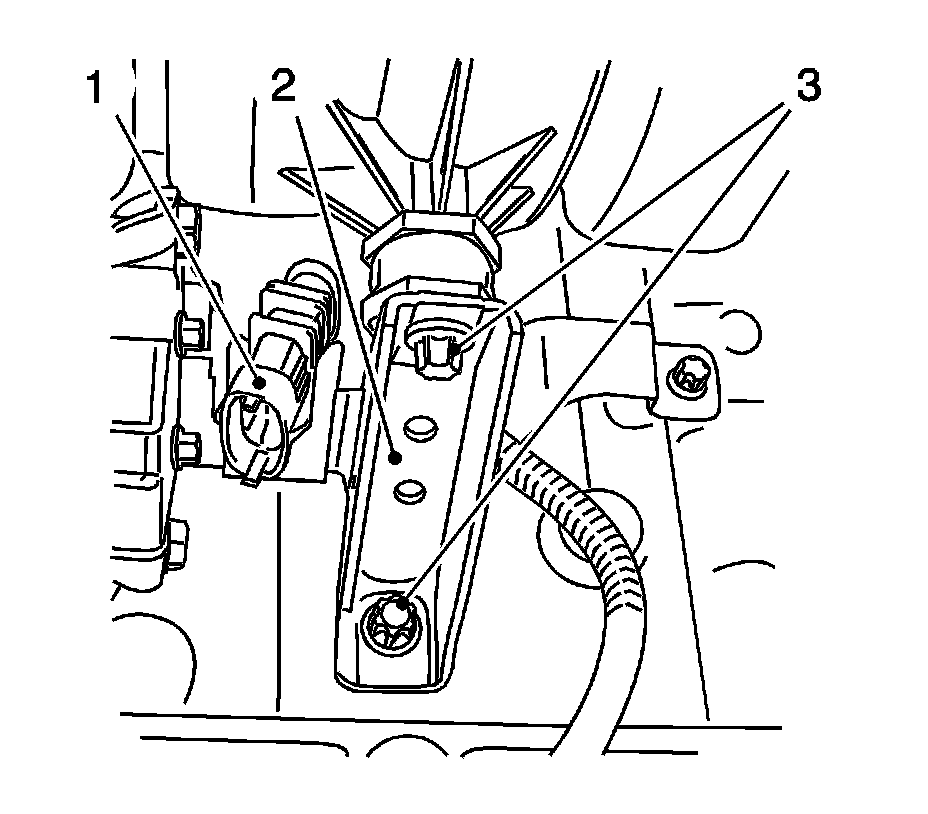

4. Remove the intake manifold support (2).
* Disconnect the wiring harness plug of the catalytic converter control oxygen sensor.
* Disconnect the wiring harness plug (1) from the bracket.
* Remove the 2 bolts (3).

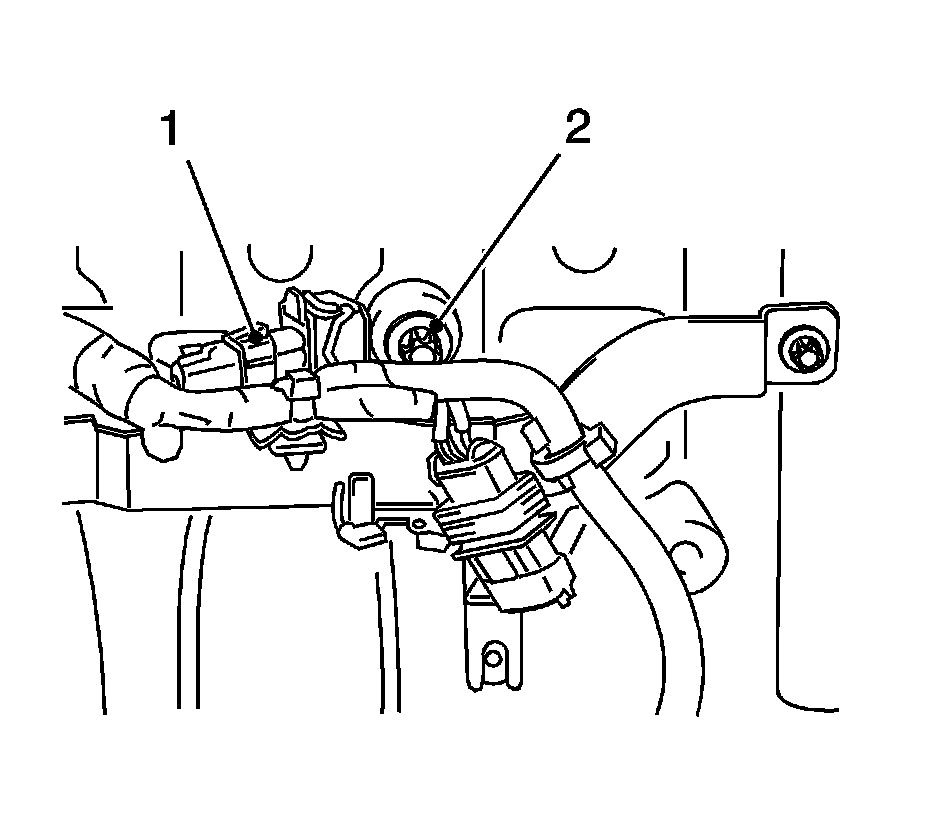

5. Disconnect the knock sensor wiring harness plug (1).
6. Remove the knock sensor.
Remove the bolt (2).
Installation Procedure
Notice: Refer to Fastener Notice (Fastener Notice) .
1. Install the knock sensor.
Tighten the bolt to 20 N.m (15 lb ft).
2. Install the wiring harness plug.
3. Install the intake manifold support.
Tighten the 2 bolts to 8 N.m (71 lb in).
* Install the wiring harness plug into the bracket.
* Connect the wiring harness plug for the catalytic converter control oxygen sensor.
4. Lower the vehicle by its full height.
5. Connect the battery.
Install the ground connection to the ground terminal.
Tighten the nut to 5 N.m (44 lb in).
6. For programming procedures, refer to Control Module References (Programming and Relearning) .
7. Close the hood.
