2008 Saturn Astra L4-1.8LFACTORY OEM SERVICE PROCEDURE
Coolant Temperature Sensor/Switch (For Computer): Service and Repair
Engine Coolant Temperature Sensor Replacement
Removal Procedure
1. Open the hood.
2. Raise the vehicle by its full height.
3. Drain the coolant.
* Place a drain pan underneath.
* Install a suitable hose to the drain connection (2).
* Open the coolant drain screw (1).
* Drain the coolant.
* Close the coolant drain screw.
4. Lower the vehicle by its full height.

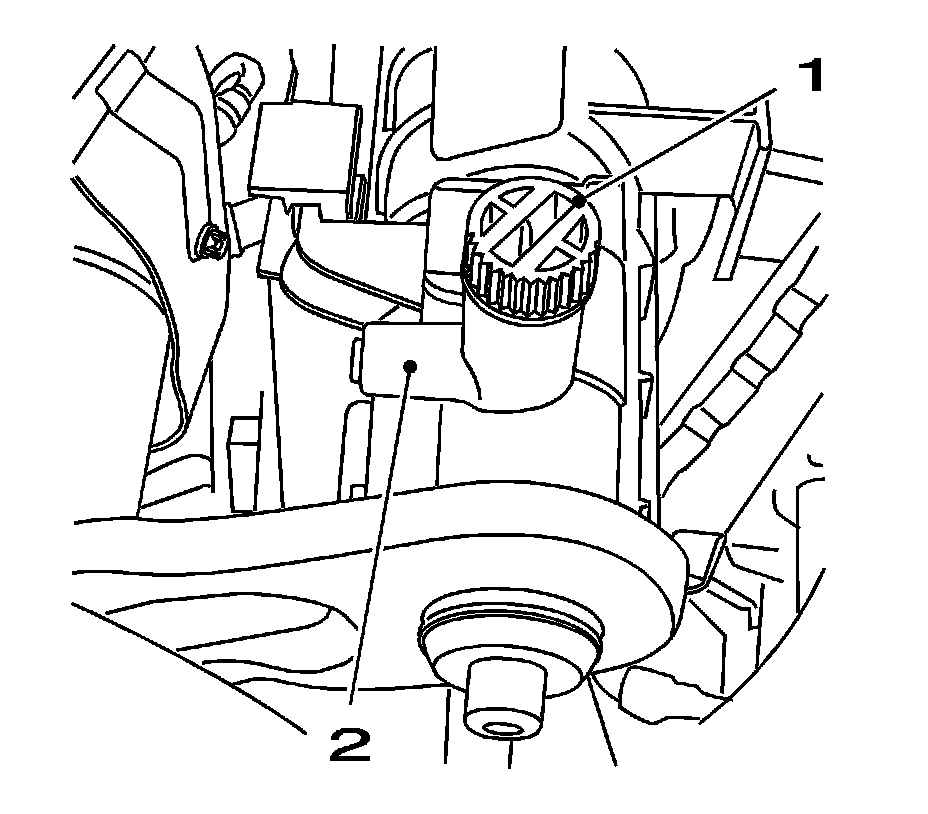

5. Remove the coolant temperature sensor.
* Disconnect the wiring harness plug (2).
* Disconnect the retaining clamp (1).
Installation Procedure
1. Install the coolant temperature sensor.
* Lock the retaining clamp.
* Install the wiring harness plug.
2. Fill and bleed the cooling system. Refer to Cooling System Draining and Filling (Service and Repair) .
3. Close the hood.
