2008 Saturn Astra L4-1.8LFACTORY OEM SERVICE PROCEDURE
Air Flow Meter/Sensor: Service and Repair
Mass Airflow Sensor Replacement
Removal Procedure
1. Open the hood.

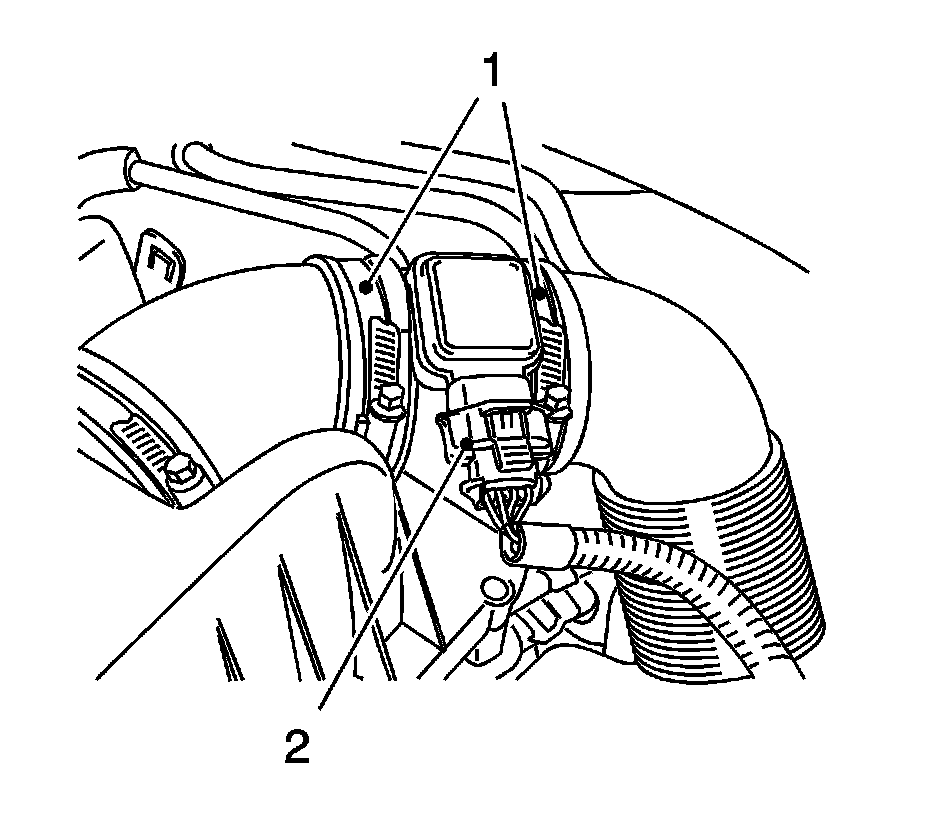

2. Remove the mass airflow sensor.
3. Disconnect the wiring harness plug (2).
4. Remove the 2 clamps (1).
Installation Procedure
Notice: Refer to Fastener Notice (Fastener Notice) .
1. Install the mass airflow sensor.
Tighten the 2 clamps to 3.5 N.m (31 lb in).
Install the wiring harness plug.
2. Close the hood.
