2007 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE

Power Steering Control Module (PSCM) C3

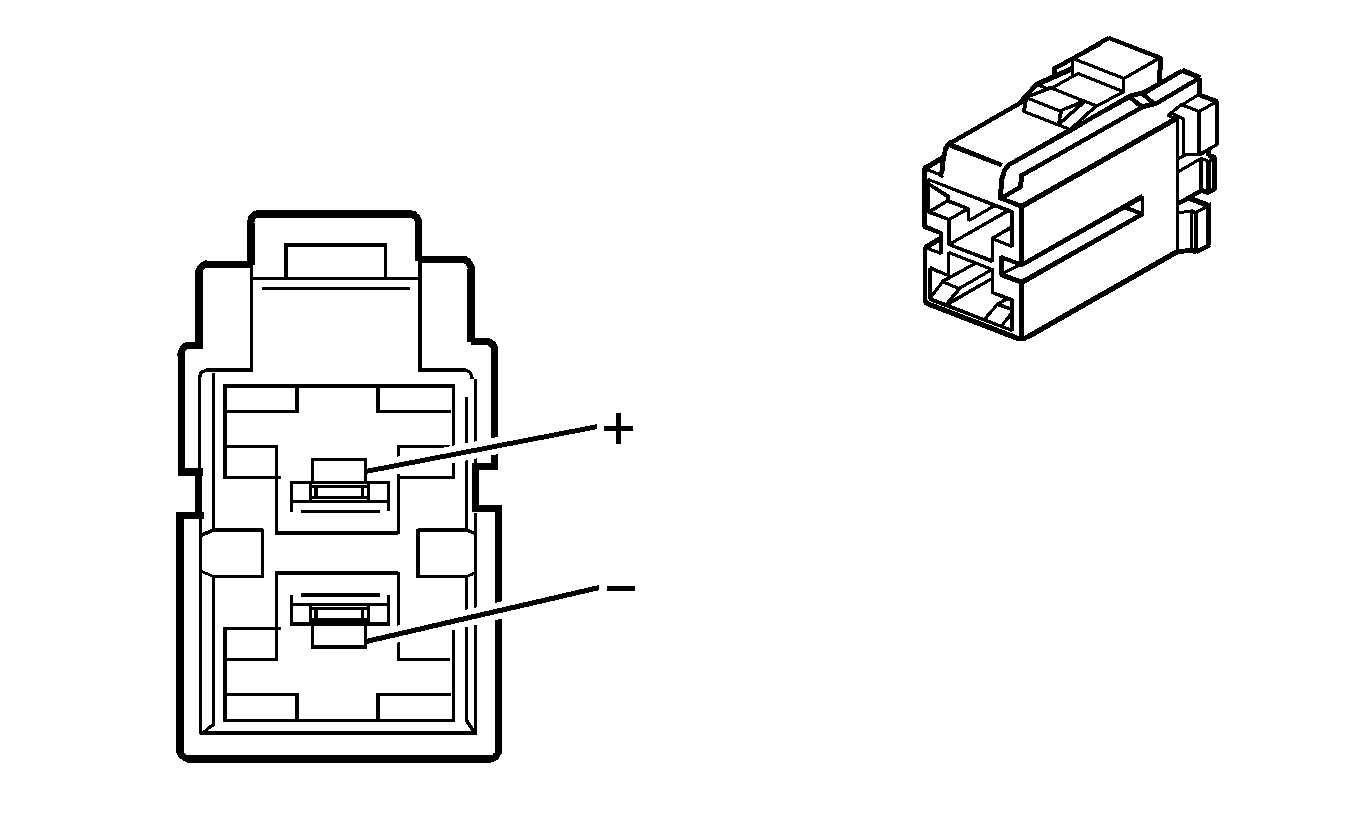

Fig 1: Power Steering Control Module (PSCM) C3 Connector End View

Courtesy of GENERAL MOTORS CORP.

Power Steering Control Module (PSCM) C3 Connector & Terminal Parts Information

Connector Part Information

OEM: 7123-4123-30
Service: 88952816
Description: 2-Way F (BU)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Power Steering Control Module (PSCM) C3 Terminal Identification

Pin	Wire Color	Circuit No.	Function
+	RD	5	Motor Control
-	BK	5	Motor Control
