2007 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE
Power Steering Control Module (PSCM) C2

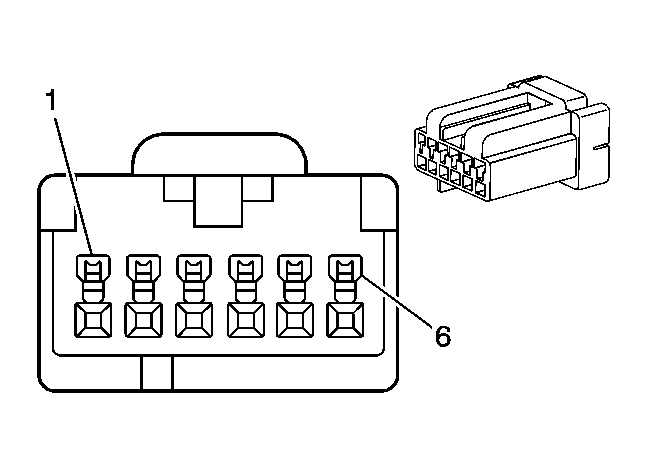

Power Steering Control Module (PSCM) C2 Connector & Terminal Parts Information
Connector Part Information
|
Terminal Part Information
|
Power Steering Control Module (PSCM) C2 Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1-3 | - | - | Not Used |
| 4 | PU | 1807 | Class 2 Serial Data |
| 5 | PU | 1807 | Class 2 Serial Data |
| 6 | PK | 1539 | Ignition 1 Voltage |
