2007 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE
Removal Procedure
CAUTION:
Refer to Gasoline/Gasoline Vapors Caution
.
- Remove the fuel pump module. Refer to Fuel Pump Module Replacement .

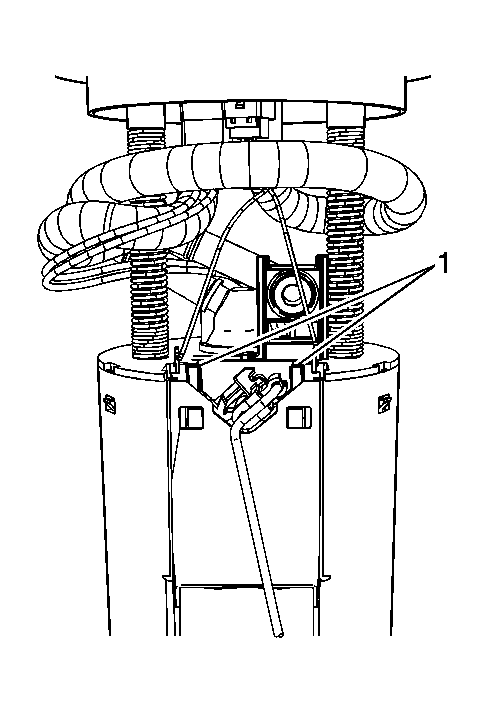

- Open the fuel pressure regulator retainers (1).
- Slide the fuel pressure regulator out slightly from the module.

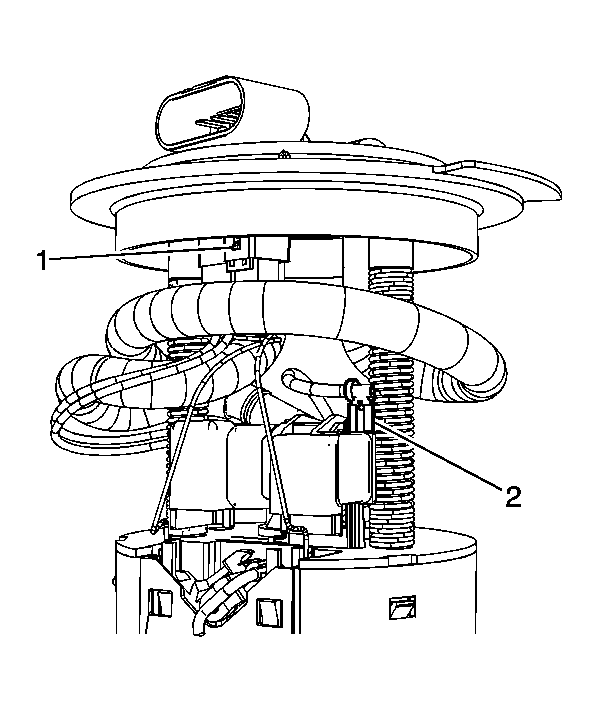

- Using a small pick, disengage the fuel level sensor electrical connector retainer (1).
- Disconnect the fuel level sensor electrical connector from the module cover.
- Remove the fuel pressure regulator wire connector (2) from the fuel pressure regulator.
- Remove the fuel pressure regulator.

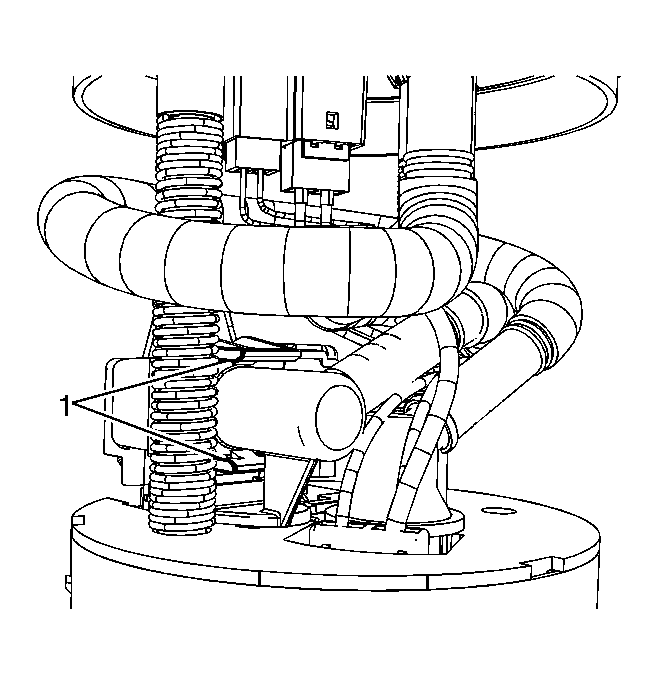

- Push in the fuel level sensor retaining tabs (1) in order to disengage the sensor tabs from the module bucket.

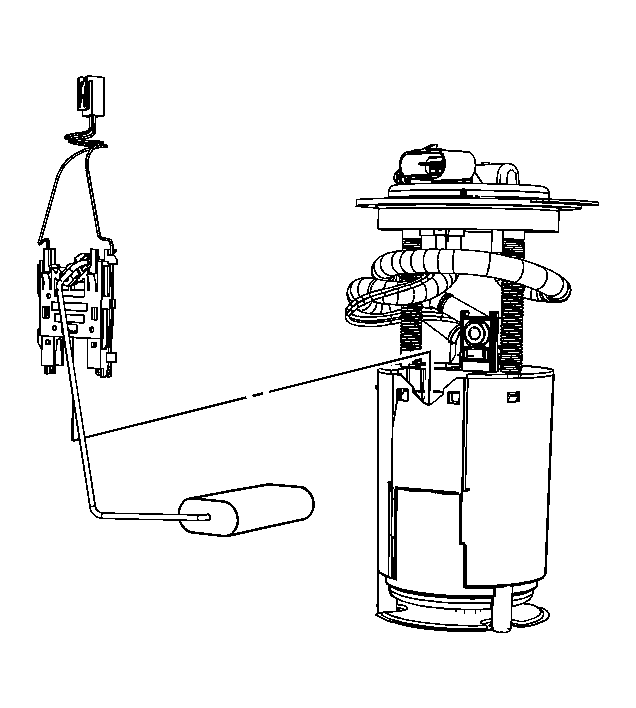

- Slide the fuel level sensor up and out from the module bucket.
