2007 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE

Mirror Component Views

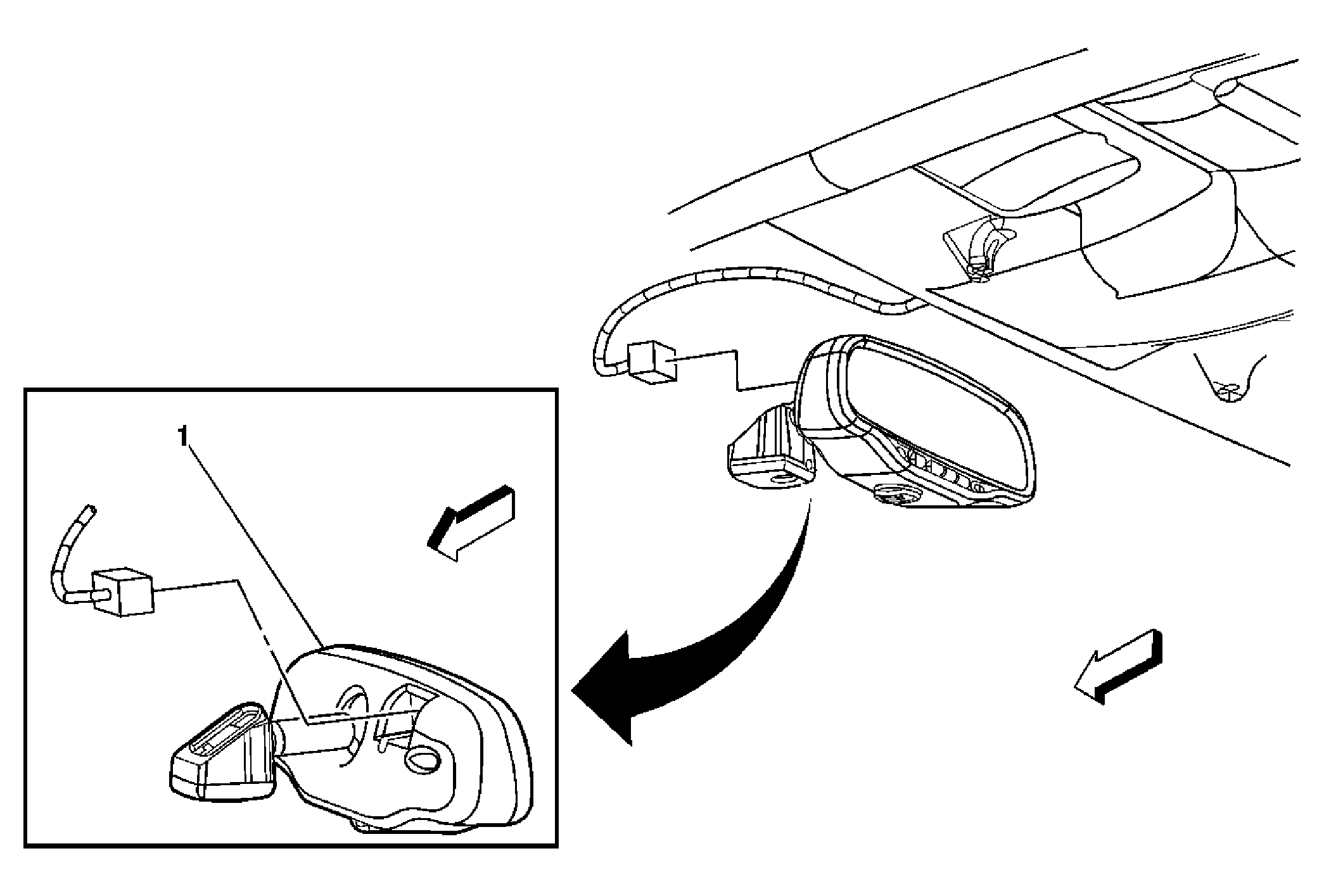

Fig 1: Top Center Of Windshield Component View
GM897903Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Rear View Mirror

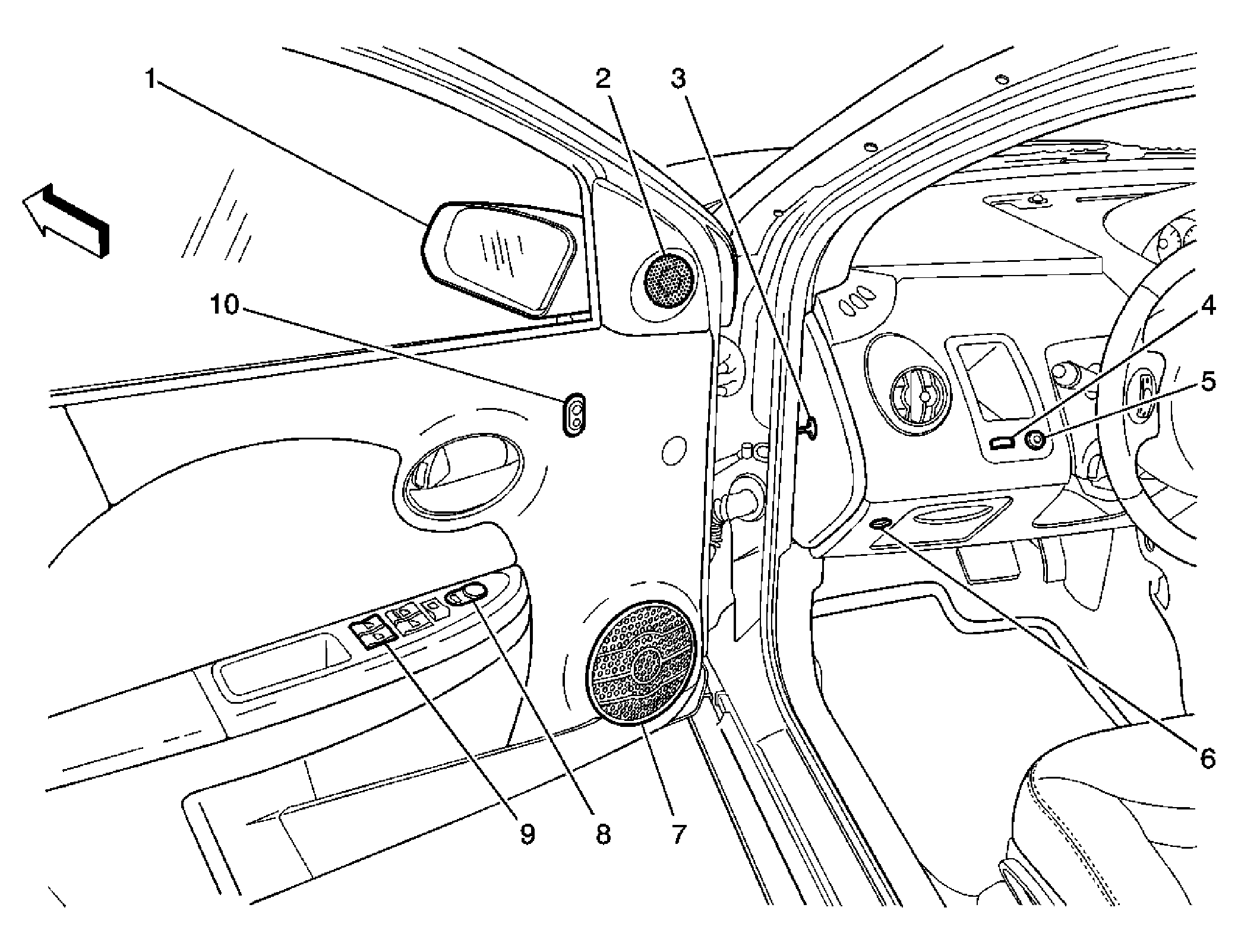

Fig 2: Driver Door Component View
GM1538473Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Outside Rearview Mirror
2 LF Door Tweeter Speaker (UZ6)
3 Driver Door Jamb Switch
4 Instrument Panel (I/P) Dimmer Switch
5 Fog Lamp Switch (T37)
6 Rear Compartment Lid Release Switch
7 LF Door Speaker
8 Outside Rearview Mirror Switch (DG7)
9 Window Switch - Driver (A31)
10 Door Lock Switch - Driver

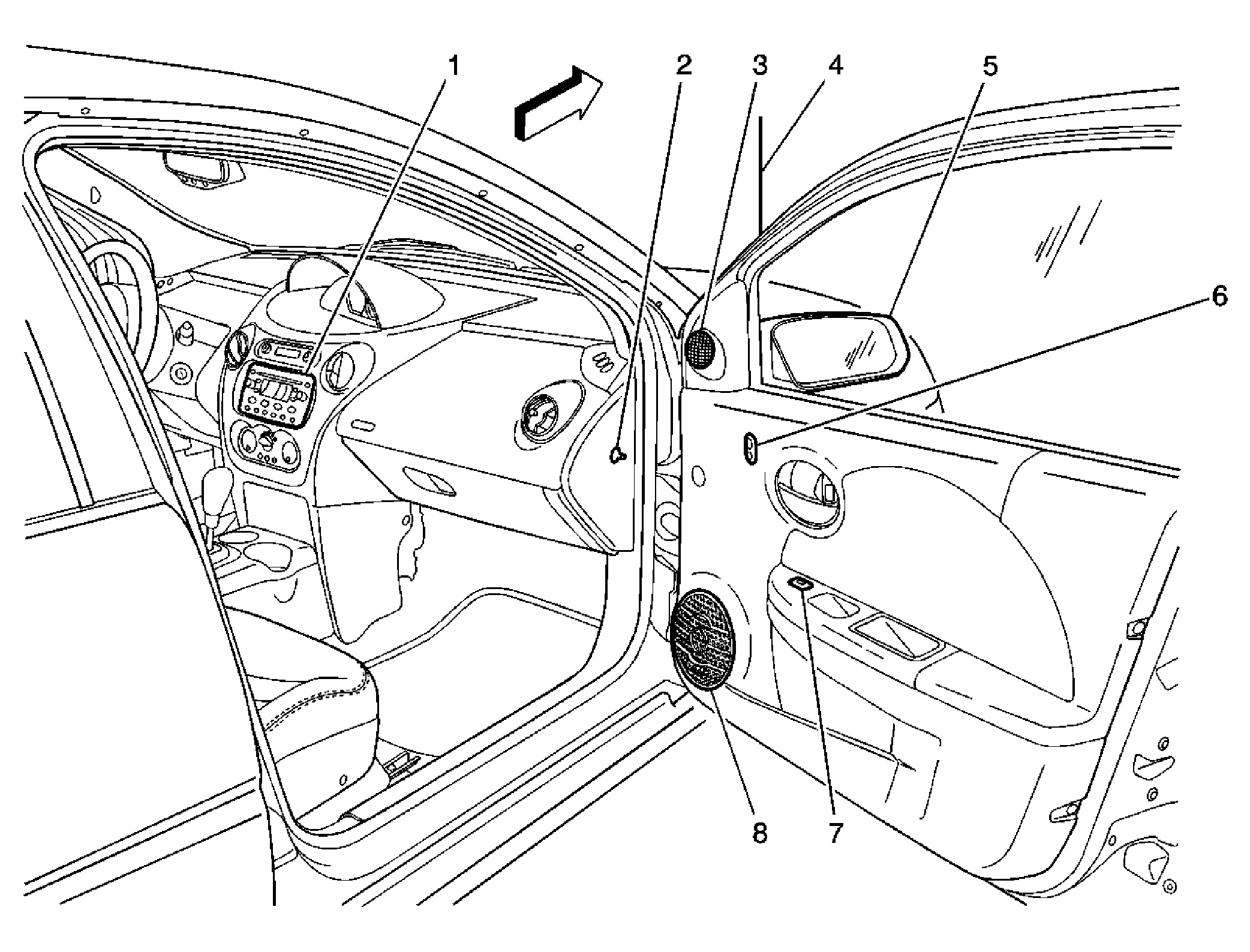

Fig 3: Front Passenger Door Component View
GM1538474Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Radio
2 Passenger Door Jamb Switch
3 RF Door Tweeter Speaker (UZ6)
4 Radio Antenna
5 Passenger Outside Rearview Mirror
6 Front Passenger Door Lock Switch
7 Front Passenger Window Switch (A31)
8 RF Door Speaker

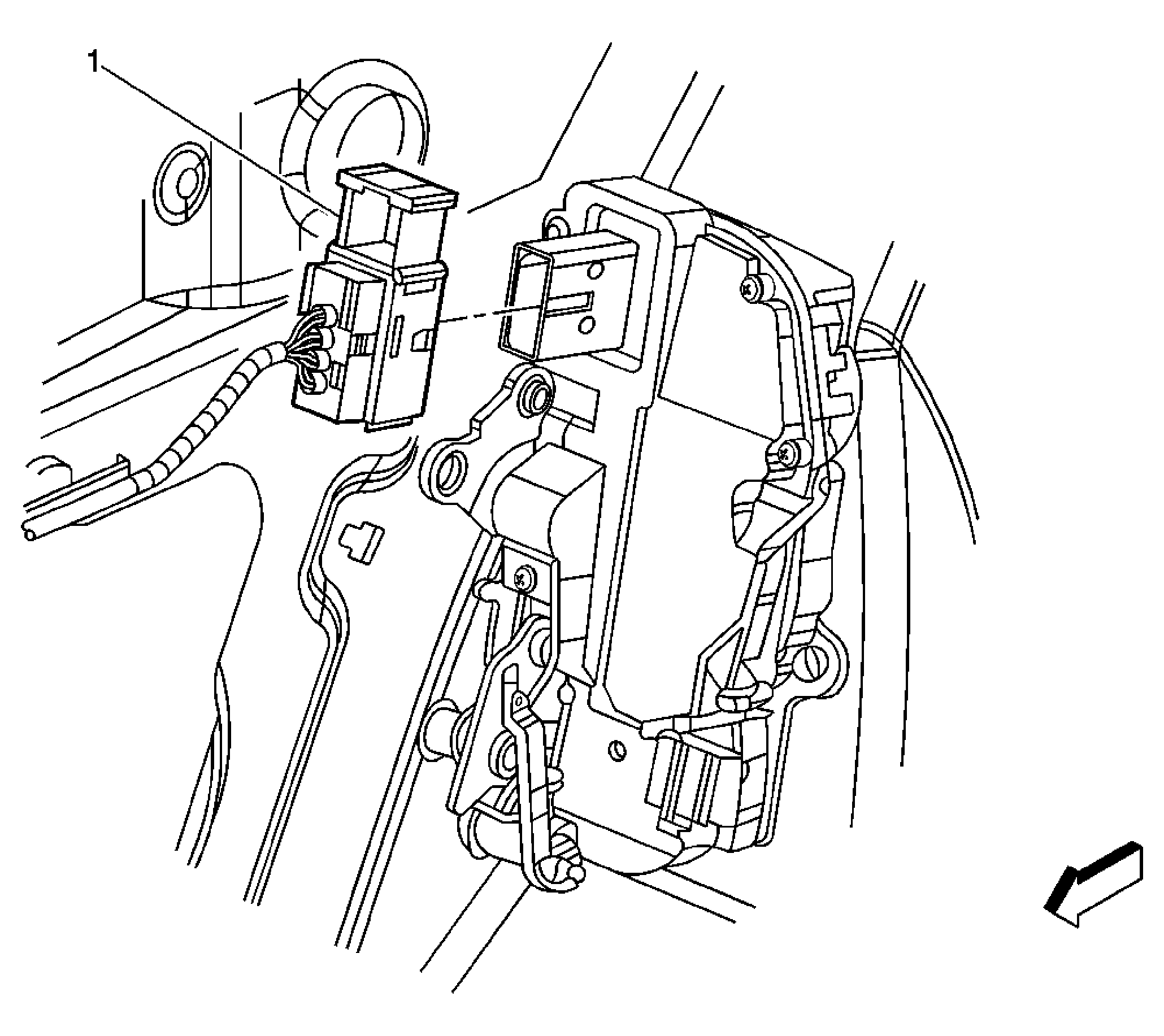

Fig 4: Right Front Door (AU3) Component View
GM897789Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Latch - Front Passenger, Driver Similar

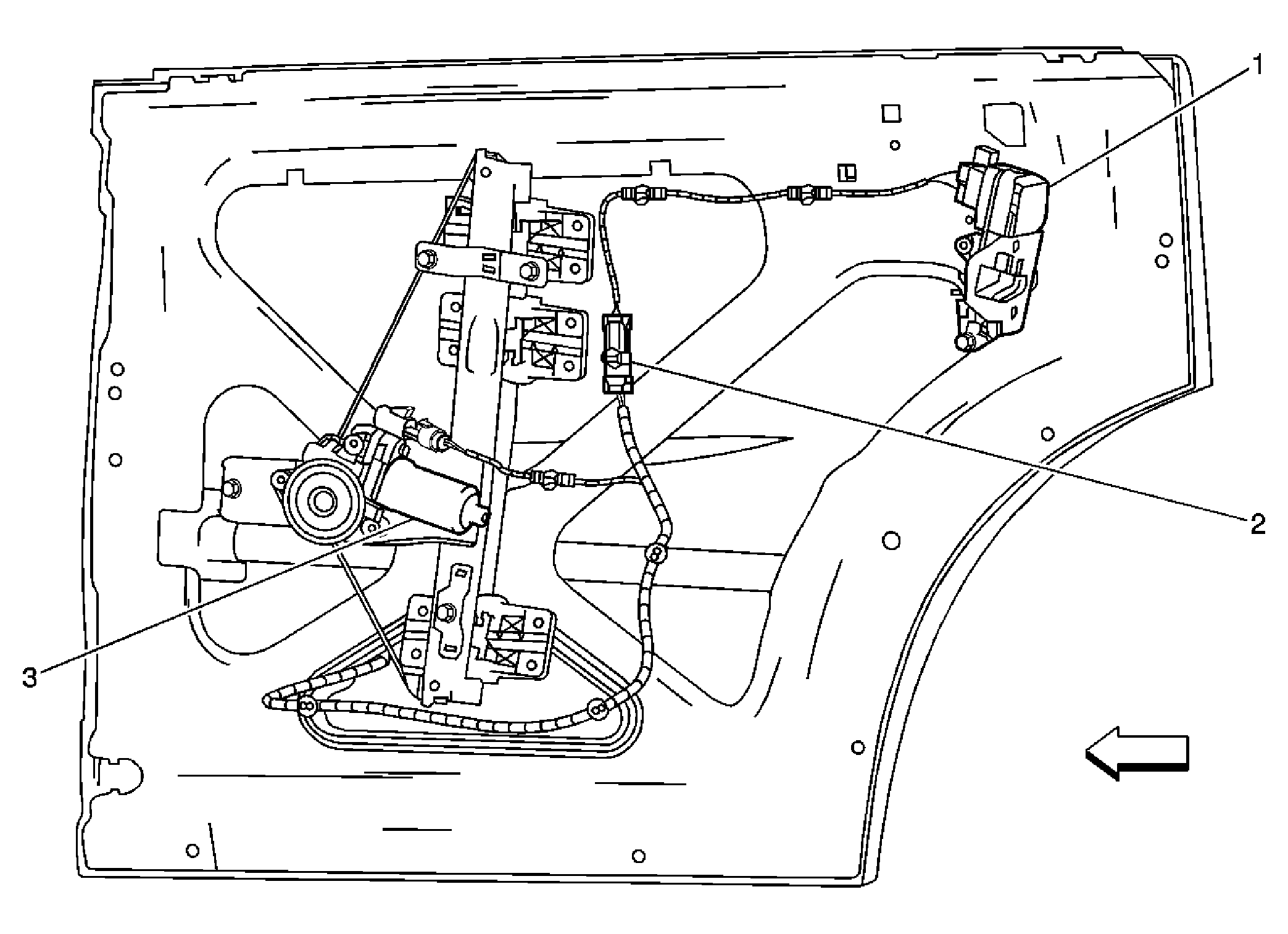

Fig 5: RR Door (Sedan) Component View
GM1539166Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Door Latch - RR; LR Similar
2 C860; C759 Similar in LR Door
3 Window Motor - RR (A31); LR Similar

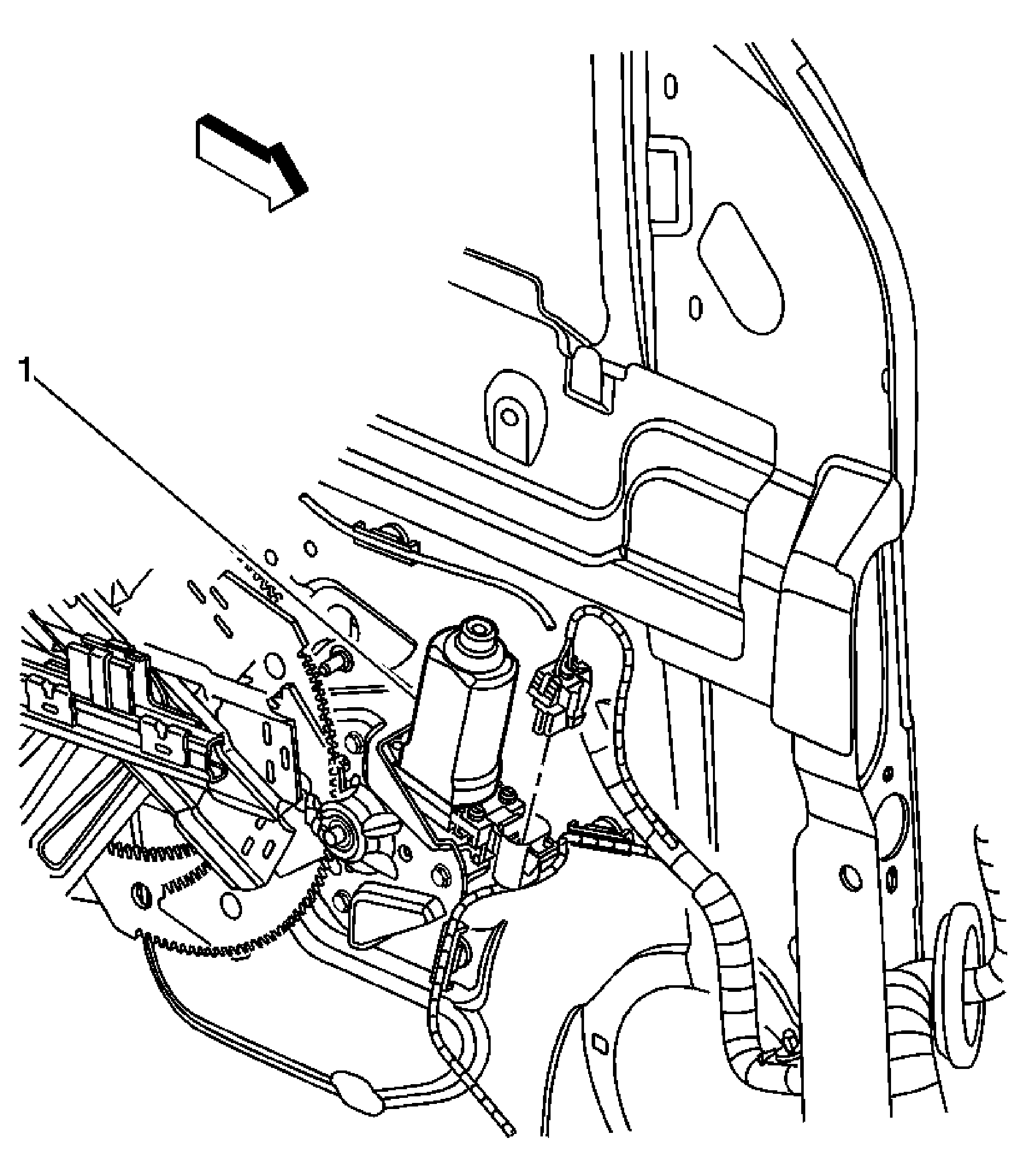

Fig 6: Left Front Door (A31) Component View
GM898055Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Motor - LF, RF Similar

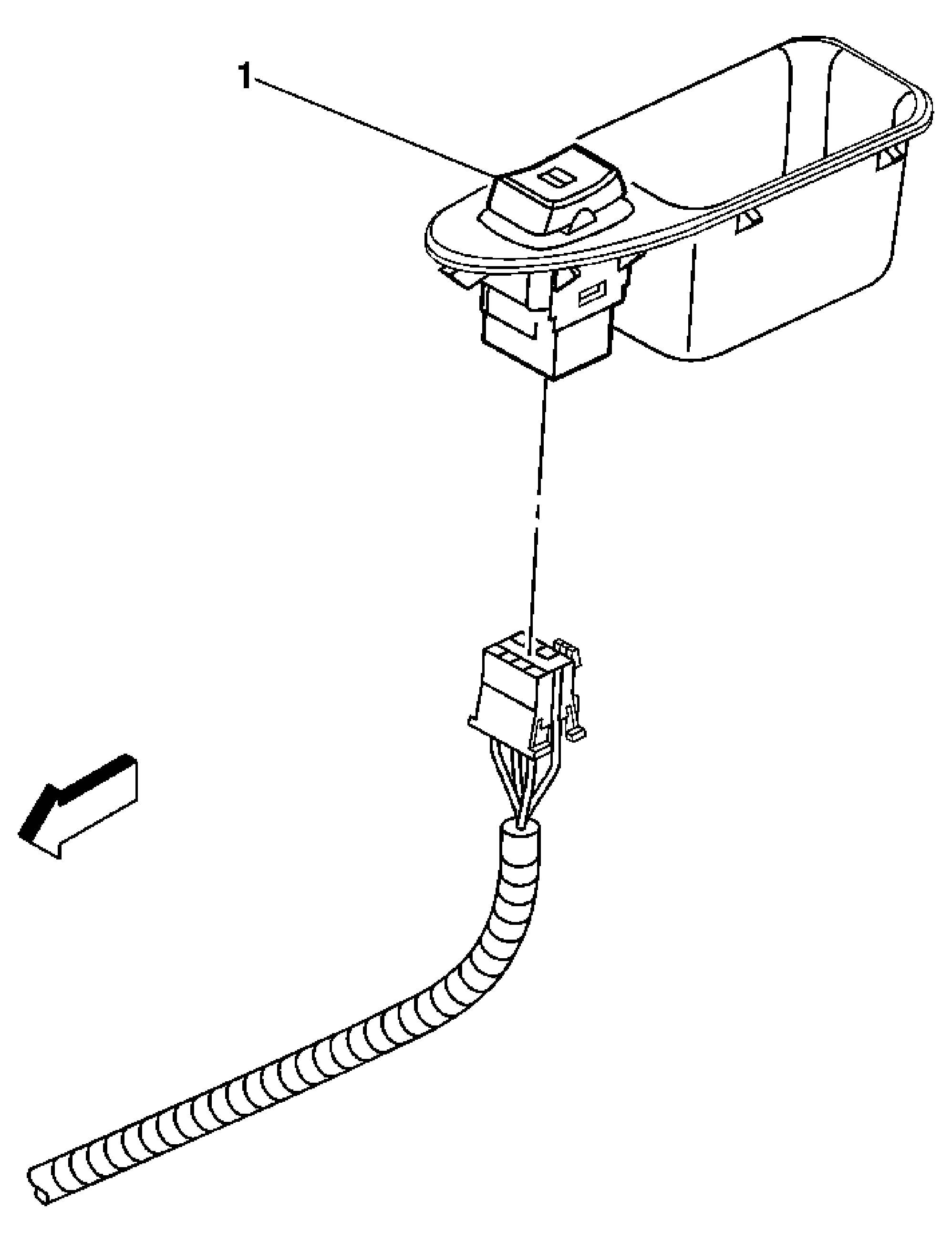

Fig 7: Side Door Window Switch (A31) Component View
GM898057Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Window Switch - RR (LR - Similar)
