2007 Saturn ION L4-2.0L SCFACTORY OEM SERVICE PROCEDURE
Wiper Control Module: Service and Repair
Wiper Drive System Module Replacement
Removal Procedure
1. Remove the wiper arms.
2. Remove the air inlet grille panel.
3. Disconnect the wiring connector from the wiper motor.

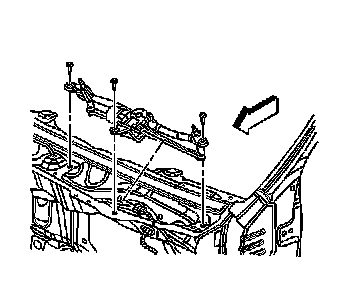

4. Remove the fasteners attaching the wiper module to the plenum.
5. Remove the wiper module assembly from the plenum.
Installation Procedure
1. Install the wiper module assembly into the plenum.
Notice: Refer to Fastener Notice.
2. Install the fasteners attaching the wiper module assembly to the plenum.
Tighten the fasteners to 10 N.m (89 lb in)
3. Connect the wiring connector to the wiper motor.
4. Install the air inlet grille panel.
5. Install the wiper arms.
