2007 Saturn ION L4-2.0L SCFACTORY OEM SERVICE PROCEDURE
Ignition Switch: Service and Repair

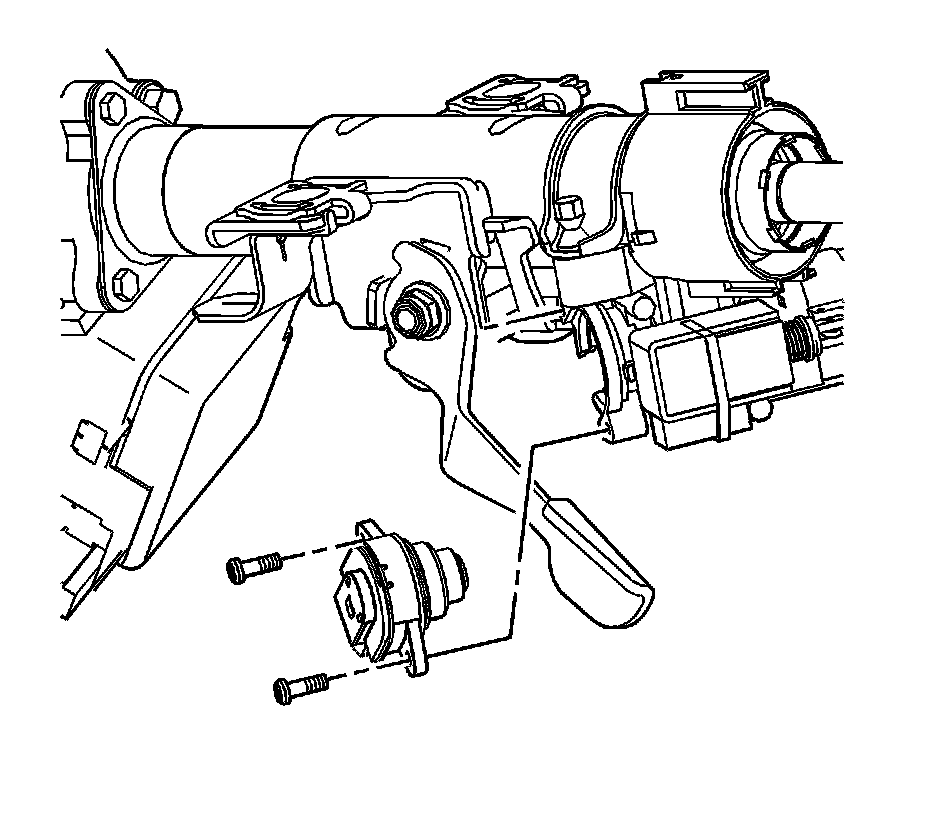

Ignition and Start Switch Replacement
Removal Procedure
1. Remove the steering column trim covers.
2. Disconnect the ignition switch harness connector.
3. Turn the ignition switch to the run position.
4. Remove the ignition switch screws.
Important: The ignition switch must be in the run position during removal.
5. Remove the ignition switch from the steering column.
Installation Procedure
Notice: Refer to Fastener Notice.
1. Install the ignition switch and screws on to the steering column.
Tighten the screws to 2 N.m (17 lb in).
2. Connect the ignition switch harness connector.
3. Install the steering column trim covers.
Important: If the ignition switch is replaced and a learn procedure is not performed, the engine will crank but not start or will start and stall immediately.
4. Perform the vehicle theft deterrent system learn procedure. Refer to Programming Immobilizer System Components.
