2007 Saturn ION L4-2.0L SCFACTORY OEM SERVICE PROCEDURE
Scan Tool Data List
Scan Tool Data List
Use the scan tool data values under the following conditions:
* The Diagnostic System Check - Vehicle is complete.
* The On-Board Diagnostics are functioning properly.
* There are no diagnostic trouble codes (DTCs) present.

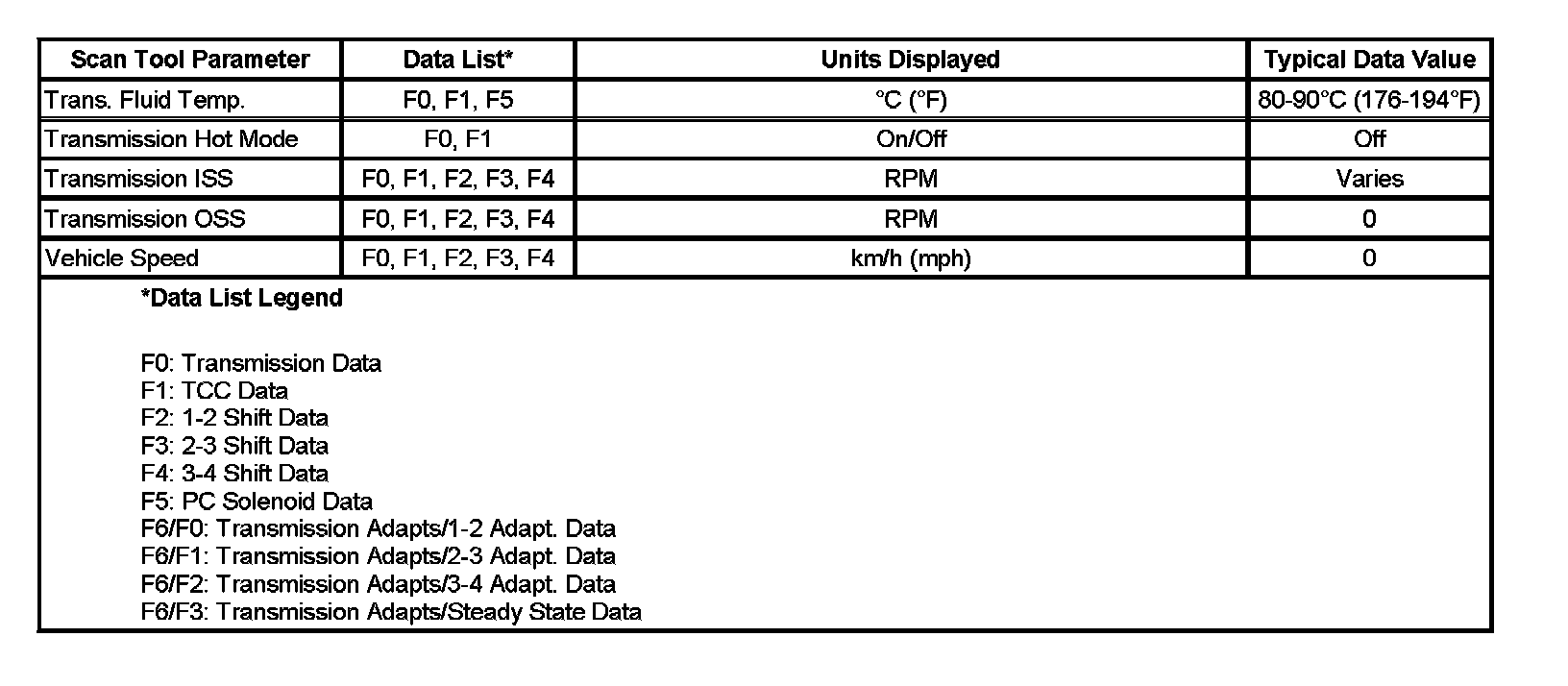

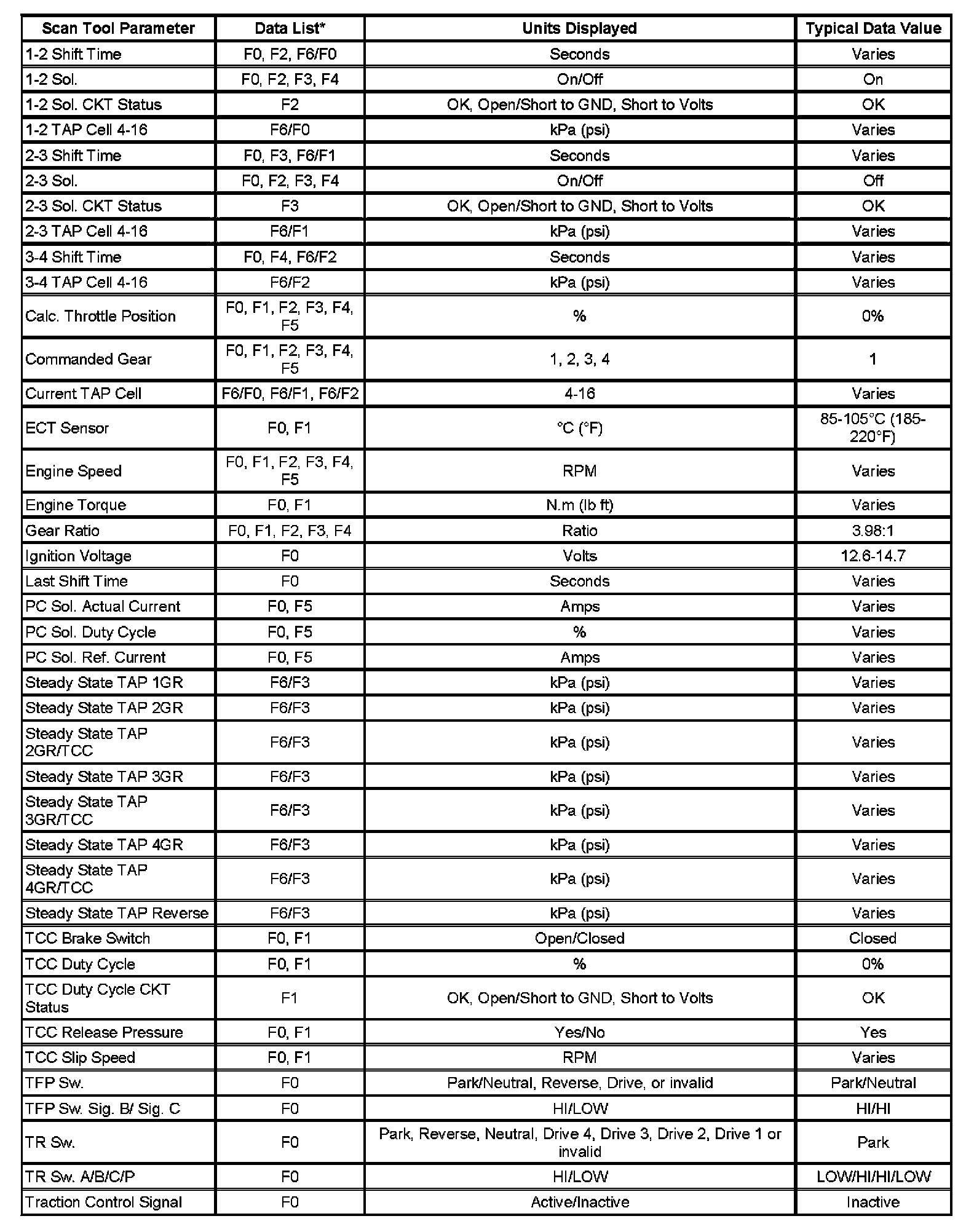

The values below represent a typical display recorded from a properly functioning system.
Important: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.
Only the parameters listed below are used in this manual for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.
Scan tool values below were recorded under the following conditions:
* Engine at idle
* Upper radiator hose hot
* Closed throttle
* Transmission in Park
* Closed Loop operation
* Accessories OFF
* Brake pedal not applied
