2007 Saturn ION L4-2.0L SCFACTORY OEM SERVICE PROCEDURE

Powertrain Management: Locations



Engine Controls Component Views

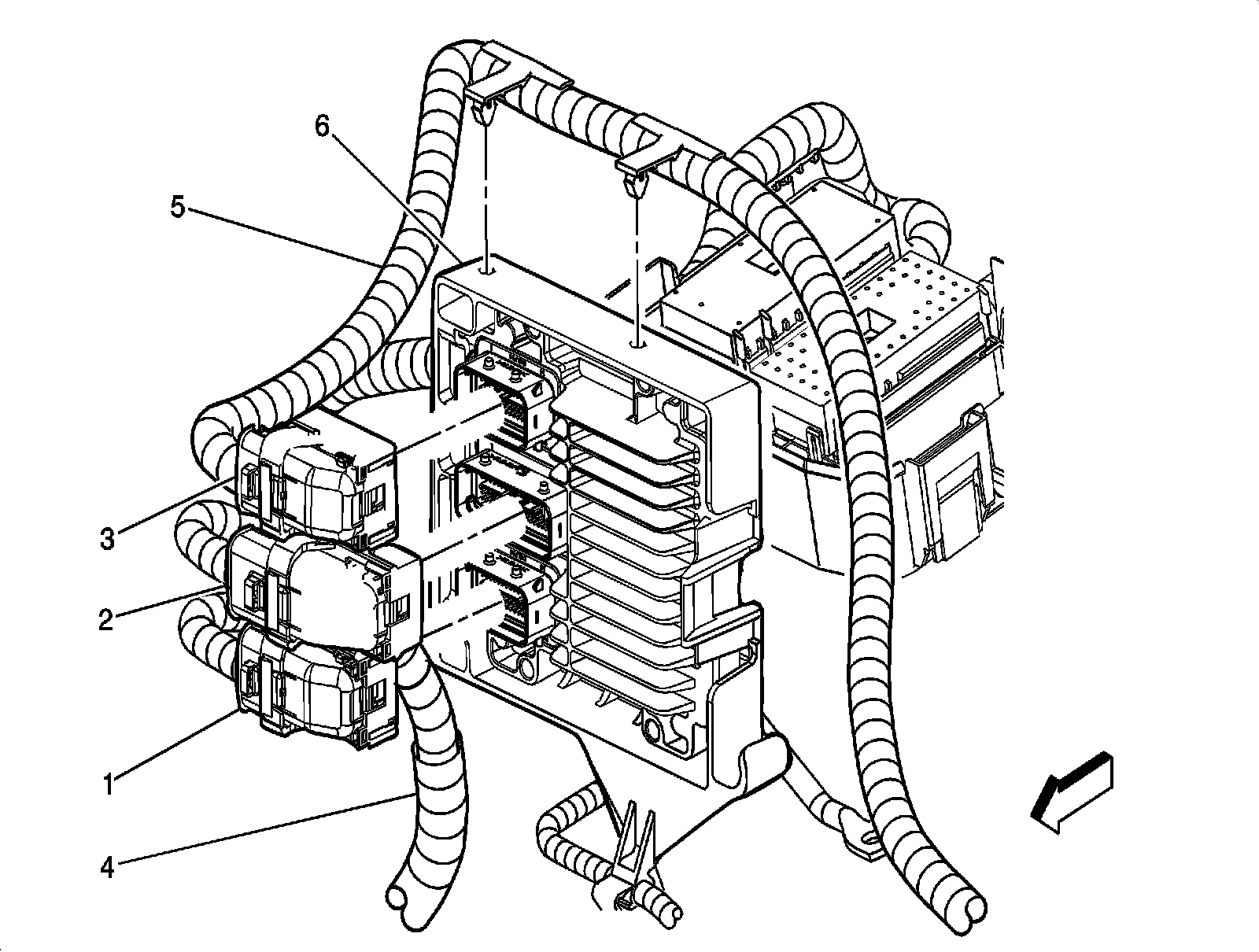

Powertrain Control Module (PCM)

Factory service manual diagram



1 - Powertrain Control Module (PCM) C1
2 - Powertrain Control Module (PCM) C2
3 - Powertrain Control Module (PCM) C3
4 - Engine Harness
5 - Body Harness
6 - Powertrain Control Module (PCM)

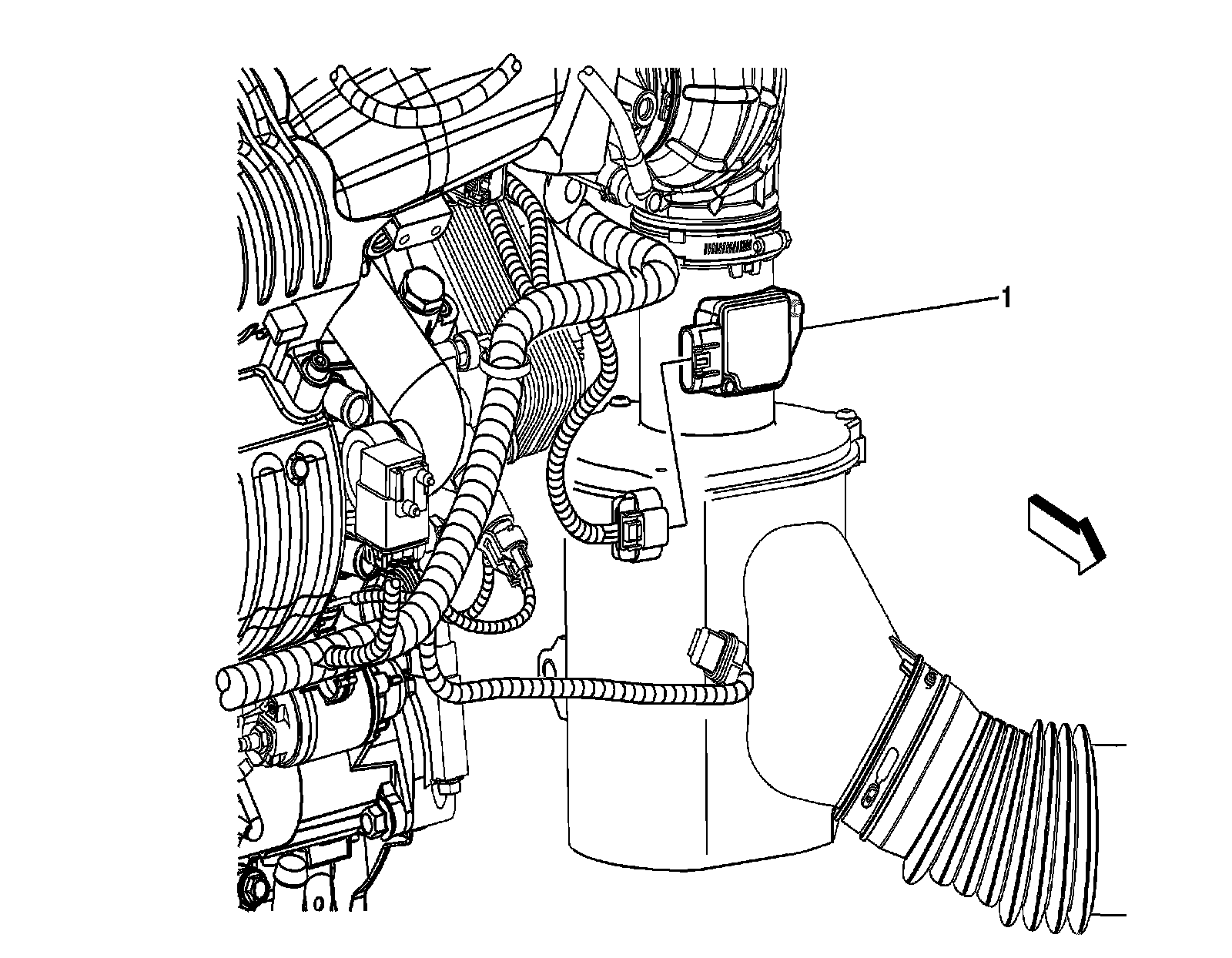

Air Cleaner View

Factory service manual diagram



1 - Mass Air Flow (MAF)/Inlet Air Temperature (IAT) Sensor

Upper Right Side of the Engine

Factory service manual diagram



1 - Engine Coolant Temperature (ECT) Sensor
2 - Supercharger By-Pass Valve Solenoid
3 - Manifold Absolute Pressure (MAP) Sensor

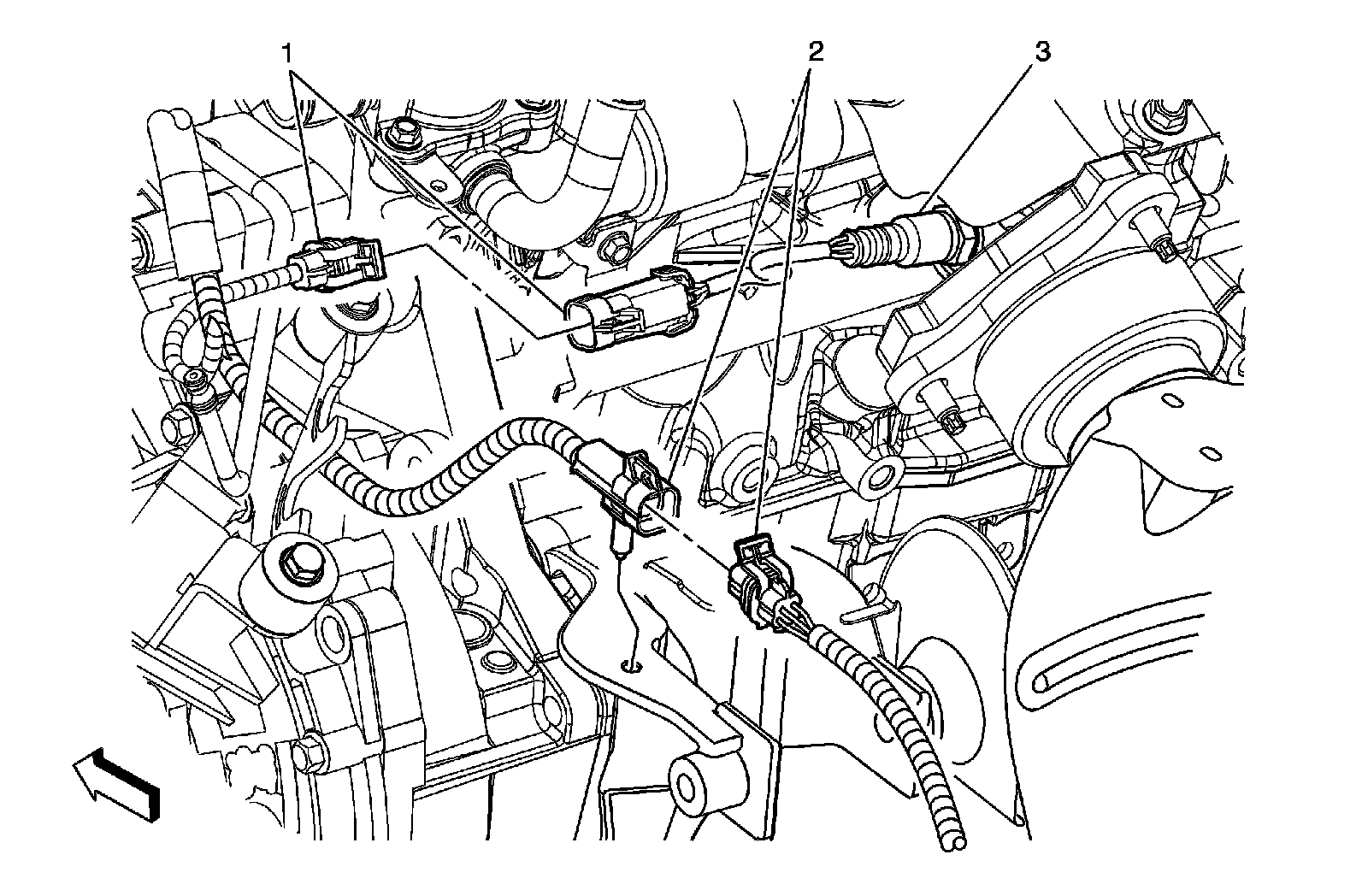

Rear of the Engine

Factory service manual diagram



1 - Heated Oxygen Sensor (HO2S) 1 Connector
2 - Heated Oxygen Sensor (HO2S) 2 Connector
3 - Heated Oxygen Sensor (HO2S) 1

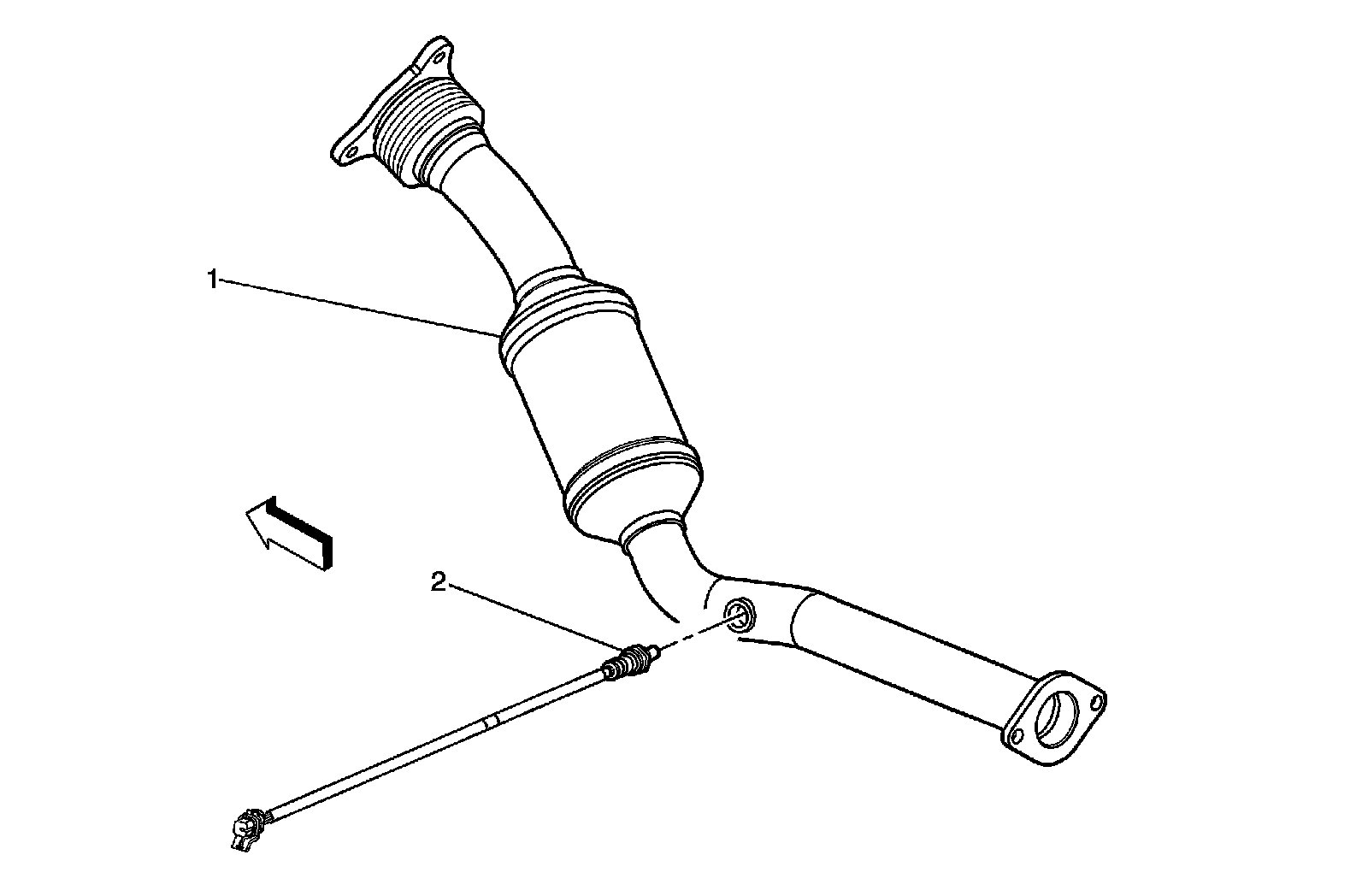

HO2S 2

Factory service manual diagram



1 - Catalytic Converter
2 - Heated Oxygen Sensor (HO2S) 2

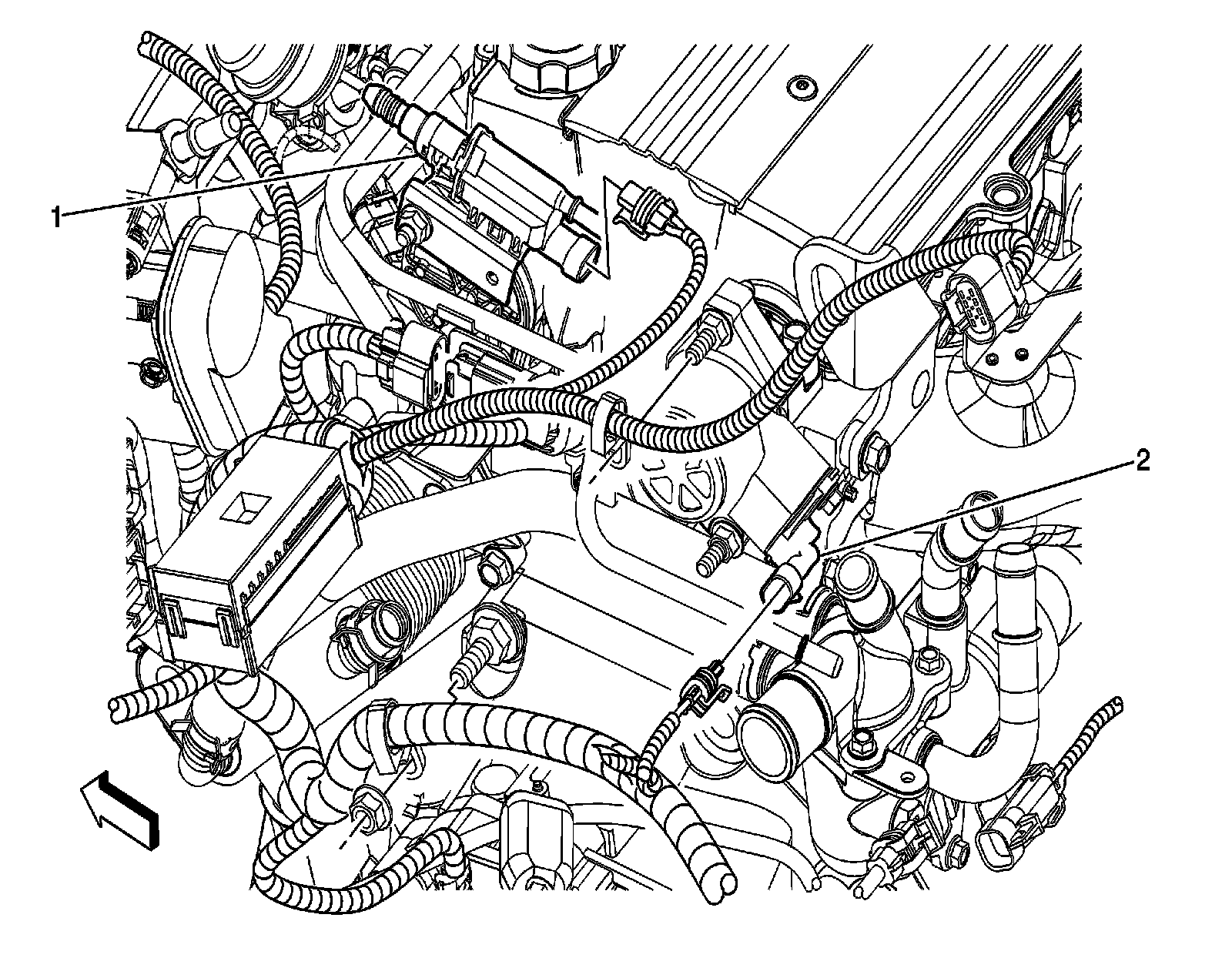

Upper Left Side of the Engine

Factory service manual diagram



1 - Evaporative Emission (EVAP) Canister Purge Solenoid
2 - Camshaft Position (CMP) Sensor

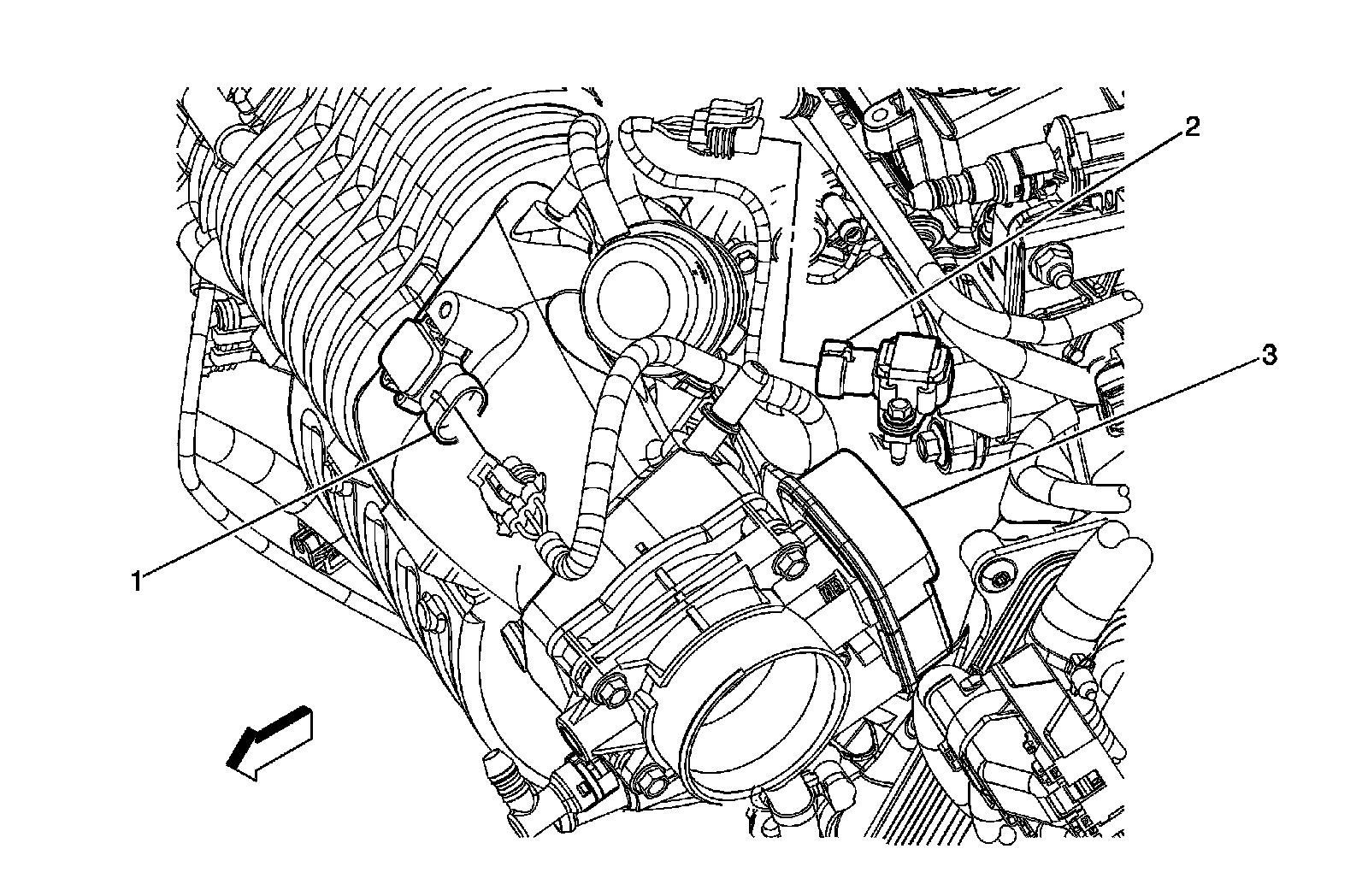

Top Left Side of the Engine

Factory service manual diagram



1 - Super Charge Inlet Pressure (SCIP) Sensor
2 - Barometric Pressure (BARO) Sensor
3 - Throttle Body

Left Front of the Engine

Factory service manual diagram



1 - Super Charge Inlet Pressure (SCIP) Sensor
2 - Throttle Body

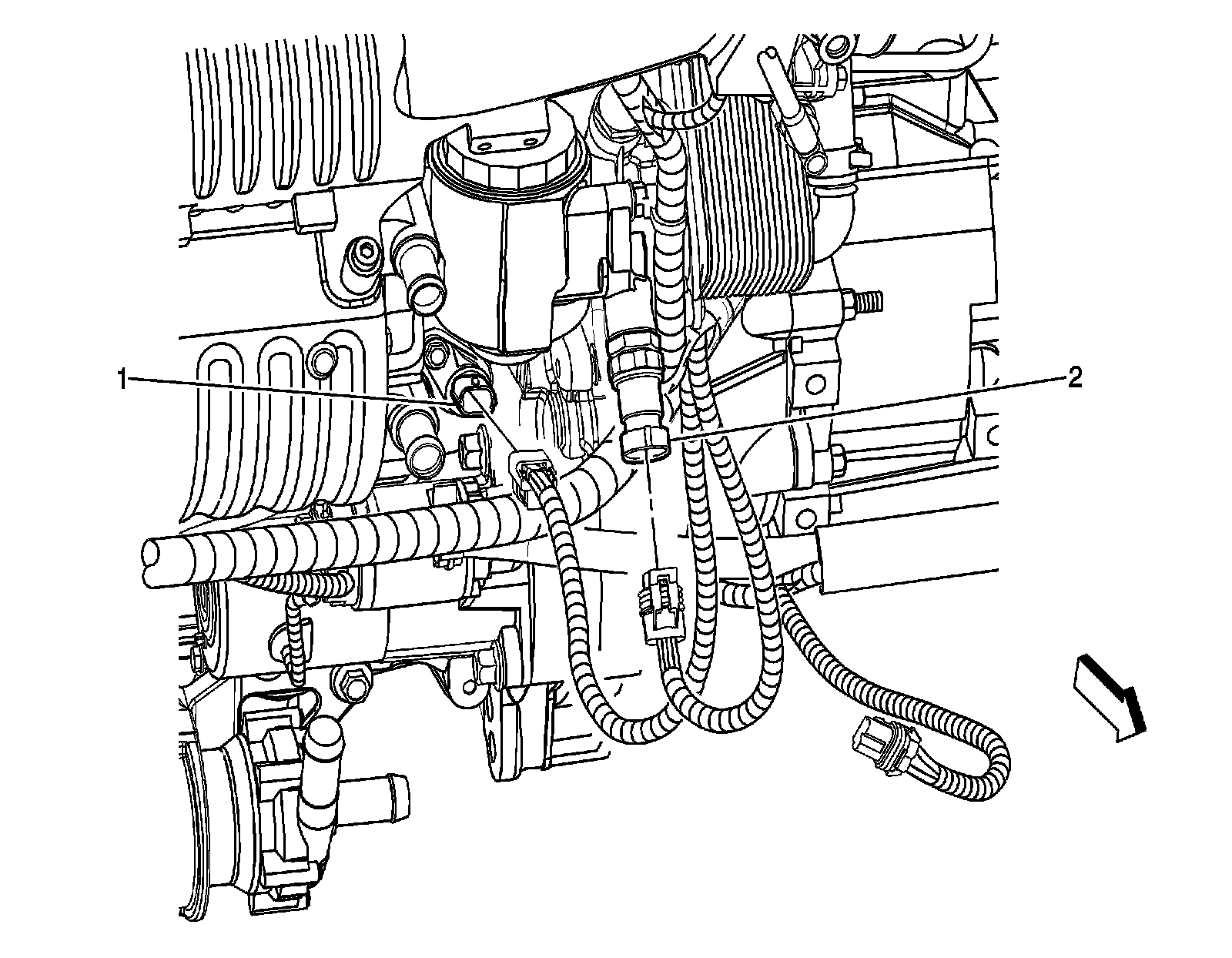

Front of the Engine

Factory service manual diagram



1 - Crankshaft Position (CKP) Sensor
2 - Engine Oil Pressure (EOP) Switch

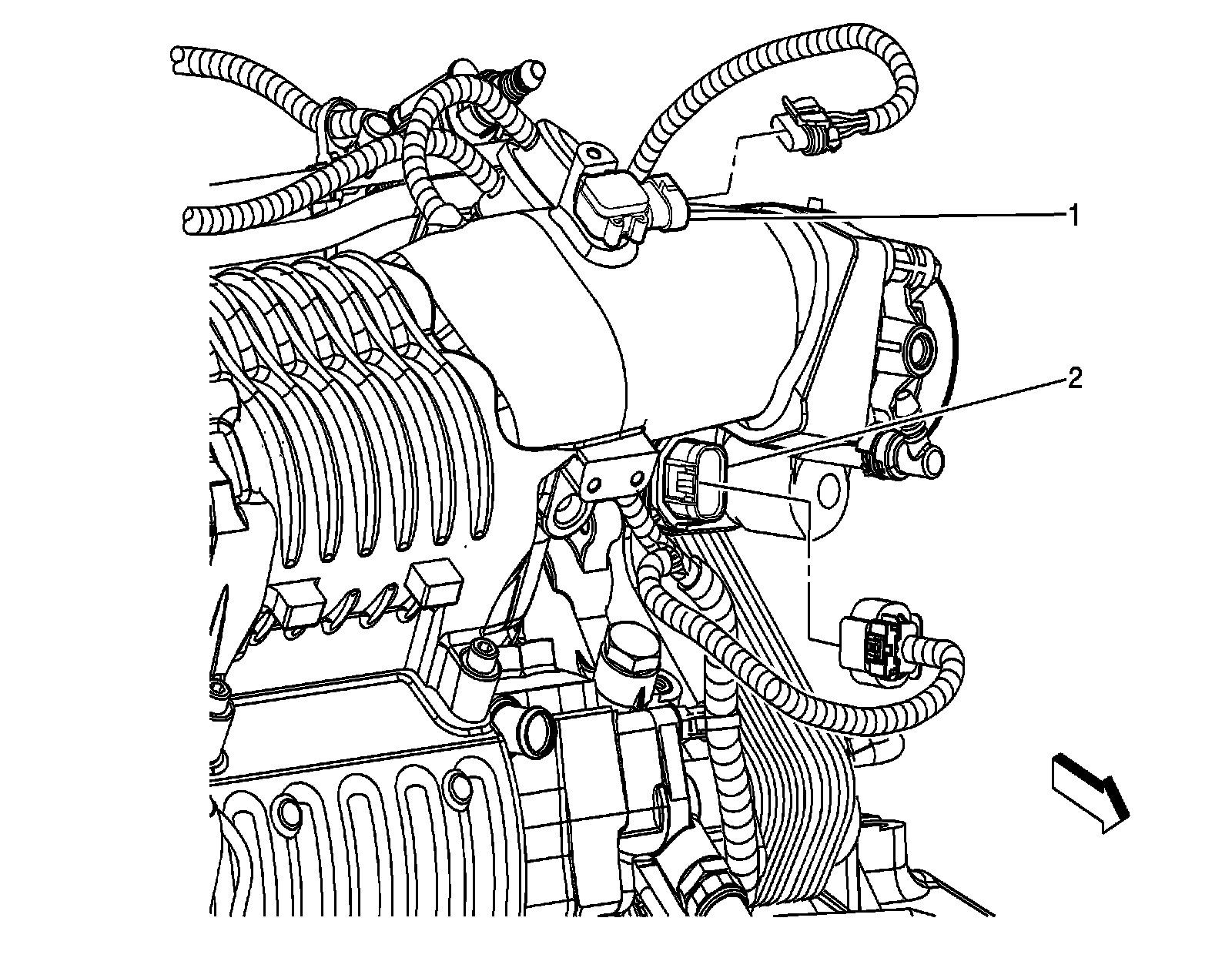

Lower Front of the Engine

Factory service manual diagram



1 - Knock Sensor (KS) Connector
2 - Supercharger Intercooler Coolant Pump

Lower LF of the Passenger Compartment (2.0L)

Factory service manual diagram



1 - Accelerator Pedal Position (APP) Sensor
2 - C220

Right Rear Side Under Vehicle

Factory service manual diagram



1 - C406
2 - Fuel Tank Pressure Sensor
3 - Evaporative Emission (EVAP) Canister Vent Solenoid

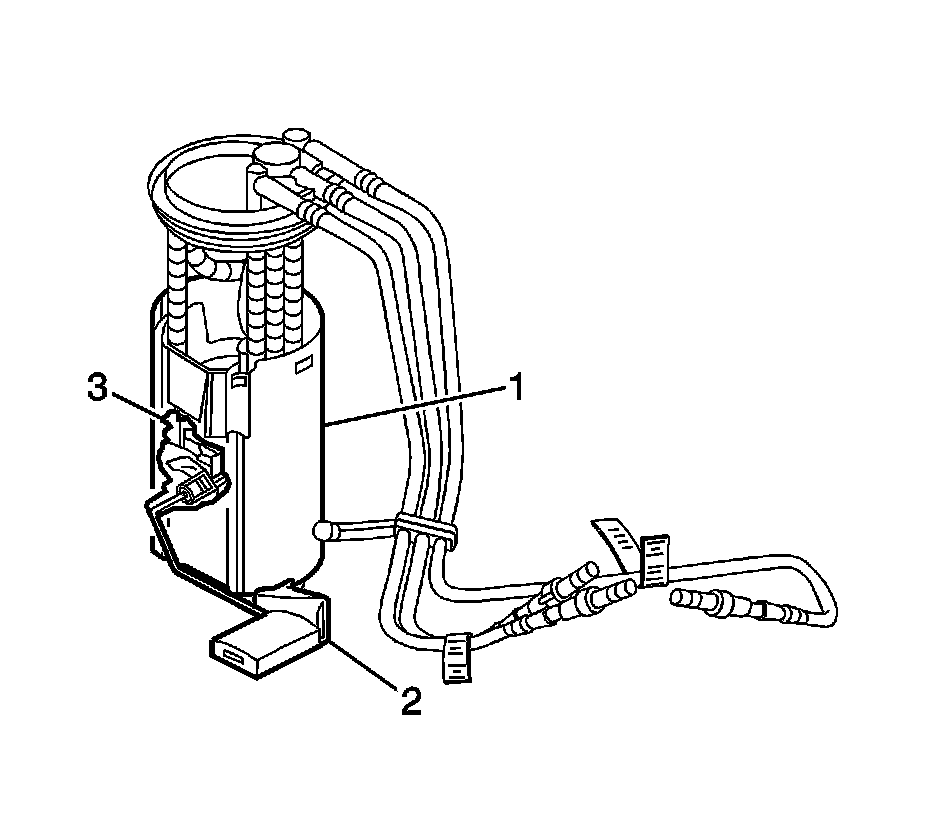

Fuel Pump and Sender Assembly

Factory service manual diagram



1 - Fuel Pump and Sender Assembly
2 - Fuel Pump Strainer
3 - Fuel Level Sensor

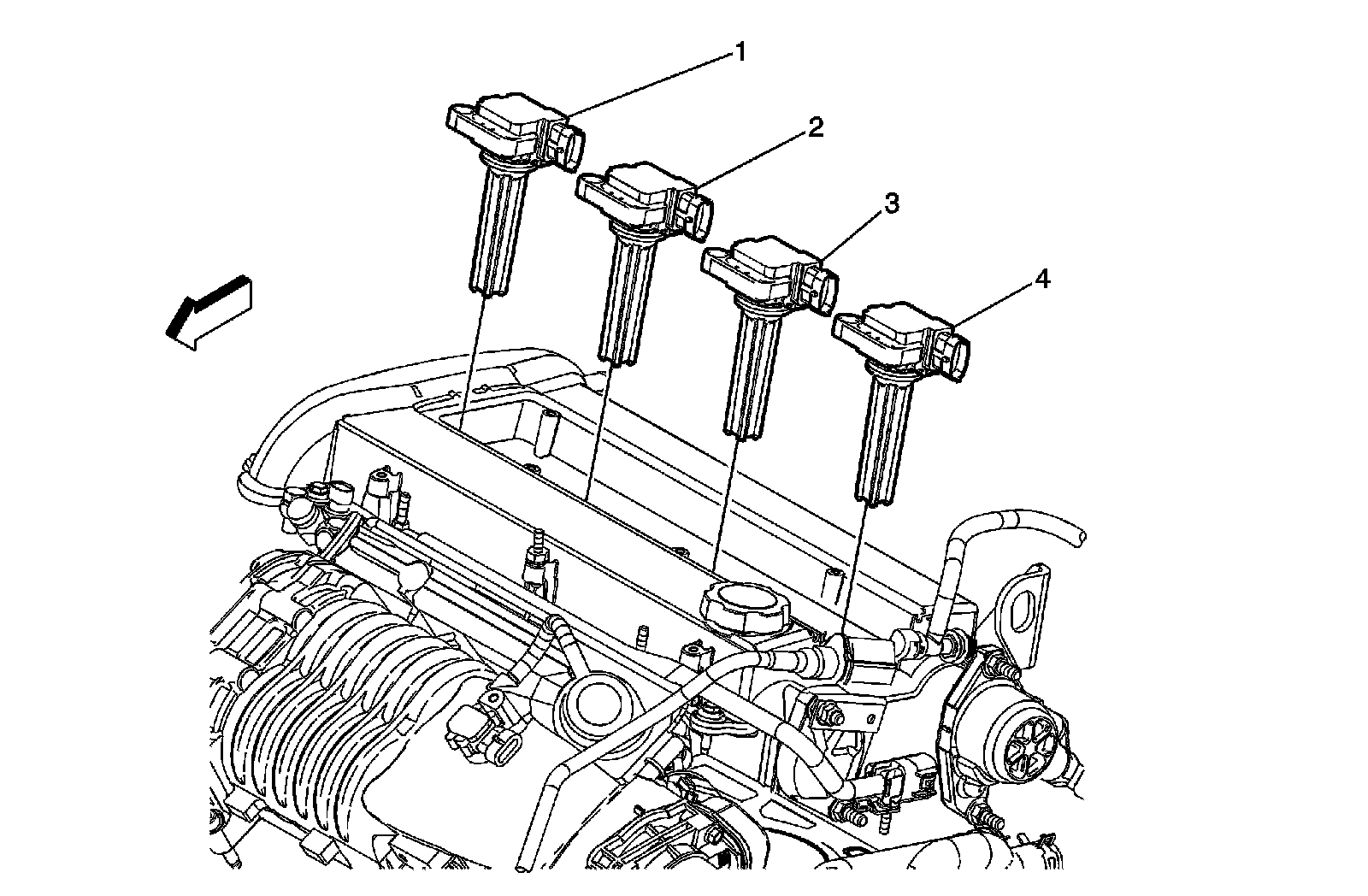

Top of the Engine

Factory service manual diagram



1 - Ignition Coil 1
2 - Ignition Coil 2
3 - Ignition Coil 3
4 - Ignition Coil 4

Top Front of the Engine

Factory service manual diagram



1 - Fuel Injector 1
2 - Fuel Injector 2
3 - Fuel Injector 3
4 - Fuel Injector 4
