2007 Saturn ION L4-2.0L SCFACTORY OEM SERVICE PROCEDURE
Front Camber Adjustment
Front Camber Adjustment
1. Loosen both strut to knuckle nuts just enough to allow for movement.
2. If the strut has not been modified previously, perform the following steps before continuing with the wheel alignment:
1. Disconnect the strut from the knuckle.

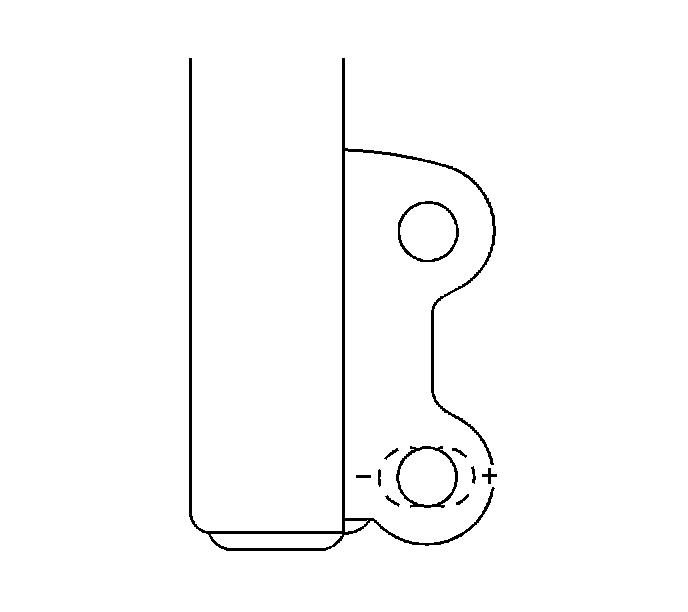

2. File the lower hole until the groove of the stamped ring around the hole.
3. Connect the strut to the knuckle.

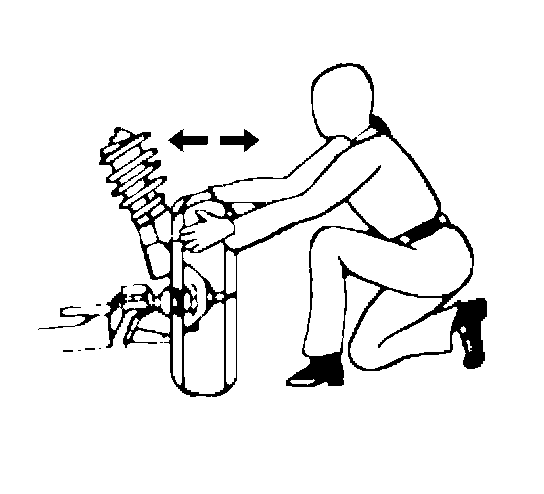

3. Adjust the camber to specification by moving the top of the wheel in or out.
