2007 Saturn ION L4-2.0L SCFACTORY OEM SERVICE PROCEDURE

Steering Column

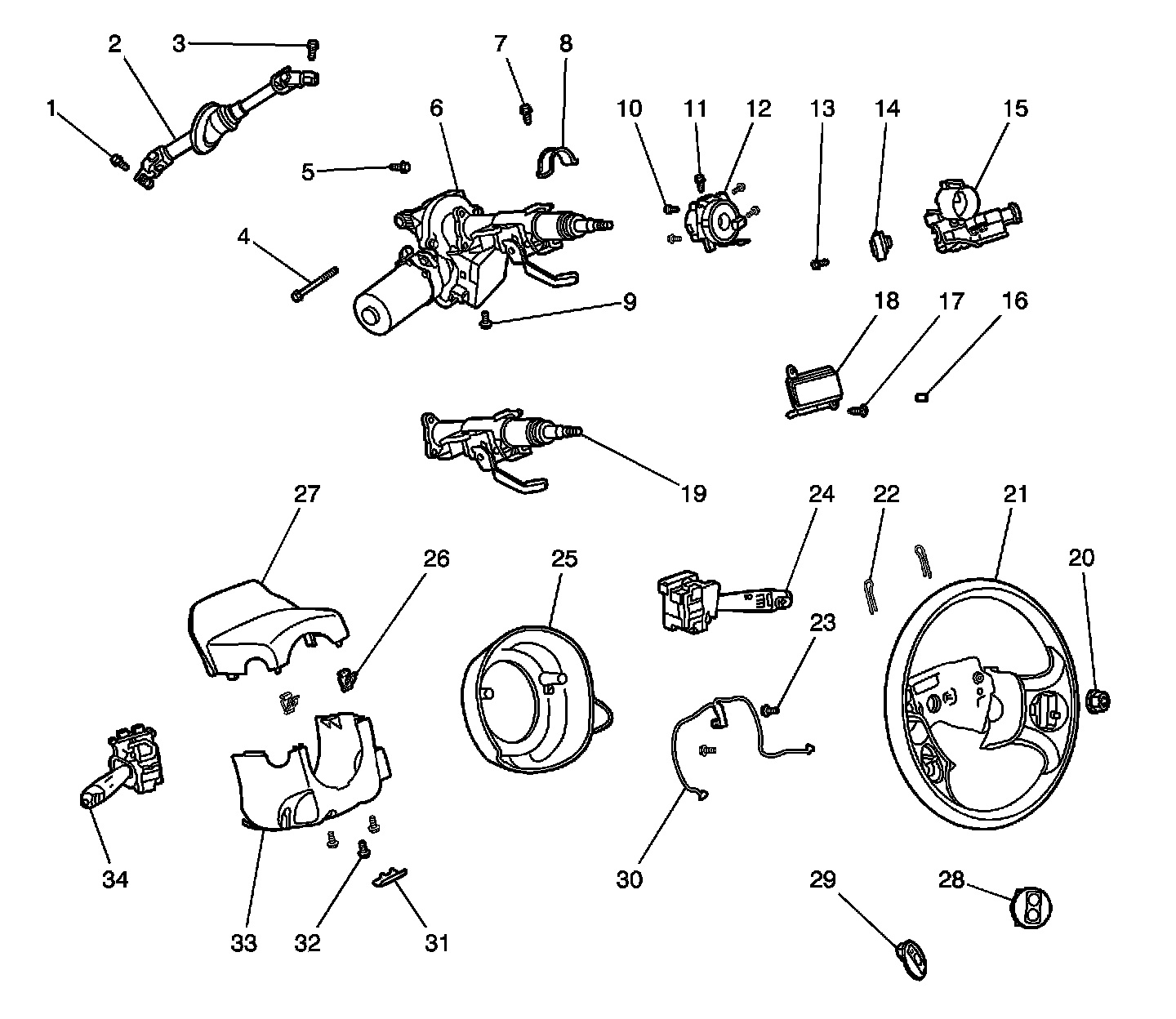

Steering Column Disassembled View

Steering Column Disassembled View:

Factory service manual diagram




1 - Lower Intermediate Steering Shaft Bold
2 - Intermediate Steering Shaft Assembly
3 - Upper Intermediate Steering Shaft Bolt
4 - Lower Steering Column Support Bracket Bolt
5 - Lower Steering Column Jacket Bolt
6 - Steering Column Assembly
7 - Ignition / Start Switch Clamp Bolt
8 - Ignition / Start Switch Clamp
9 - Upper Steering Column Support Bracket Bolt
10 - Turn Signal Switch Bracket Screw
11 - Turn Signal Switch Bracket Screw
12 - Inflatable Restraint Steering Wheel Module Coil Assembly
13 - Ignition / Start Switch Screw
14 - Ignition / Start Switch Assembly
15 - Ignition / Start Switch Housing
16 - Spring
17 - Ignition Lock Cylinder Control Solenoid Screw
18 - Ignition Lock Cylinder Control Solenoid Assembly
19 - Steering Column Jacket Assembly
20 - Steering Wheel Nut
21 - Steering Wheel Assembly
22 - Inflatable Restraint Steering Wheel Module Retainer
23 - Steering Wheel Shroud Screw
24 - Wiper / Washer Switch Assembly
25 - Steering Wheel Shroud
26 - Lower Trim Cover Clip
27 - Upper Trim Cover
28 - Cruise Control Resume Switch Assembly
29 - Cruise Control Switch Assembly
30 - Harness Assembly
31 - Lower Trim Cover Plug
32 - Lower Trim Cover Screw
33 - Lower Trim Cover
34 - Headlamp / Dimmer / Park / Turn Signal Switch Assembly
