2007 Saturn ION L4-2.0L SCFACTORY OEM SERVICE PROCEDURE
Cruise Control: Locations
Cruise Control Component Views

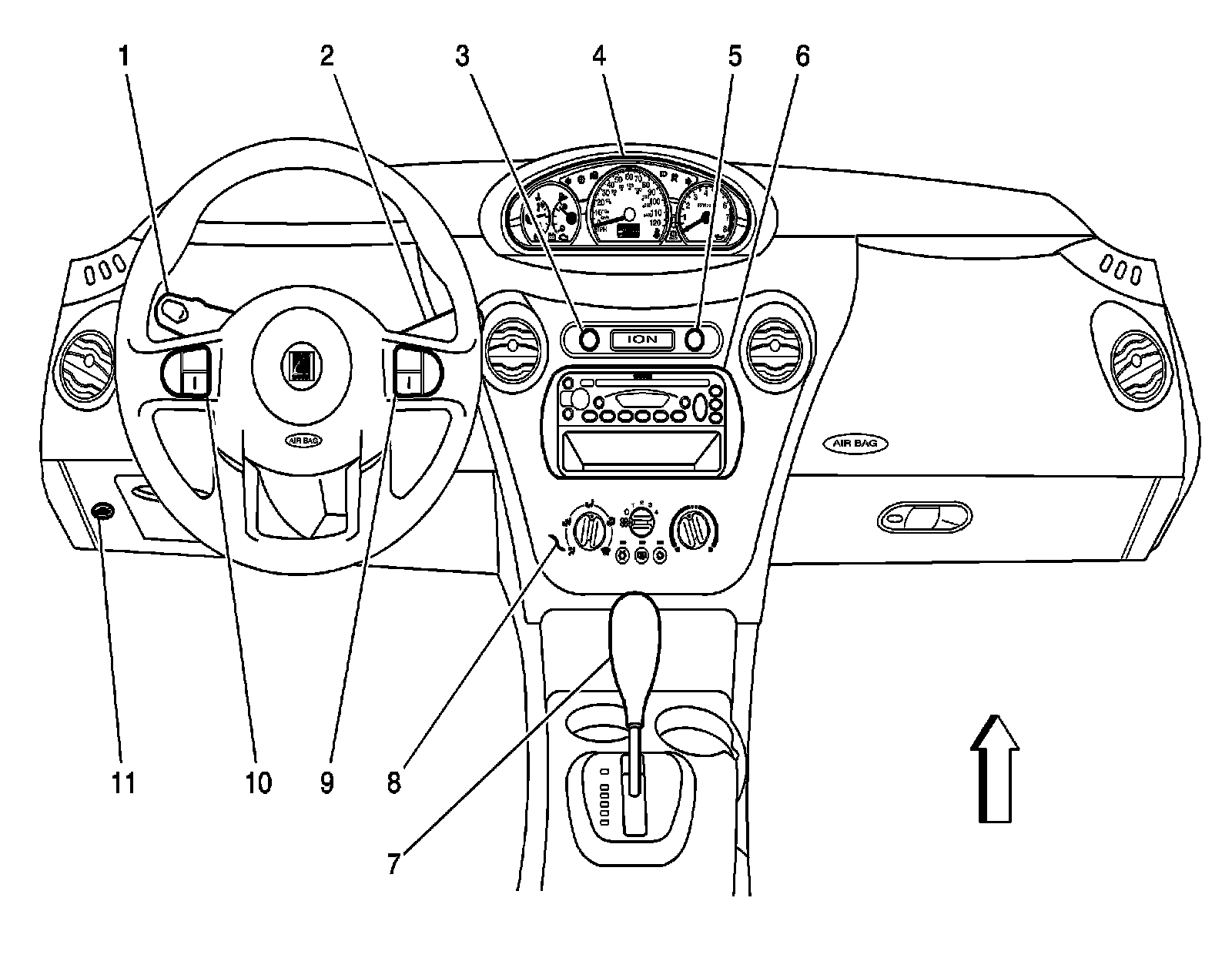

Instrument Panel
1 - Turn Signal/Multifunction Switch
2 - Windshield Wiper/Washer Switch
3 - Hazard Switch
4 - Instrument Panel Cluster (IPC)
5 - Traction Control Switch (NW7)
6 - Radio
7 - A/T Shifter (MN5)
8 - HVAC Control Assembly
9 - Steering Wheel Controls - Right (K34)
10 - Steering Wheel Controls - Left (K34)
11 - Rear Compartment Lid Release Switch

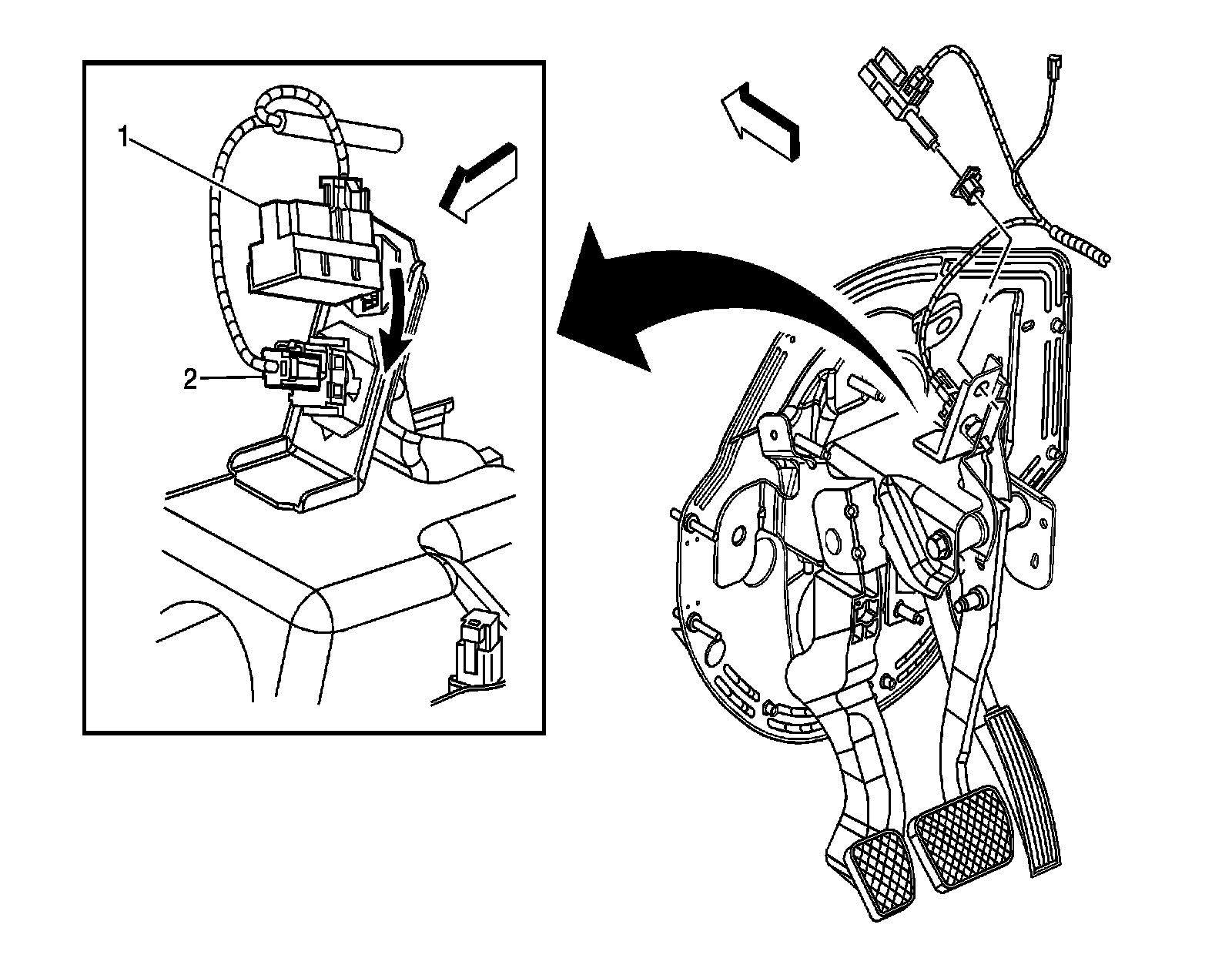

Lower Left Front of the I/P
1 - Stop Lamp Switch - Upper
2 - Stop Lamp Switch - Lower

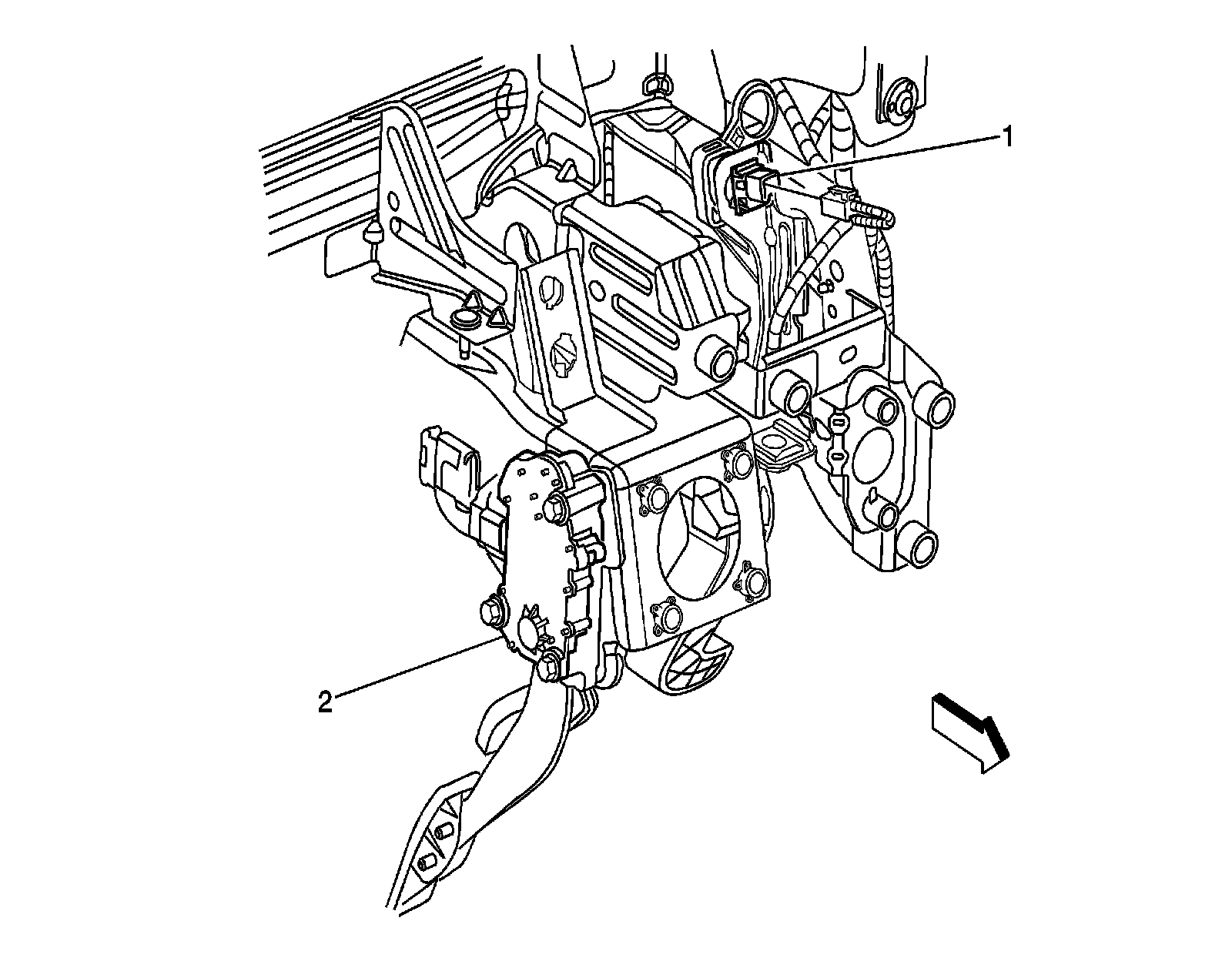

Behind the Right Side of the I/P
1 - Clutch Pedal Position (CPP) Switch (K34)
2 - Accelerator Pedal Position (APP) Switch
