2006 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE
Removal Procedure
WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure in Engine Electrical.
- Disconnect the cruise control module harness connector.

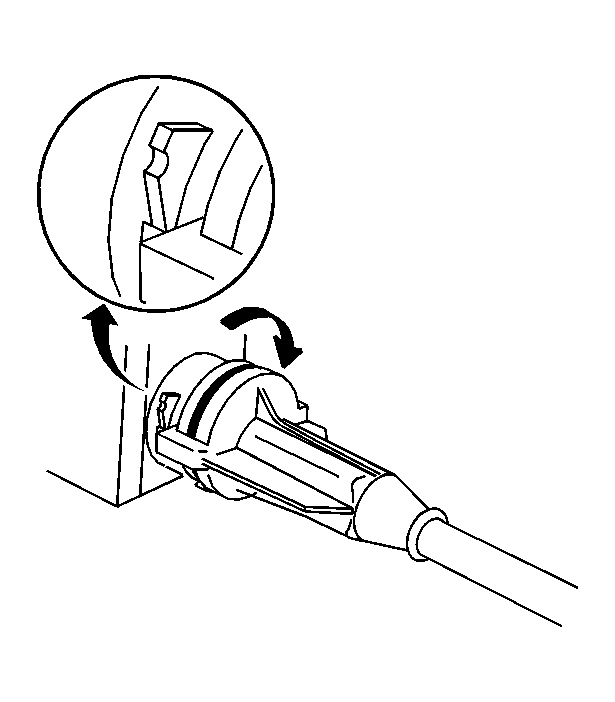

- Disconnect the cruise control cable from the cruise control module by turning the cable 1/4 turn counterclockwise.
- Disconnect the cruse control cable (1) from the accelerator pedal.
- Remove the nuts (2) from the cruise control module.
- Remove the cruse module from the vehicle.
