2006 Saturn Ion Red LineFACTORY OEM SERVICE PROCEDURE

Installation Procedure

Fig 1: View Of EBCM & BPMV

Courtesy of GENERAL MOTORS CORP.

Clean the sealing surface of the BPMV, with denatured alcohol and a clean shop cloth.
Install the EBCM (1) to the BPMV (2). Use care when aligning the EBCM (1) to the BPMV electrical terminals (3).

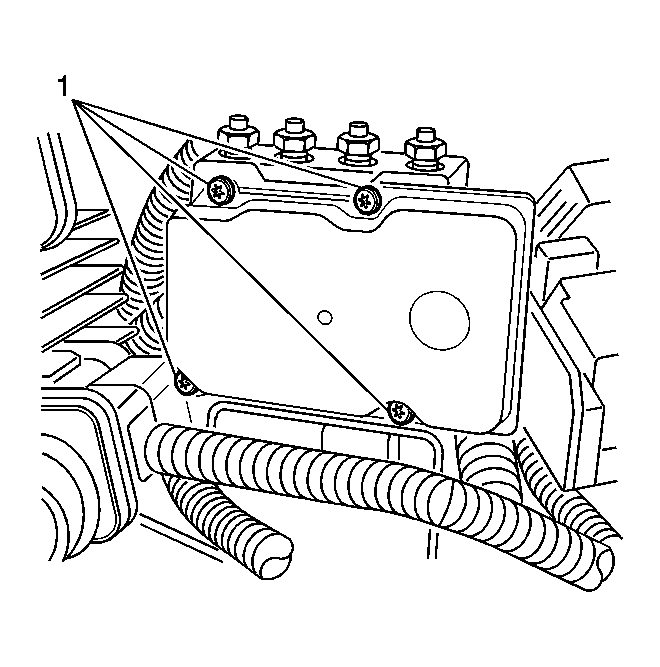

Fig 2: View Of EBCM-To-BPMV Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
