2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

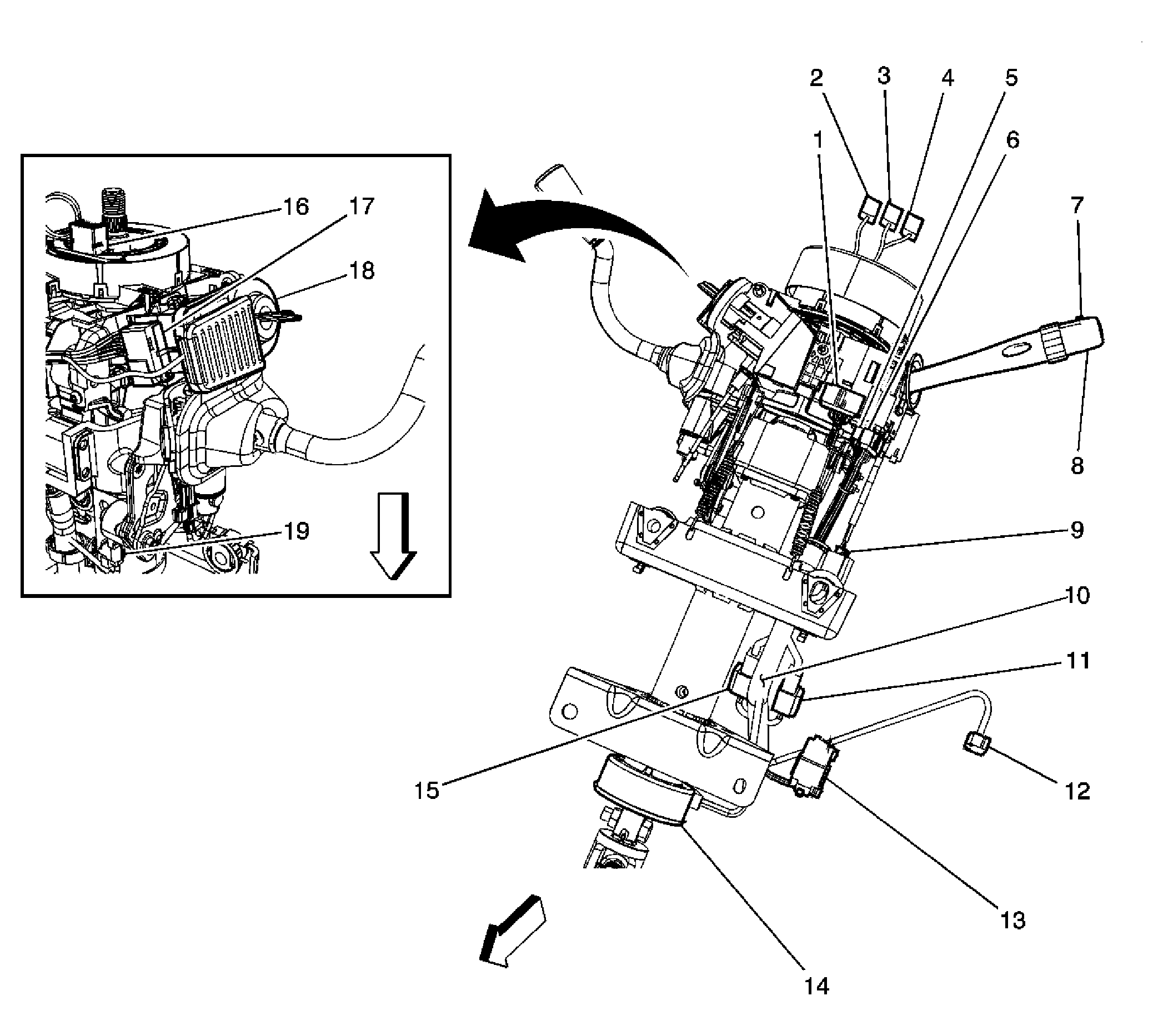

Automatic Transmission Shift Lock Control Component Views
| Callout | Component Name |
|---|---|
| 1 | Turn Signal/Multifunction Switch C3 |
| 2 | C279 Inflatable Restraint Steering Wheel Module Coil to Steering Wheel Harness |
| 3 | Inflatable Restraint Steering Wheel Module Coil C1 Connector |
| 4 | Inflatable Restraint Steering Wheel Module Coil C2 Connector |
| 5 | Turn Signal/Multifunction Switch C2 |
| 6 | Turn Signal/Multifunction Switch C1 |
| 7 | Rear Wiper/Washer Switch |
| 8 | Turn Signal/Multifunction Switch |
| 9 | Turn Signal/Multifunction Switch C4 |
| 10 | S277 and S279 |
| 11 | C277 Inflatable Restraint Steering Wheel Module Coil to Steering Column Harness |
| 12 | C275 Inflatable Restraint Steering Wheel Module Coil to Body Harness |
| 13 | C201 Steering Column Harness to I/P Harness |
| 14 | Steering Wheel Speed Position Sensor (JL4) |
| 15 | Theft Deterrent Exciter Module Connector (Pigtail) |
| 16 | Inflatable Restraint Steering Wheel Module Coil |
| 17 | Theft Deterrent Exciter Module |
| 18 | Ignition Switch |
| 19 | A/T Shift Lock Control Solenoid Connector |
