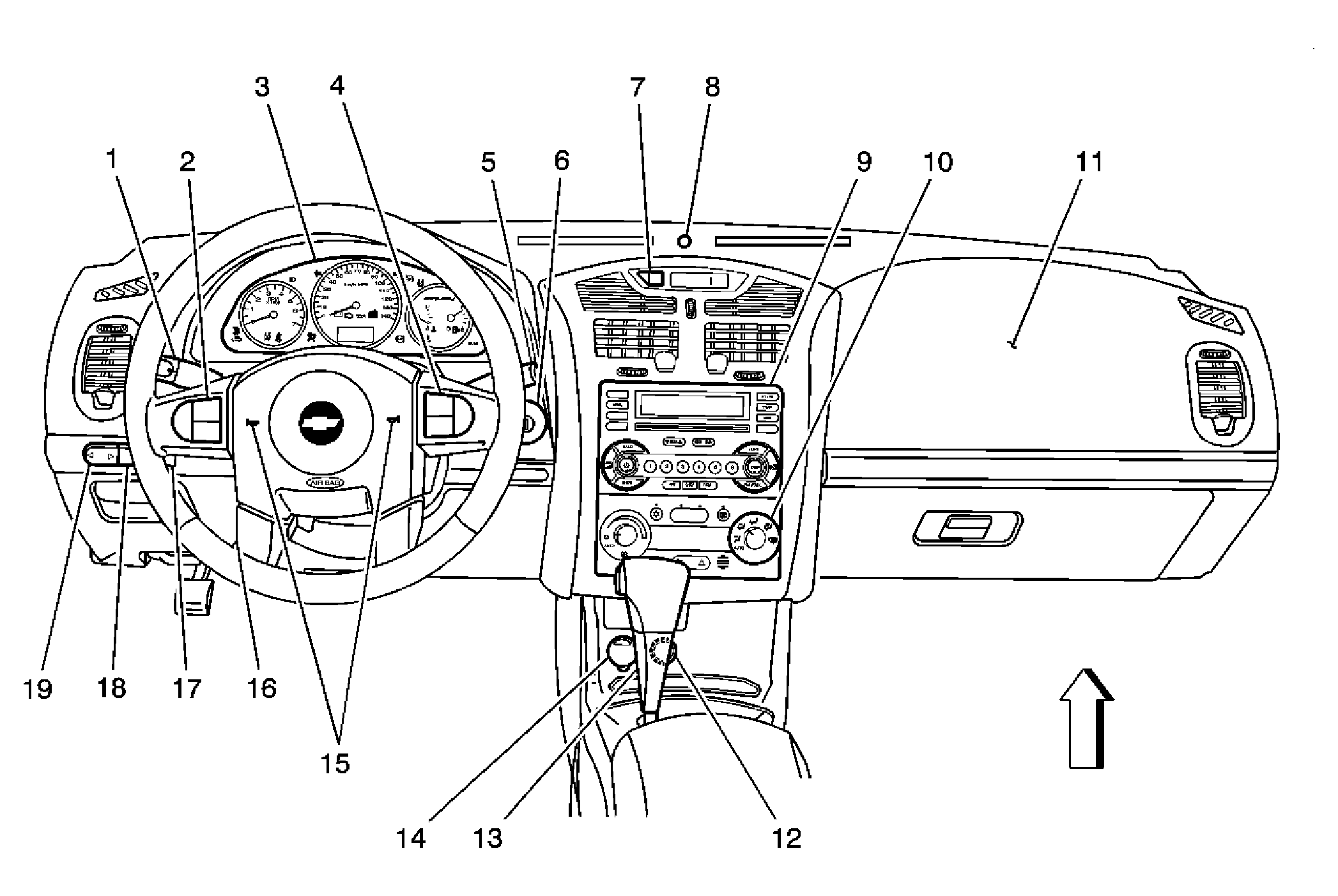

Fig 1: Instrument Panel Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right
5	Windshield Wiper/Washer Switch
6	Ignition Switch
7	Hazard Switch
8	Ambient Light Sensor
9	Radio
10	HVAC Control Module
11	Inflatable Restraint I/P Module
12	Traction Control Switch (NW7, NW9), Auxiliary Power Outlet - Front (w/o NW7, NW9)
13	Transmission Shifter
14	Cigar Lighter
15	Horn Buttons/Inflatable Restraint Steering Wheel Module
16	Data Link Connector (DLC)
17	Fog Lamp Switch (T96)
18	Dimmer Switch
19	Adjustable Pedals Position Switch (JF4)

Fig 2: Power and Grounding Component Views - Right Side of the Instrument Panel and Shifter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio, C1
2	Body Control Module (BCM), C2
3	HVAC Control Module, C2
4	HVAC Control Module, C1
5	Inflatable Restraint I/P Module Connector
6	C207
7	G201
8	G203
9	Body Control Module (BCM), C3
10	Body Control Module (BCM), C1
11	Body Control Module (BCM)
