2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE

Removal Procedure

WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

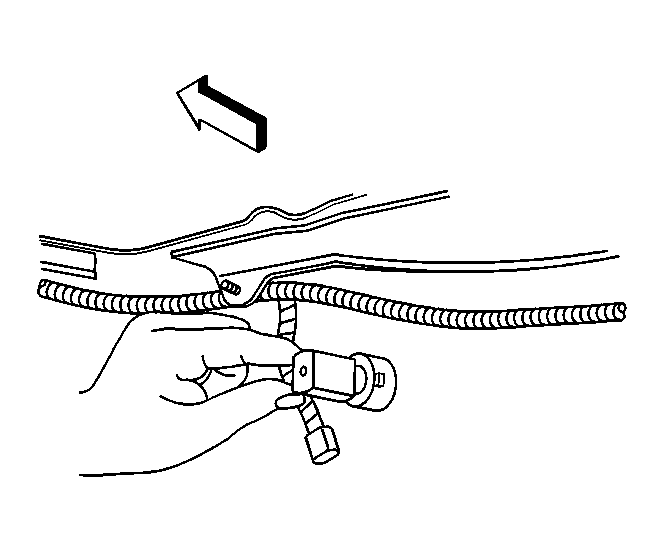

Fig 1: View Of Rear Object Sensor Electrical Connectors

GM489061

Courtesy of GENERAL MOTORS CORP.

Remove rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Buick) or Rear Bumper Fascia Replacement (Chevrolet) or Rear Bumper Fascia Replacement (Pontiac) .

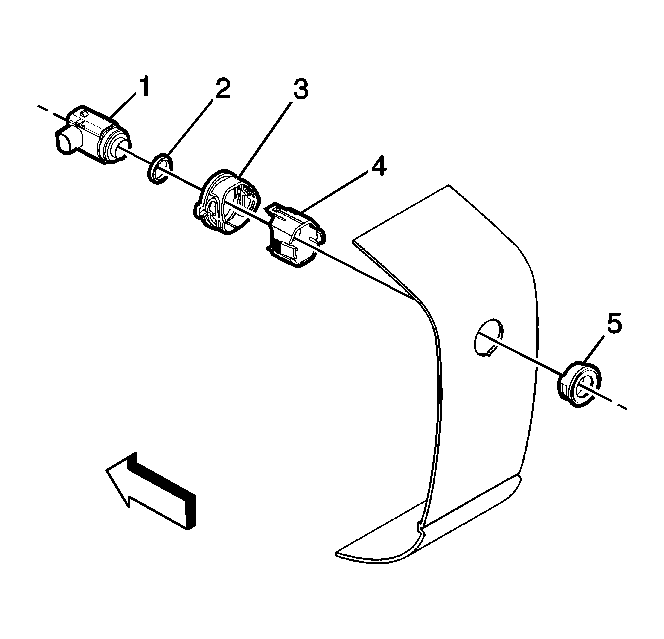

Fig 2: View Of Rear Object Sensor Assembly

GM500502

Courtesy of GENERAL MOTORS CORP.

Lift the locking tabs on the housing (4) and remove the rear object sensor (1).

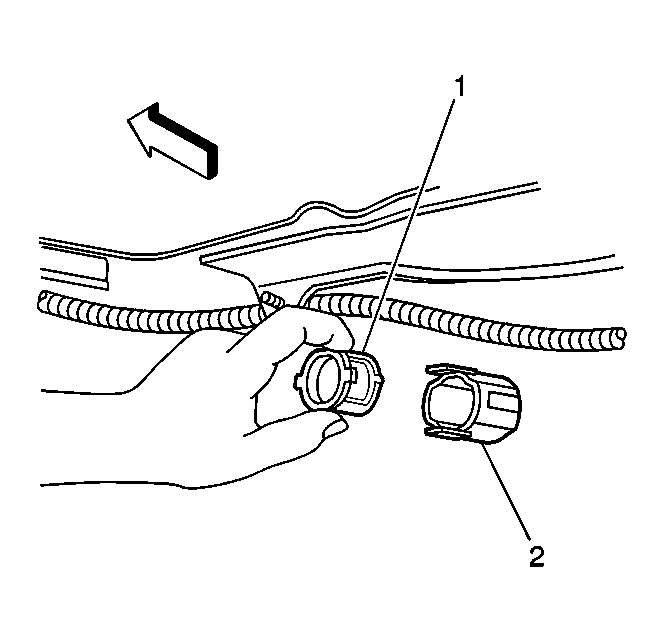

Fig 3: View Of Spring & Housing

GM489063

Courtesy of GENERAL MOTORS CORP.

Squeeze the spring (1) and remove it from the housing (2).

Fig 4: View Of Rear Object Sensor Housing

GM489064

Courtesy of GENERAL MOTORS CORP.

Release the tabs on the housing and remove.

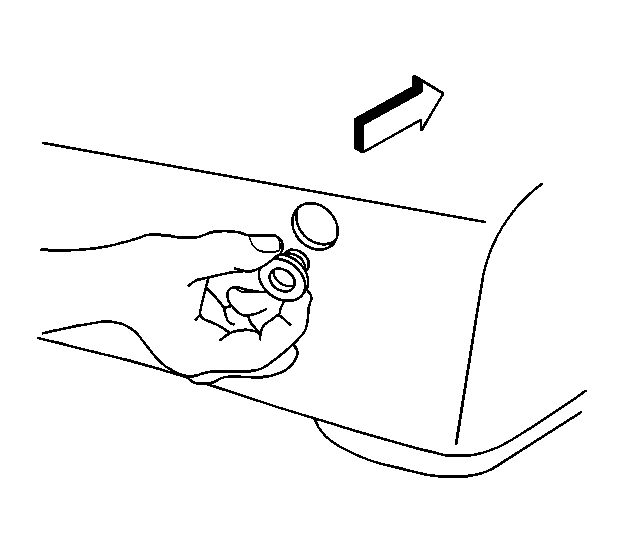

Fig 5: Painting Rear Object Sensor Bezel

GM489066

Courtesy of GENERAL MOTORS CORP.

Remove the rear object sensor bezel from the rear fascia.
