2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
- Paint the new rear object sensor. Refer to Basecoat/Clearcoat Paint Systems .
- Inspect the paint thickness to ensure it does not exceed 6 mm using a paint thickness gauge suitable for non-ferrous metals.

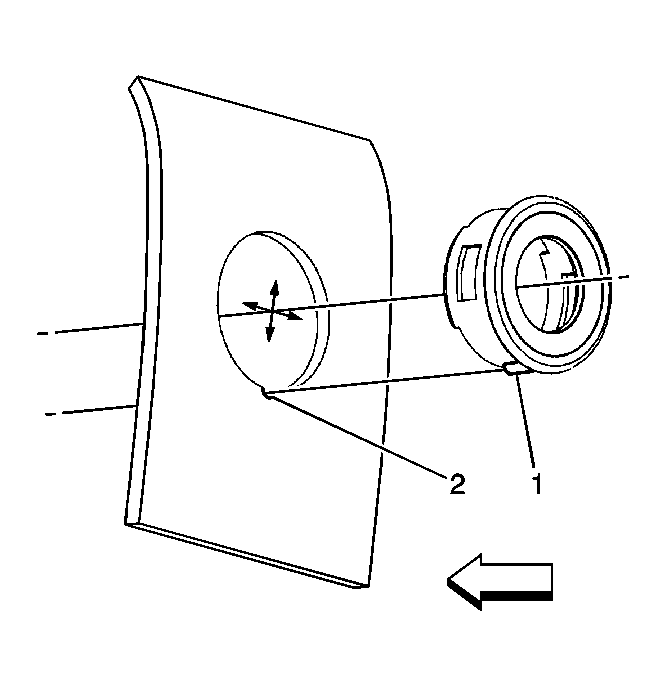

- Align the keyhole (2) with the key (1) and press the rear object sensor bezel flush to the fascia.

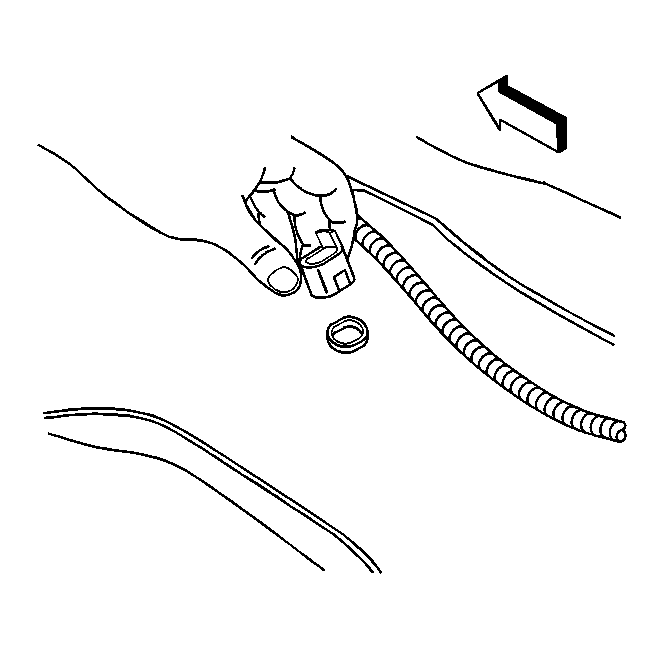

- Install the housing to the cutouts on the bezel through the back side of the fascia.
IMPORTANT:
Do not refinish previously painted sensors.
IMPORTANT:
The spring keys must be on the top and bottom of the housing.
