2005 Saturn Relay AWDFACTORY OEM SERVICE PROCEDURE
Body Control Module Replacement
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Body Control Module Replacement

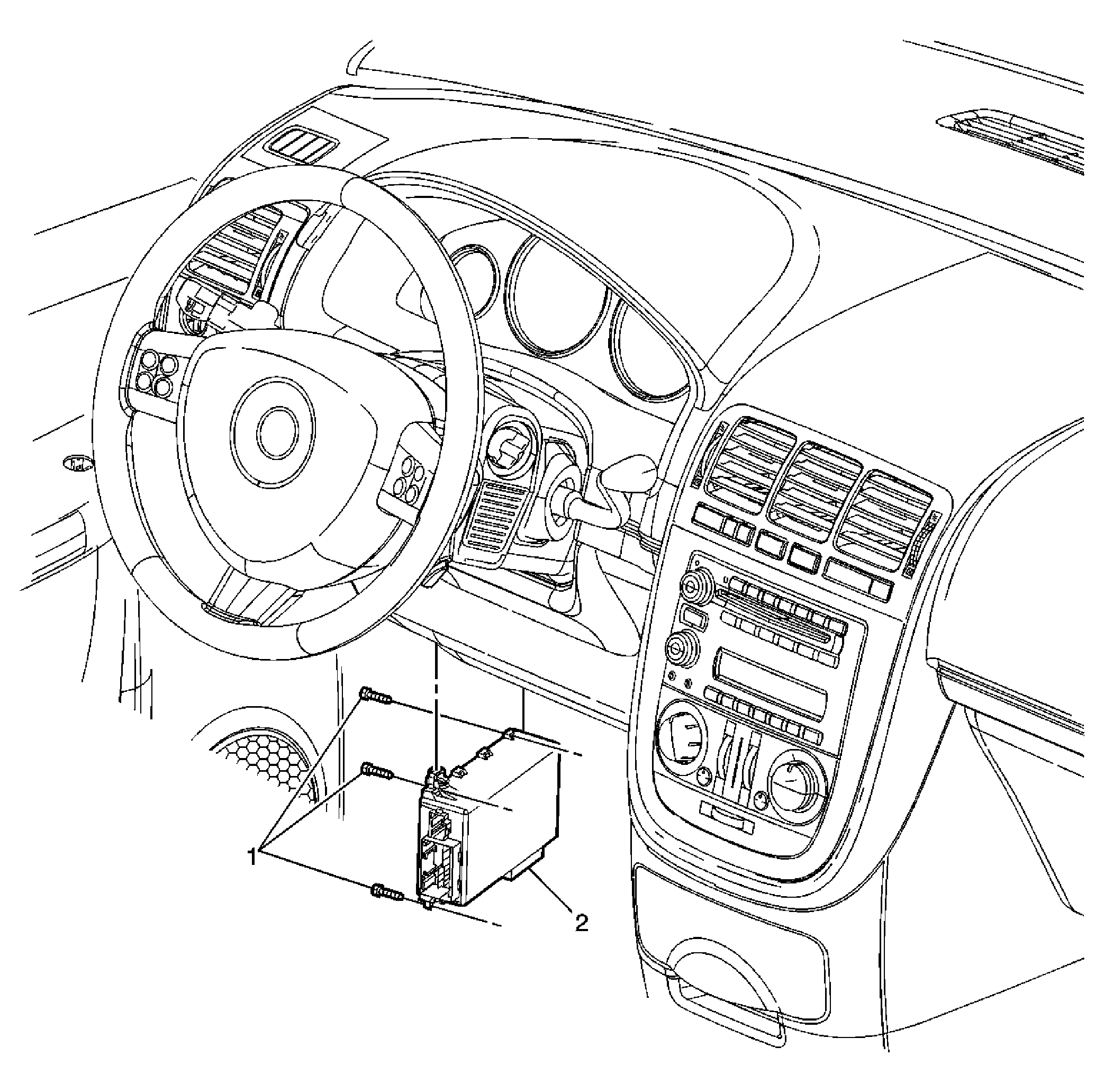

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the drivers side instrument panel (I/P) insulator. Refer# to Instrument Panel Insulator Panel Replacement . |
|
| 1 | Body Control Module Screws (Qty: 4)
NOTE:
Refer# to Fastener Notice
.
Tighten: 2 N.m (18 lb ft) |
| 2 | Body Control Module Tip:
|
